HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1����-� 0002 1����-�,��(�-� ����) 0003 1����, ���-�� �-�����-� 0004 1����, ������� �-�����-�

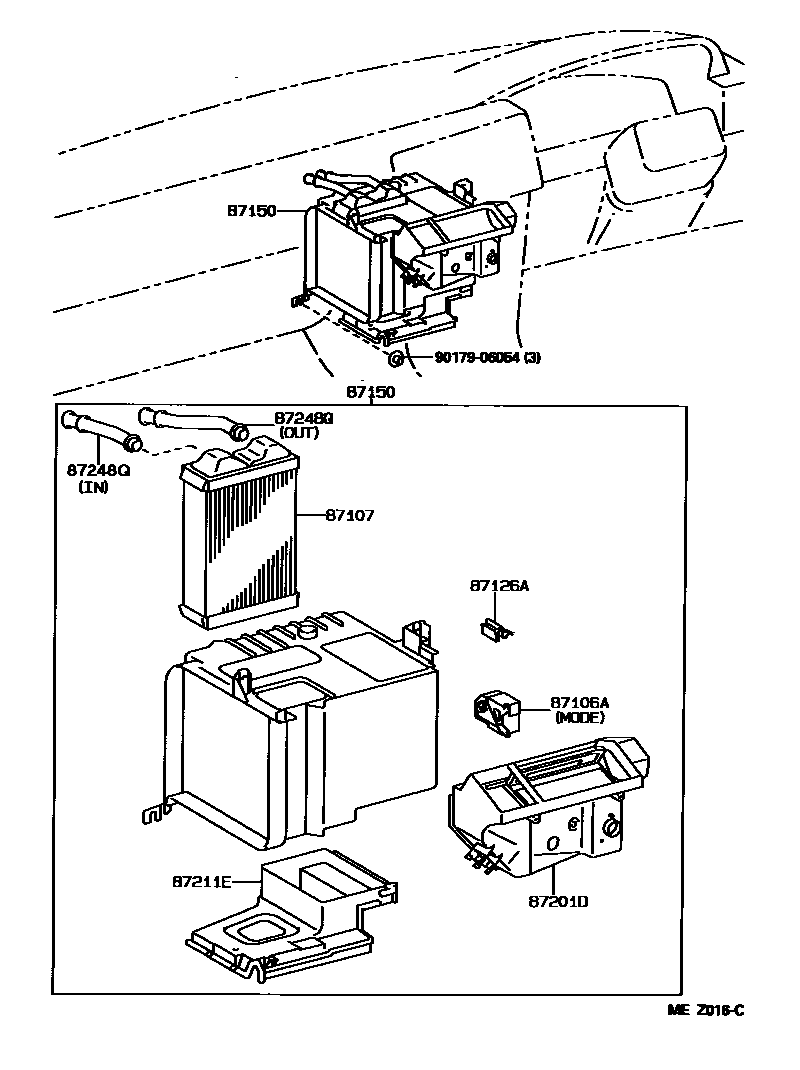

87106ASERVO SUB-ASSY, DAMPER

main87106-12080iAE11#,CE11#..GT,SEVIN199704-200008

main87106-12090iAE11#..SCRU,SEVIN; CE11#..SEVIN199508-199605

main87106-12110iAE11#,CE11#..GT,SEVIN199704-200008

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-12380iAE11#,EE111199505-199605

main87107-12430iCE11#199505-199605

main87107-12470iAE11#,CE11#,EE111199505-199605

main87107-12500iAE11#,CE11#,EE111199605-199704

main87107-12510iAE11#,CE11#,EE111199605-199704

87126ACLAMP, HEATER CONTROL

main87126-12050iAE11#,CE11#..SCRU,SEVIN; AE110,114,CE11#,EE111..LX,XEVIN199505-199704

main87126-13010×2iAE11#,CE11#..GT,SEVIN; AE110,114,CE11#,EE111..LX,XEVIN199704-200008

87150RADIATOR ASSY, HEATER

main87150-12730iAE110,114,EE111..LX,XEVIN199505-199605

main87150-12731iAE110,114,CE11#,EE111..LX,XEVIN199605-199704

main87150-12740iCE11#..LX,XEVIN199505-199605

main87150-12750iAE110,114,CE11#,EE111..LX,XEVIN199505-199605

main87150-12760iAE11#..SCRU,SEVIN199505-199605

main87150-12761iAE11#,CE11#..SCRU,SEVIN199605-199704

main87150-12770iCE11#..SEVIN199505-199605

main87150-12780iAE11#,CE11#..SCRU,SEVIN199505-199605

main87150-12781iAE11#,CE11#..SCRU,SEVIN199605-199704

main87150-12790iAE11#..SCRU,SEVIN199505-199605

main87150-12791iAE11#,CE11#..SCRU,SEVIN199605-199704

main87150-12800iCE11#..SEVIN199505-199605

main87150-12810iAE11#,CE11#..SCRU,SEVIN199505-199605

main87150-12811iAE11#,CE11#..SCRU,SEVIN199605-199704

main87150-12820iAE110,114,CE11#,EE111..LX,XEVIN199704-200008

main87150-12830iAE110,114,CE11#,EE111..LX,XEVIN199704-200008

main87150-12840iAE11#,CE11#..GT,SEVIN199704-200008

main87150-12850iAE11#,CE11#..GT,SEVIN199704-200008

main87150-1A070iAE11#,CE11#..GT,SEVIN199704-199906

main87150-1A071iAE11#,CE11#..GT,SEVIN199906-200008

main87150-1A080iAE11#,CE11#..GT,SEVIN199704-199906

main87150-1A081iAE11#,CE11#..GT,SEVIN199906-200008

87201DDUCT SUB-ASSY, AIR

main87201-12480iAE11#,CE11#,EE111199704-200008

main87201-12490iAE11#,CE11#,EE111199704-200008

main87201-12510iAE11#,CE11#..GT,SEVIN199704-200008

main87201-12520iAE11#,CE11#..SCRU,SEVIN199505-199704

87211EDUCT, AIR

main87211-12160iAE11#,CE11#,EE111199505-199704

main87211-12170iAE11#,CE11#,EE111199505-199704

main87211-12200iAE11#,CE11#..SCRU,SEVIN199505-199704

main87211-12210iAE11#,CE11#,EE111199505-199704

main87211-12220iAE11#,CE11#,EE111199704-200008

main87211-12230iAE11#,CE11#..GT,SEVIN199704-200008

main87211-13010iAE11#,CE11#,EE111199704-200008

main87211-13020iAE11#,CE11#..GT,SEVIN199704-200008

87248QPIPE, FRONT HEATER RADIATOR WATER

main87156-12020iAE11#,CE11#,EE111199704-200008

IN

main87156-12030iAE11#,CE11#,EE111199704-200008

OUT

main87156-12040iAE11#,CE11#,EE111199605-199704

main87156-12050iAE11#,CE11#,EE111199704-200008

9017906054

main90179-06054

8 parts on this diagram · 4 diagrams in section
