ELECTRONIC CONTROLED DIESEL (ECD)

85915QRELAY, COMPUTER (FOR DIESEL)

main85915-26010iCE11#199804-200008

89279BCOVER, DIESEL ENGINE CONTROL COMPUTOR

main89279-13020iCE11#199804-200008

89421ESENSOR, VACUUM

main89420-12110iCE11#199804-200008

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-35010iCE11#199804-200008

89424DSENSOR, INLET AIR TEMPERATURE

main89424-12010iCE11#199804-200008

89426BBRACKET, VACUUM SENSOR

main89426-12150iCE11#199804-200008

89454SENSOR, FUEL TEMPERATURE

main89454-60010iCE11#199804-200008

89661ACOMPUTER, ENGINE CONTROL

main89661-1E220iCE113..5F199804-200008

main89661-1E230iCE113..4FC199804-200008

main89661-1E240iCE116199804-200008

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-12130iCE11#199804-200008

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12060iCE11#199804-200008

9011906539

main90119-06539

9015970003

main90159-70003

9043012221

main90430-12221

9331915010

main93319-15010

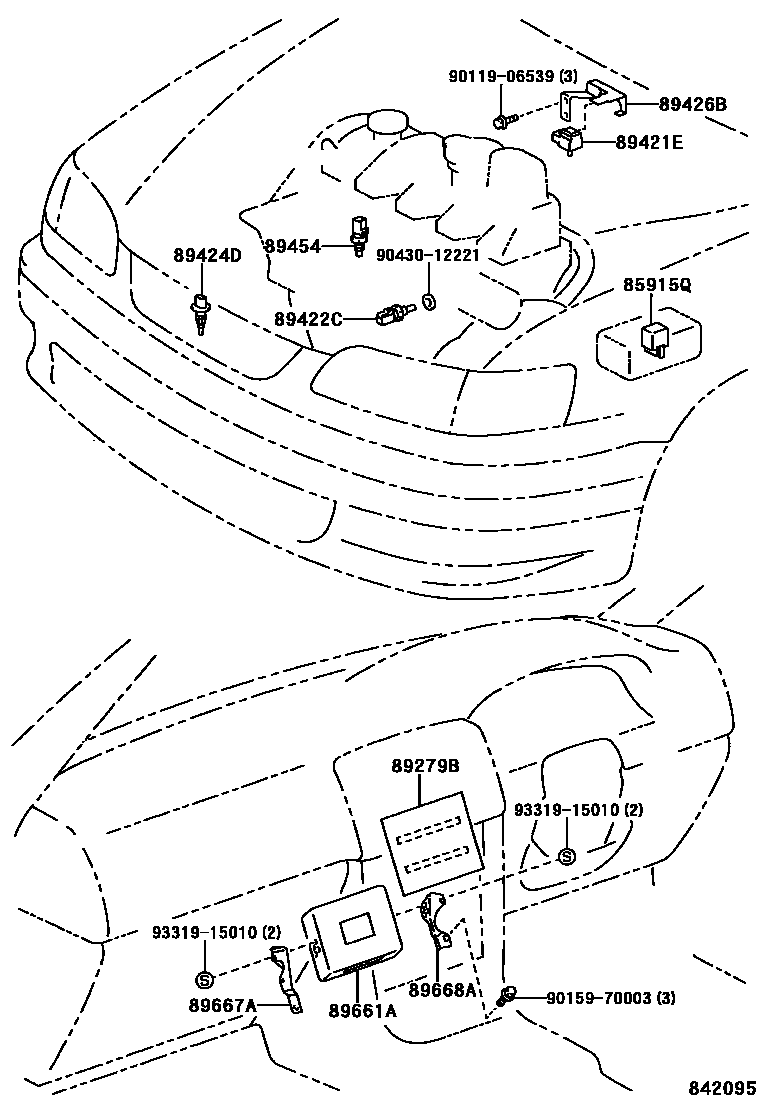

14 parts on this diagram · 1 diagram in section
