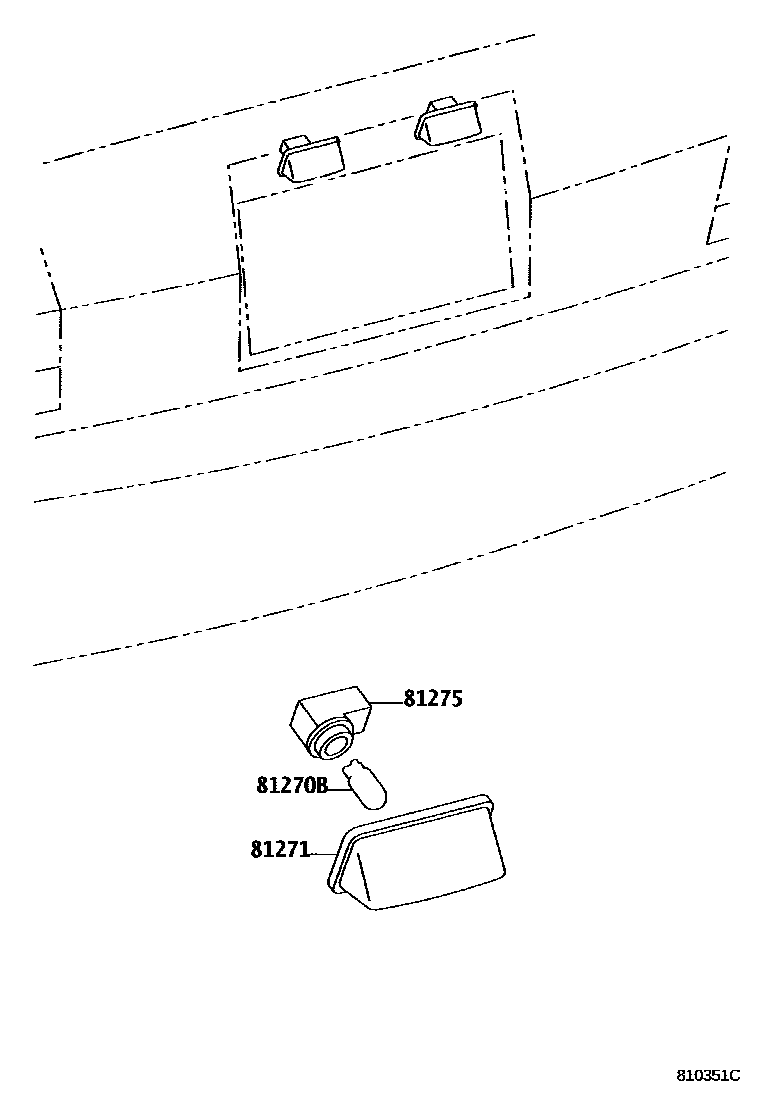

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iAE11#,CE11#,EE111199505-199704

81271LENS, LICENSE PLATE LAMP

main81271-12500iAE11#,CE11#,EE111199505-199512

main81271-12501iEE111..5F..XEVIN199804-200008

main81271-20520iAE11#,CE11#;EE111..3FC,4F;EE111..5F..LX199704-200008

main81691-12130iAE11#,CE11#,EE111199505-199512

main81691-12131iAE11#,CE11#,EE111199512-199704

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-12500×2iEE111..5F..XEVIN199804-199812

main81275-12501×2iEE111..5F..XEVIN199812-200008

main90075-99011iAE11#,CE11#;EE111..3FC,4F;EE111..5F..LX199704-200008

3 parts on this diagram · 2 diagrams in section
