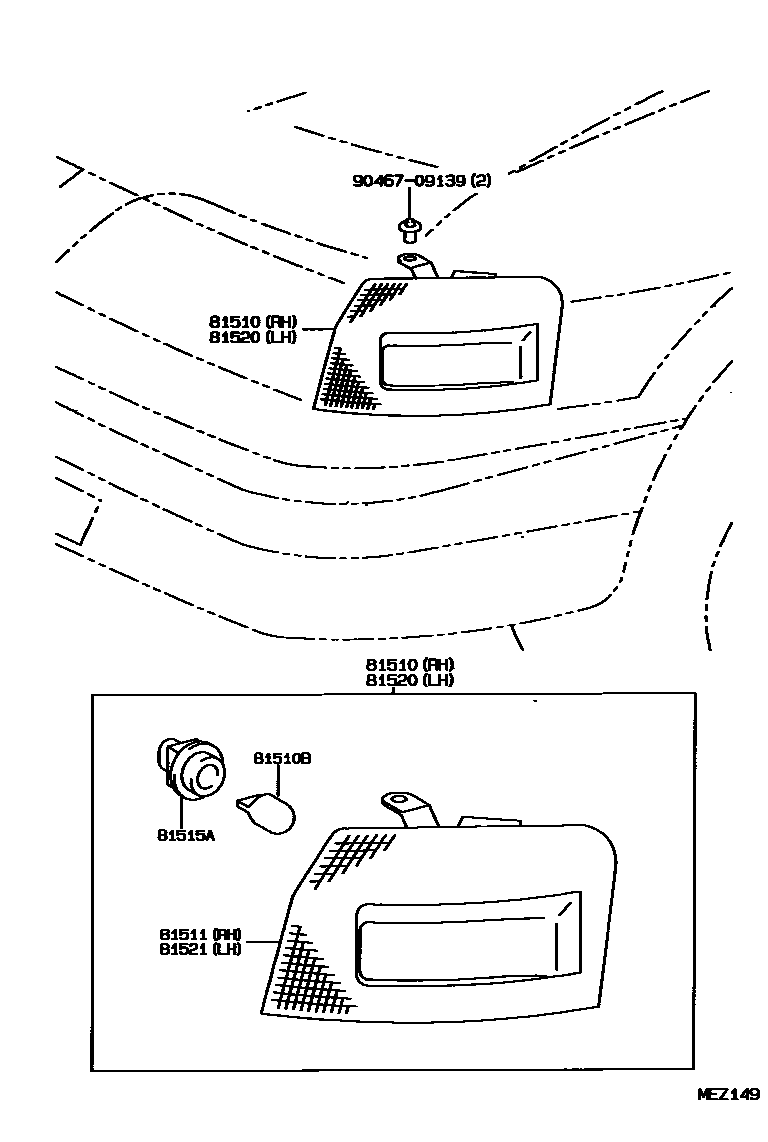

FRONT TURN SIGNAL LAMP

0001 1 0002 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-12820iAE11#,CE11#,EE111199505-199704

main81510-12880iAE11#,CE11#,EE111199704-200008

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043×2iAE11#,CE11#,EE111199505-199704

main90981-15009×2iAE11#,CE11#,EE111199704-200008

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-12820iAE11#,CE11#,EE111199505-199704

main81511-12880iAE11#,CE11#,EE111199704-200008

81515APLUG ASSY, FRONT TURN SIGNAL LAMP

main90075-60006×2iAE11#,CE11#,EE111199704-200008

main90075-99080×2iAE11#,CE11#,EE111199505-199704

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-12800iAE11#,CE11#,EE111199505-199704

main81520-12860iAE11#,CE11#,EE111199704-200008

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-12800iAE11#,CE11#,EE111199505-199704

main81521-12860iAE11#,CE11#,EE111199704-200008

9046709139

main90467-09139

7 parts on this diagram · 2 diagrams in section
