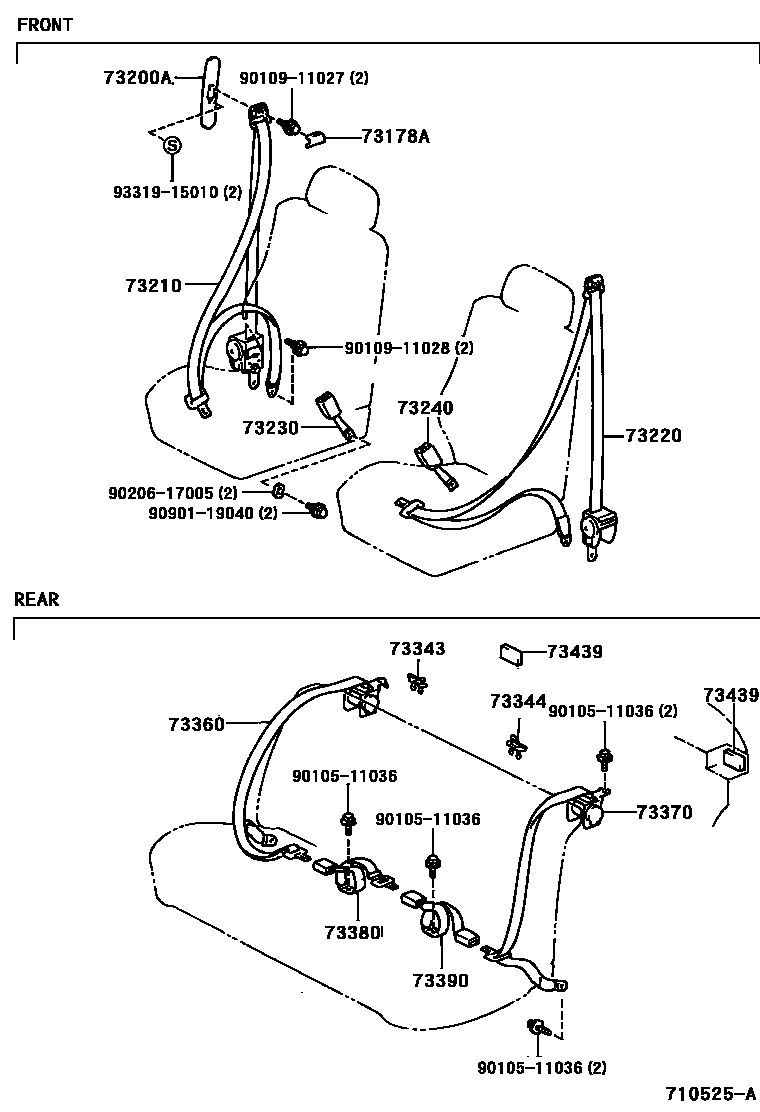

SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0002 1

73178ACAP, SEAT BELT ANCHOR COVER

main73178-12040-A0×2iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

IVORY,TRIM4#

main73178-12040-B0×2iAE110,114,CE11#,EE111..LX; AE110,114,CE11#,EE111..SEVIN,XEVIN; AE111199704-199804

LT.GRAY,TRIM1#; LT.GRAY,TRIM11; LT.GRAY,TRIM12

main73178-12040-B4×2iAE110,114,CE11#,EE111..SEVIN,XEVIN; AE111199704-199804

MD.CHARCOAL,TRIM1#; MD.CHARCOAL,TRIM14

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12040-A0×2iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

IVORY,TRIM4#

main73200-12040-B1×2iAE11#,CE11#,EE111199505-199704

LT.GRAY,TRIM1#

main73200-12050-B0×2iAE110..4FC;AE110..5F..SEVIN;AE114,CE11#..SEVIN199704-199804

MD.GRAY,TRIM1#

main73200-12050-B1×2iAE110,114,CE11#,EE111..SEVIN,XEVIN; AE111199704-199804

MD.CHARCOAL,TRIM1#; MD.CHARCOAL,TRIM14

main73200-12050-B2×2iAE110..4FC;AE110..5F..SEVIN;AE114,CE11#..SEVIN; AE110..5F..(LX,XEVIN);AE114,CE11#,EE111..LX,XEVIN199704-199804

LT.GRAY,TRIM1#; LT.GRAY,TRIM11

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-1A060-B2iAE11#,CE11#,EE111199505-199605

SHADOW GRAY,TRIM1#

main73210-1A060-E2iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199605

OAK,TRIM4#

main73210-1A061-B2iAE11#,CE11#,EE111199605-199704

SHADOW GRAY,TRIM1#

main73210-1A061-E2iAE110,114,CE11#,EE111..SEVIN,XEVIN199605-199704

OAK,TRIM4#

main73210-1A150-B2iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

main73210-1A150-B3iAE111199704-199804

SHADOW GRAY,TRIM1#

main73210-1A150-B8iAE110,114,CE11#,EE111..LX; AE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

main73210-1A151-B2iAE110,114,CE11#,EE111199804-200008

SHADOW GRAY,TRIM1#

main73210-1A151-B9iAE111199804-200008

SHADOW GRAY,TRIM1#

main73210-1A260-B1iAE110,CE110,EE111..LX199704-199804

SHADOW GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-12840-B2iAE11#,CE11#,EE111199505-199605

SHADOW GRAY,TRIM1#

main73220-12840-E2iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199605

OAK,TRIM4#

main73220-12841-B2iAE110,114,CE11#,EE111..LX,XEVIN199605-199704

SHADOW GRAY,TRIM1#

main73220-12841-E2iAE110,114,CE11#,EE111..XEVIN199605-199704

OAK,TRIM4#

main73220-1A030-B0iAE11#,CE11#..SCRU,SEVIN; AE110,114,CE11#,EE111..LX,XEVIN199605-199704

main73220-1A030-E0iAE110,114,CE11#,EE111..XEVIN; AE110,114,CE11#..SEVIN199605-199704

main73220-1A050-B2iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

main73220-1A050-B3iAE111199704-199804

SHADOW GRAY,TRIM1#

main73220-1A050-B8iAE110,114,CE11#,EE111..LX; AE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM11

main73220-1A070-B3iAE110,CE110,EE111..LX199704-199804

main73220-1A161-B1iAE110,114,CE11#,EE111199804-200008

SHADOW GRAY,TRIM1#

main73220-1A161-B3iAE111199804-200008

SHADOW GRAY,TRIM1#

main73220-1A171-B1iAE110,CE113,EE111..LX199804-200008

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-12580-B0iAE11#,CE11#,EE111199505-199704

SHADOW GRAY,TRIM1#

main73230-12580-B2iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

main73230-12580-B3iAE110,114,CE11#,EE111..LX; AE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.GRAY,TRIM1#; MD.GRAY,TRIM11

main73230-12580-E0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

main73230-12590-B0iAE110,114..4FC..(LX,SEVIN)199505-199605

main73230-12590-B2iAE110..4FC;AE114..4FC..SEVIN199808-200008

main73230-12590-E0iAE110,114..4FC..SEVIN199505-199605

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-12580-B0iAE11#,CE11#,EE111199505-199704

SHADOW GRAY,TRIM1#

main73230-12580-B2iAE110,114,CE11#,EE111199804-200008

MD.CHARCOAL,TRIM1#

main73230-12580-B3iAE110,114,CE11#,EE111..LX; AE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.GRAY,TRIM1#; MD.GRAY,TRIM11

main73230-12580-E0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

73343GUIDE, REAR SEAT SHOULDER BELT, RH

main73343-12020-B0iAE111199505-199704

SHADOW GRAY,TRIM1#

73344GUIDE, REAR SEAT SHOULDER BELT, LH

main73343-12020-B0iAE111199505-199704

SHADOW GRAY,TRIM1#

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-12600-B1iAE11#,CE11#,EE111199505-199704

SHADOW GRAY,TRIM1#

main73360-12600-E1iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

main73360-12700-B0iAE111199704-199808

SHADOW GRAY,TRIM1#

main73360-12701-B0iAE111199808-200008

SHADOW GRAY,TRIM1#

main73360-12710-B0iAE110,114,CE11#,EE111..LX; AE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.GRAY,TRIM1#; MD.GRAY,TRIM11

main73360-12710-B1iAE110,114,CE11#,EE111199804-199808

MD.CHARCOAL,TRIM1#

main73360-12711-B1iAE110,114,CE11#,EE111199808-200008

SHADOW GRAY,TRIM1#

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73370-12440-B1iAE11#,CE11#,EE111199505-199704

SHADOW GRAY,TRIM1#

main73370-12440-E1iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

main73370-12500-B0iAE111199704-199808

SHADOW GRAY,TRIM1#

main73370-12501-B0iAE111199808-200008

SHADOW GRAY,TRIM1#

main73370-12510-B0iAE110,114,CE11#,EE111..LX; AE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.GRAY,TRIM1#; MD.GRAY,TRIM11

main73370-12510-B1iAE110,114,CE11#,EE111199804-199808

MD.CHARCOAL,TRIM1#

main73370-12511-B1iAE110,114,CE11#,EE111199808-200008

SHADOW GRAY,TRIM1#

73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH

main73470-12080-B0iAE11#,CE11#,EE111199505-199704

SHADOW GRAY,TRIM1#

main73470-12080-E0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

main73470-12120-B0iAE111199704-200008

SHADOW GRAY,TRIM1#

main73470-12120-B1iAE110,114,CE11#,EE111199704-199804

SHADOW GRAY,TRIM11

main73470-12120-B2iAE110,114,CE11#,EE111199804-200008

SHADOW GRAY,TRIM1#

73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH

main73480-12080-B0iAE11#,CE11#,EE111199505-199704

SHADOW GRAY,TRIM1#

main73480-12080-E0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

main73480-12130-B0iAE111199704-200008

SHADOW GRAY,TRIM1#

main73480-12130-B1iAE110,114,CE11#,EE111199704-199804

SHADOW GRAY,TRIM11

main73480-12130-B2iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

SHADOW GRAY,TRIM14

73439CUSHION, REAR SEAT BELT RETRACTOR

main73439-12010×2iAE11#,CE11#,EE111199505-199704

main73439-12040×2iAE11#,CE11#,EE111199704-200008

9010511036

main90105-11036

9010911027

main90109-11027

9010911028

main90109-11028

9020617005

main90206-17005

9090119040

main90901-19040

9331915010

main93319-15010

19 parts on this diagram · 2 diagrams in section
