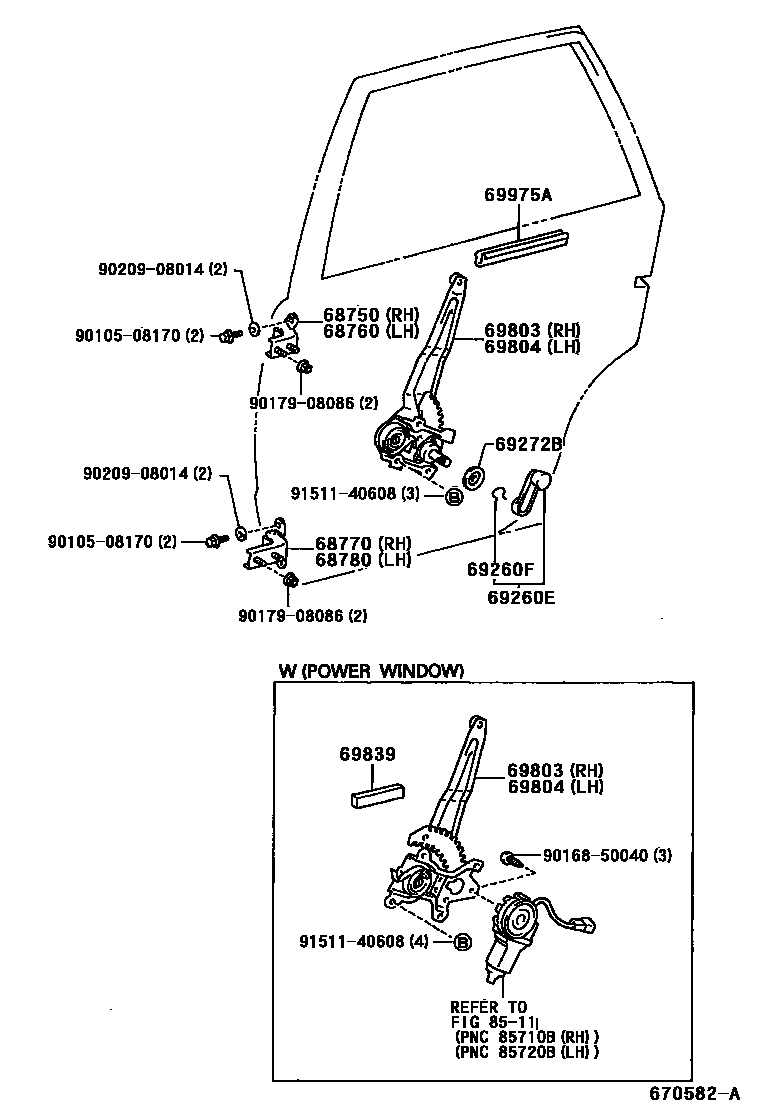

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-32060iAE11#,CE11#,EE111199505-200008

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-32060iAE11#,CE11#,EE111199505-200008

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-12100iAE11#,CE11#,EE111199505-200008

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-12090iAE11#,CE11#,EE111199505-200008

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-22030-B2iAE110,114,CE11#,EE111..LX,XEVIN199804-200008

MD.CHARCOAL,TRIM1#

main69260-22030-B2iAE110,114,CE11#,EE111..XEVIN199704-199804

MD.CHARCOAL,TRIM14

main69260-22030-B3iAE110,114,CE11#,EE111..LX199704-200008

MD.GRAY,TRIM11

main69260-22030-B3iAE110,114,CE11#,EE111..LX199704-199804

MD.GRAY,TRIM1#

main69260-22030-E2iAE110,114,CE11#,EE111..XEVIN199505-199704

OAK,TRIM4#

main69260-22030-P0iAE110,114,CE11#,EE111..LX,XEVIN199505-199704

SHADOW GRAY,TRIM1#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274iAE110,114,CE11#,EE111..LX,XEVIN199505-200008

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-20020iAE110,114,CE11#,EE111..LX,XEVIN199505-200008

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-12120iEE111..3FC,4F;AE110,114,CE110,114..LX,XEVIN199505-200008

main69803-12120iCE11#,EE111..(4FC,5F)..(LX,XEVIN)199804-200008

main69830-12270iAE110,114,CE11#,EE111..LX,XEVIN199505-199704

main69830-12320iAE110,114,CE11#,EE111..LX,XEVIN199704-200008

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-12120iAE110,114,CE11#,EE111..LX,XEVIN199505-200008

main69804-12120iCE11#,EE111..(4FC,5F)..(LX,XEVIN)199804-200008

main69840-12270iAE110,114,CE11#,EE111..LX,XEVIN199505-199704

main69840-12320iAE110,114,CE11#,EE111..LX,XEVIN199704-200008

69839PAD, REAR DOOR WINDOW REGULATOR

main69839-12020iAE11#,CE11#,EE111199505-200008

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-12010iCE11#,EE111..4FC,5F199804-200008

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010508170

main90105-08170

9016850040

main90168-50040

9017908086

main90179-08086

9020908014

main90209-08014

9151140608

main91511-40608

17 parts on this diagram · 1 diagram in section
