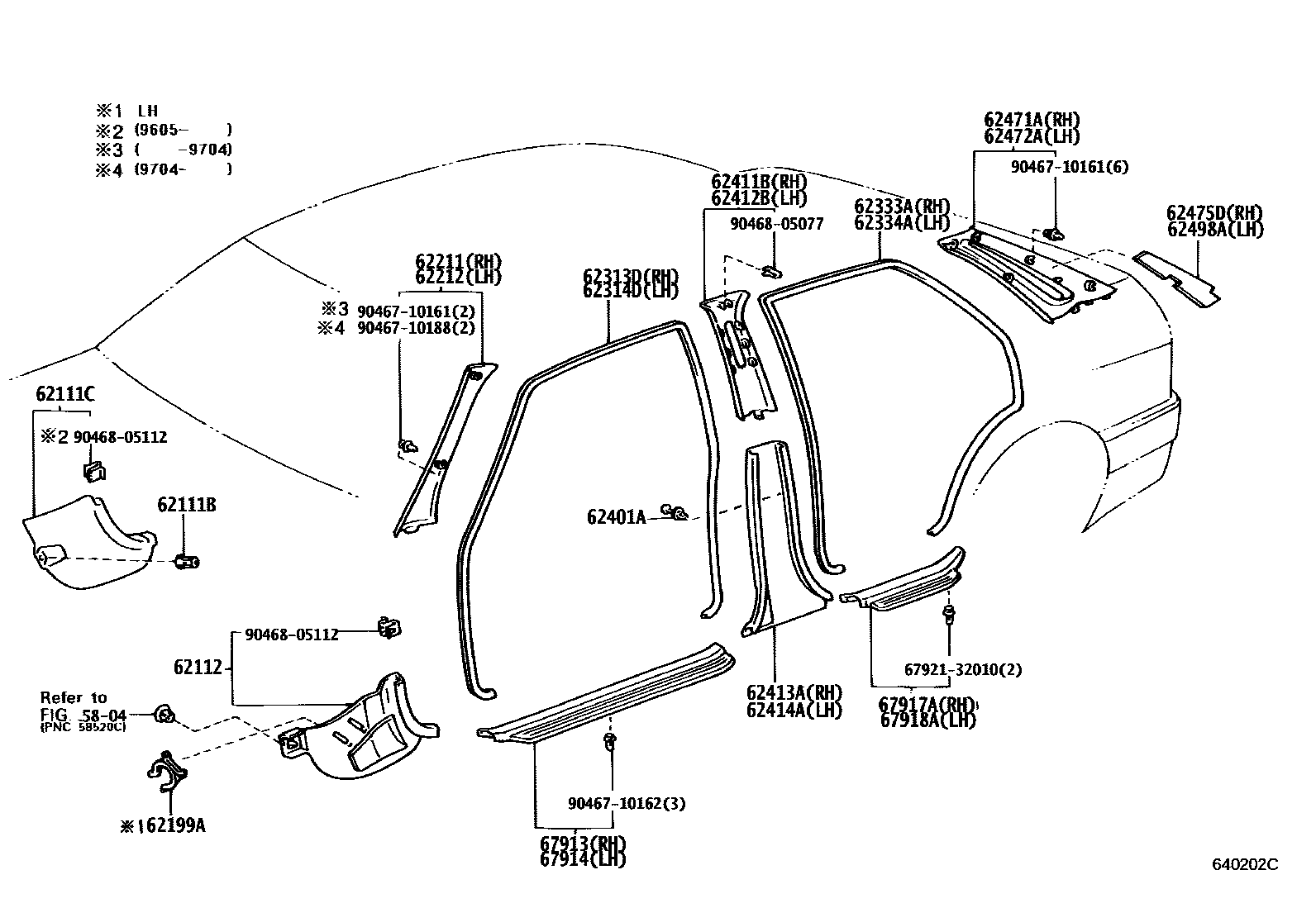

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

5804MAT & CARPET

→ Go to FIG 58-04

62111BCLIP(FOR COWL SIDE TRIM)

main90467-05050-22iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

BLACK,TRIM11,14

main90467-05050-22iAE11#,CE11#,EE111..LX,SCRU199605-200008

BLACK,TRIM1#

main90467-05050-22iAE11#,CE11#,EE111..LX,SCRU199605-199704

BLACK,TRIM1#,4#

62111CBOARD, COWL SIDE TRIM, RH

main62111-12230-B0iAE11#,CE11#,EE111199505-199605

SHADOW GRAY,TRIM1#

main62111-12230-E0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199605

OAK,TRIM4#

main62111-12231-B0iAE11#,CE11#,EE111199605-200008

SHADOW GRAY,TRIM1#

main62111-12231-B1iAE110,114,CE11#,EE111199804-200008

MD.CHARCOAL,TRIM1#

main62111-12231-B1iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

main62111-12231-B2iAE110,114,CE11#,EE111..LX199704-199804

MD.GRAY,TRIM11

main62111-12231-B2iAE110,114,CE11#,EE111..LX199704-199804

MD.GRAY,TRIM1#

main62111-12231-E0iAE110,114,CE11#,EE111..SEVIN,XEVIN199605-199704

OAK,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-12230-B0iAE11#,CE11#,EE111199505-200008

SHADOW GRAY,TRIM1#

main62112-12230-B1iAE110,114,CE11#,EE111199804-200008

MD.CHARCOAL,TRIM1#

main62112-12230-B1iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

main62112-12230-B2iAE110,114,CE11#,EE111..LX199704-199804

MD.GRAY,TRIM11

main62112-12230-B2iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.GRAY,TRIM1#

main62112-12230-E0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

62199AHOLDER, FUSEE

main90468-25003iAE11#,CE11#,EE111199505-200008

62211GARNISH, FRONT PILLAR, RH

main62211-12280-A0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

IVORY,TRIM4#

main62211-12280-B0iAE11#,CE11#,EE111199505-199704

LT.GRAY,TRIM1#

main62211-12300-B0iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

main62211-12300-B0iAE111199804-199901

MD.CHARCOAL,TRIM12

main62211-12300-B0iAE110,114,CE11#,EE111199804-200008

MD.CHARCOAL,TRIM1#

main62211-12300-B1iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

LT.GRAY,TRIM11

main62211-12300-B1iAE111199704-199804

LT.GRAY,TRIM12

main62211-12300-B1iAE111199704-199804

LT.GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-12280-A0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

IVORY,TRIM4#

main62212-12280-B0iAE11#,CE11#,EE111199505-199704

LT.GRAY,TRIM1#

main62212-12300-B0iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

main62212-12300-B0iAE111199804-200008

MD.CHARCOAL,TRIM1#

main62212-12300-B0iAE111199804-199901

MD.CHARCOAL,TRIM12

main62212-12300-B1iAE111199704-199804

LT.GRAY,TRIM1#

main62212-12300-B1iAE111199704-199804

LT.GRAY,TRIM12

main62212-12300-B1iAE111199704-199804

LT.GRAY,TRIM11

62313DTRIM, FRONT DOOR OPENING, RH

main62313-12150-B0iAE11#,CE11#,EE111199505-199704

SHADOW GRAY,TRIM1#

main62313-12150-E0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

main62313-12180-B0iAE111199704-200008

SHADOW GRAY,TRIM1#

main62313-12180-B1iAE110,114,CE11#,EE111199804-200008

MD.CHARCOAL,TRIM1#

main62313-12180-B1iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

main62313-12180-B2iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.GRAY,TRIM1#

main62313-12180-B2iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.GRAY,TRIM11

62314DTRIM, FRONT DOOR OPENING, LH

main62314-12060-B0iAE11#,CE11#,EE111199505-199704

SHADOW GRAY,TRIM1#

main62314-12060-E0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

main62314-12080-B0iAE111199704-200008

SHADOW GRAY,TRIM1#

main62314-12080-B1iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

main62314-12080-B1iAE110,114,CE11#,EE111199804-200008

MD.CHARCOAL,TRIM1#

main62314-12080-B2iAE110,114,CE11#,EE111..LX199704-199804

MD.GRAY,TRIM11

main62314-12080-B2iAE110,114,CE11#,EE111..LX199704-199804

MD.GRAY,TRIM1#

62333ATRIM, REAR DOOR OPENING, RH

main62333-12120-B0iAE11#,CE11#,EE111199505-199704

SHADOW GRAY,TRIM1#

main62333-12120-E0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

main62333-12140-B0iAE111199704-200008

SHADOW GRAY,TRIM1#

main62333-12140-B1iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

main62333-12140-B1iAE110,114,CE11#,EE111199804-200008

MD.CHARCOAL,TRIM1#

main62333-12140-B2iAE110,114,CE11#,EE111..LX199704-199804

MD.GRAY,TRIM1#

main62333-12140-B2iAE110,114,CE11#,EE111..LX199704-199804

MD.GRAY,TRIM11

62334ATRIM, REAR DOOR OPENING, LH

main62334-12020-B0iAE11#,CE11#,EE111199505-199704

SHADOW GRAY,TRIM1#

main62334-12020-E0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

main62334-12040-B0iAE111199704-200008

SHADOW GRAY,TRIM1#

main62334-12040-B1iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

main62334-12040-B1iAE110,114,CE11#,EE111199804-200008

MD.CHARCOAL,TRIM1#

main62334-12040-B2iAE110,114,CE11#,EE111..LX199704-199804

MD.GRAY,TRIM1#

main62334-12040-B2iAE110,114,CE11#,EE111..LX199704-199804

MD.GRAY,TRIM11

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-07071-B4iAE111199704-200008

SHADOW GRAY,TRIM1#

main90467-07071-B6iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

main90467-07071-B6iAE110,114,CE11#,EE111199804-200008

MD.CHARCOAL,TRIM1#

main90467-07071-B7iAE110,114,CE11#,EE111..LX199704-199804

MD.GRAY,TRIM11

main90467-07071-B7iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.GRAY,TRIM1#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-12490-A0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

IVORY,TRIM4#

main62411-12490-B0iAE11#,CE11#,EE111199505-199704

LT.GRAY,TRIM1#

main62411-12500-B0iAE110,114,CE11#,EE111..LX199704-199804

LT.GRAY,TRIM12

main62411-12500-B0iAE110,114,CE11#,EE111..LX199704-199804

LT.GRAY,TRIM1#

main62411-12500-B0iAE110,114,CE11#,EE111..LX199704-199804

LT.GRAY,TRIM11

main62411-12500-B1iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

main62411-12500-B1iAE111199804-200008

MD.CHARCOAL,TRIM12

main62411-12500-B1iAE111199804-200008

MD.CHARCOAL,TRIM1#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-12490-A0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

IVORY,TRIM4#

main62412-12490-B0iAE11#,CE11#,EE111199505-199704

LT.GRAY,TRIM1#

main62412-12500-B1iAE111199804-200008

MD.CHARCOAL,TRIM12

main62412-12500-B1iAE111199804-200008

MD.CHARCOAL,TRIM1#

main62412-12500-B1iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

main62412-12500-B2iAE111199704-199804

LT.GRAY,TRIM1#

main62412-12500-B2iAE111199704-199804

LT.GRAY,TRIM11

main62412-12500-B2iAE110,114,CE11#,EE111..LX199704-199804

LT.GRAY,TRIM12

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-12210-B0iAE11#,CE11#,EE111199505-199704

SHADOW GRAY,TRIM1#

main62413-12210-E0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

main62413-12220-B0iAE111199704-200008

SHADOW GRAY,TRIM1#

main62413-12220-B1iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

main62413-12220-B1iAE110,114,CE11#,EE111199804-200008

MD.CHARCOAL,TRIM1#

main62413-12220-B2iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.GRAY,TRIM11

main62413-12220-B2iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.GRAY,TRIM1#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-12210-B0iAE11#,CE11#,EE111199505-199704

SHADOW GRAY,TRIM1#

main62414-12210-E0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

main62414-12220-B0iAE111199704-200008

SHADOW GRAY,TRIM1#

main62414-12220-B1iAE110,114,CE11#,EE111199804-200008

MD.CHARCOAL,TRIM1#

main62414-12220-B1iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

main62414-12220-B2iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.GRAY,TRIM1#

main62414-12220-B2iAE110,114,CE11#,EE111..LX199704-199804

MD.GRAY,TRIM11

62471AGARNISH, ROOF SIDE, INNER RH

main62471-12720-A0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

IVORY,TRIM4#

main62471-12720-B0iAE11#,CE11#,EE111199505-199704

LT.GRAY,TRIM1#

main62471-12780-B1iAE111199704-199804

MD.CHARCOAL,TRIM12

main62471-12780-B1iAE111199704-199804

MD.CHARCOAL,TRIM14

main62471-12780-B1iAE11#,CE11#,EE111199804-200008

MD.CHARCOAL,TRIM1#

main62471-12780-B3iAE111199704-199804

LT.GRAY,TRIM12

main62471-12780-B3iAE111199704-199804

LT.GRAY,TRIM1#

main62471-12780-B3iAE111199704-199804

LT.GRAY,TRIM11

62472AGARNISH, ROOF SIDE, INNER LH

main62472-12720-A0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

IVORY,TRIM4#

main62472-12720-B0iAE11#,CE11#,EE111199505-199704

LT.GRAY,TRIM1#

main62472-12780-B1iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM12

main62472-12780-B1iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

main62472-12780-B1iAE11#,CE11#,EE111199804-200008

MD.CHARCOAL,TRIM1#

main62472-12780-B2iAE111199704-199804

LT.GRAY,TRIM1#

main62472-12780-B2iAE111199704-199804

LT.GRAY,TRIM11

main62472-12780-B2iAE110,114,CE11#,EE111..LX199704-199804

LT.GRAY,TRIM12

62475DPAD, ROOF SIDE INNER GARNISH, RH

main62475-12090iAE11#,CE11#,EE111199505-199805

62498APAD, ROOF SIDE INNER GARNISH, LH

main62498-12060iAE11#,CE11#,EE111199505-199805

67913PLATE, FRONT DOOR SCUFF, RH

main67913-12240-B0iAE111199505-200008

SHADOW GRAY,TRIM1#

main67913-12240-B1iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

main67913-12240-B1iAE110,114,CE11#,EE111199804-200008

MD.CHARCOAL,TRIM1#

main67913-12240-B2iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.GRAY,TRIM1#

main67913-12240-B2iAE110,114,CE11#,EE111..LX199704-199804

MD.GRAY,TRIM11

main67913-12240-E0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-12210-B0iAE11#,CE11#,EE111199505-200008

SHADOW GRAY,TRIM1#

main67914-12210-B1iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

main67914-12210-B1iAE110,114,CE11#,EE111199804-200008

MD.CHARCOAL,TRIM1#

main67914-12210-B2iAE110,114,CE11#,EE111..LX199704-199804

MD.GRAY,TRIM1#

main67914-12210-B2iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.GRAY,TRIM11

main67914-12210-E0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-12110-B0iAE11#,CE11#,EE111199505-200008

SHADOW GRAY,TRIM1#

main67917-12110-B1iAE110,114,CE11#,EE111199804-200008

MD.CHARCOAL,TRIM1#

main67917-12110-B1iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

main67917-12110-B2iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.GRAY,TRIM11

main67917-12110-B2iAE110,114,CE11#,EE111..LX199704-199804

MD.GRAY,TRIM1#

main67917-12110-E0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-12100-B0iAE11#,CE11#,EE111199505-200008

SHADOW GRAY,TRIM1#

main67918-12100-B1iAE110,114,CE11#,EE111199804-200008

MD.CHARCOAL,TRIM1#

main67918-12100-B1iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

main67918-12100-B2iAE110,114,CE11#,EE111..LX199704-199804

MD.GRAY,TRIM11

main67918-12100-B2iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.GRAY,TRIM1#

main67918-12100-E0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

6792132010RETAINER, FRONT DOOR SCUFF PLATE

main67921-32010

9046710161

main90467-10161

9046710162

main90467-10162

9046710188

main90467-10188

9046805077

main90468-05077

9046805112

main90468-05112

30 parts on this diagram · 1 diagram in section
