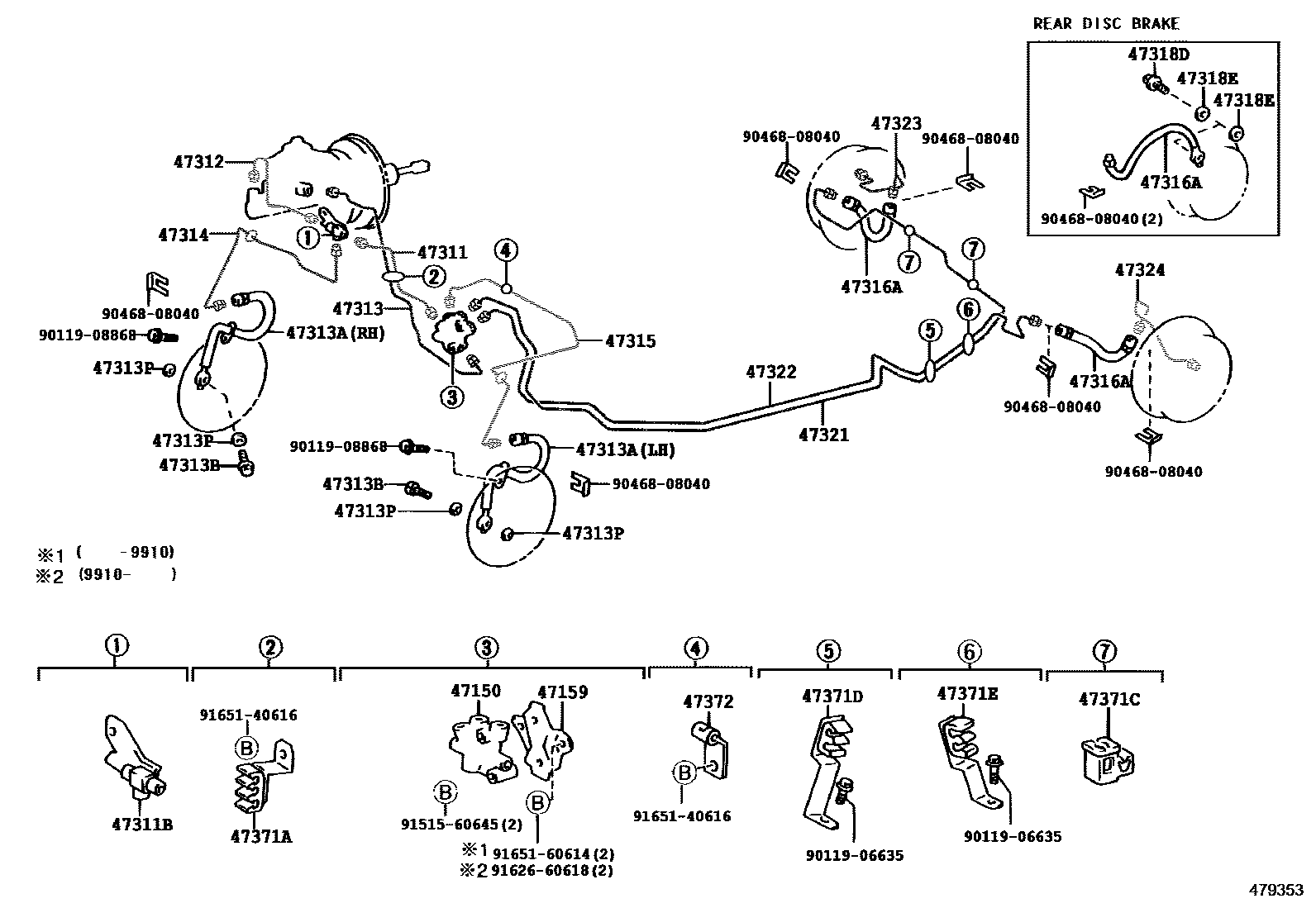

BRAKE TUBE & CLAMP

0001 1 0002 1��(ABS) 0003 1��(ABS) 0004 1��(ABS) 0005 1��(ABS)

47150VALVE ASSY, PROPORTIONING

main47150-10060iCE110,113199704-200008

main47150-10090iCE110,113..LX199704-200008

main47150-12060iAE110,111,EE111199505-199605

main47150-12140iCE110199505-199605

main47150-12150iAE114,CE114199505-199605

main47150-12160iAE110,111,EE111199505-199605

main47150-12270iAE110,EE111..LX199704-200008

main47150-16060iAE110,EE111199704-200008

main47150-16070iCE110199505-199605

main47150-20130iAE114,CE114199505-199605

main47150-20250iAE114,CE114..LX; AE114,CE114..SEVIN,XEVIN199605-199704

47159BRACKET, PROPORTIONING VALVE

main47159-12070iAE11#,CE11#,EE111199505-199704

47311TUBE, FRONT BRAKE, NO.1

main47311-12560iAE11#,CE11#,EE111199505-199605

main47311-12570iAE11#,CE11#,EE111199505-199605

main47311-12580iAE11#,CE11#,EE111199605-199704

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main47391-12010iAE110,114,CE11#,EE111..LX199605-199704

main90412-10116iAE11#,CE11#,EE111199704-200008

47312TUBE, FRONT BRAKE, NO.2

main47312-12330iAE110,CE113,EE111..LX199910-200008

47313TUBE, FRONT BRAKE, NO.3

main47313-12370iAE11#,CE11#,EE111199505-199605

main47313-12380iAE11#,CE11#,EE111199505-199605

main47313-12390iAE11#,CE11#,EE111199605-199704

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02798iAE110,111,CE110,EE111199505-199704

main90947-02799iAE110,111,CE110,EE111199505-199704

main90947-02802iAE114,CE114199505-199704

main90947-02803iAE114,CE114199505-199704

main90947-02910iAE110,111,CE110,113,EE111199704-200008

main90947-02913iAE110,111,CE110,113,EE111199704-200008

main90947-02914iAE114,CE114,116199704-200008

main90947-02917iAE114,CE114,116199704-200008

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iAE11#,CE11#,EE111199505-199704

main90401-10058×2iAE11#,CE11#,EE111199908-200008

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iAE11#,CE11#,EE111199908-200008

main90430-10074×4iAE11#,CE11#,EE111199704-199908

47314TUBE, FRONT BRAKE, NO.4

main47314-12290iAE11#,CE11#,EE111199505-199704

47315TUBE, FRONT BRAKE, NO.5

main47315-12450iAE11#,CE11#,EE111199704-200008

main47315-12460iAE11#,CE11#,EE111199505-199605

47316TUBE, FRONT BRAKE, NO.6

main47316-12250iAE11#,CE11#,EE111199505-199605

main47316-12270iAE11#,CE11#,EE111199704-200008

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02783×2iAE110,111,CE110,EE111199505-199704

main90947-02809×2iAE114,CE114199505-199704

main90947-02921×2iAE110,CE110,113,EE111199704-200008

main90947-02922×2iAE111199704-199910

main90947-02923×2iAE114,CE114,116199704-200008

main90947-02C41×2iAE111199910-200008

47318TUBE, FRONT BRAKE, NO.8

main47318-12270iAE11#,CE11#,EE111199505-199605

main47318-12280iAE11#,CE11#,EE111199605-199704

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015×2iAE111199704-199908

main90401-10058×2iAE111199908-200008

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iAE111199908-200008

main90430-10074×4iAE111199704-199908

47321TUBE, REAR BRAKE, NO.1

main47321-12130iAE110,111,CE110,113,EE111199704-200008

main47321-12140iAE114,CE114199505-199704

47322TUBE, REAR BRAKE, NO.2

main47322-12280iAE110,111,CE110,EE111199505-199704

main47322-12290iAE114,CE114,116199704-200008

47323TUBE, REAR BRAKE, NO.3

main47323-12240iAE114,CE114199505-199704

main47323-12250iAE110,111,CE110,EE111199505-199704

47324TUBE, REAR BRAKE, NO.4

main47324-12200iAE114,CE114199505-199704

main47324-12210iAE110,CE110,113,EE111199704-200008

47371ACLAMP, BRAKE TUBE, NO.1

main47371-12090iAE11#,CE11#,EE111199704-200008

main47371-12100iAE110,114,CE11#,EE111..LX199605-199704

47371CCLAMP, BRAKE TUBE, NO.7

main47371-12150×2iAE11#,CE11#,EE111199505-199704

main90949-01B45×2iAE11#,CE11#,EE111199811-200008

47371DCLAMP, BRAKE TUBE, NO.8

main47375-12040iAE11#,CE11#,EE111199505-199704

47371ECLAMP, BRAKE TUBE, NO.9

main47375-12060iAE11#,CE11#,EE111199505-199704

47372CLAMP, BRAKE TUBE, NO.2

main47372-12060iAE11#,CE11#,EE111199704-200008

main90461-06119iAE110,114,CE11#,EE111..LX199605-199704

9011906635

main90119-06635

9011908868

main90119-08868

9046808040

main90468-08040

9151560645

main91515-60645

9162660618

main91626-60618

9165140616

main91651-40616

9165160614

main91651-60614

32 parts on this diagram · 5 diagrams in section
