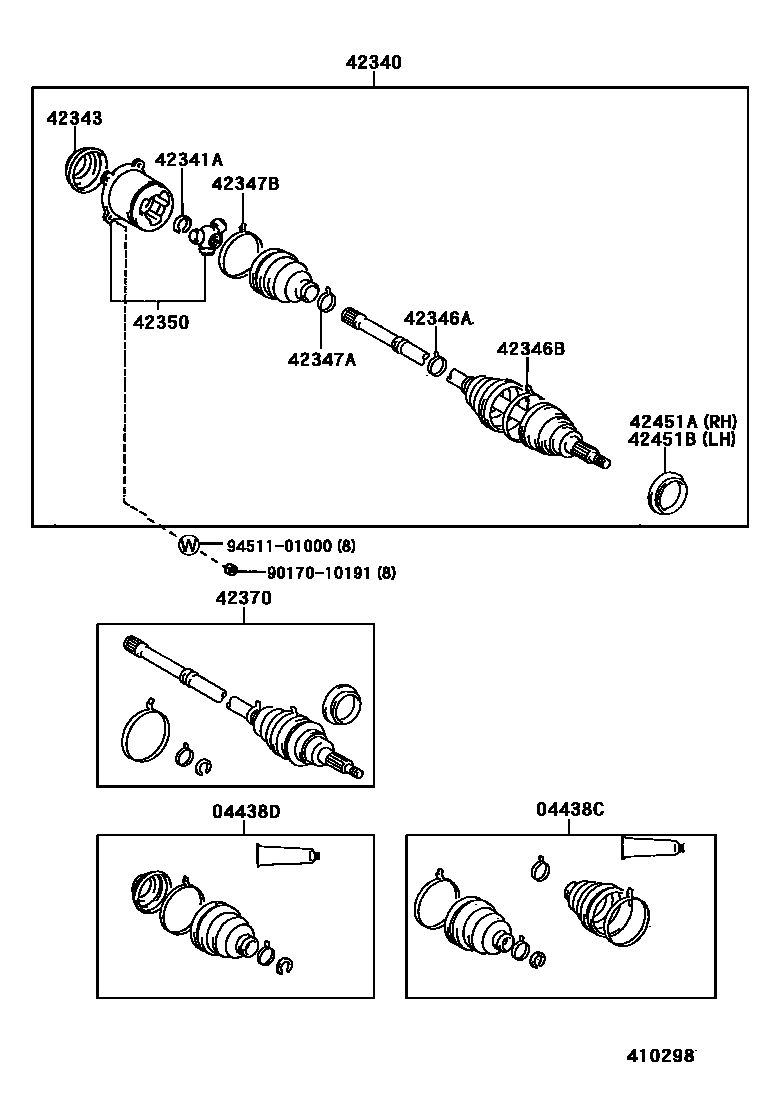

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

04438CBOOT KIT, REAR DRIVE SHAFT

main04438-20290×2iAE114,CE114,116199704-200008

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04438-20240×2iAE114,CE114199505-199704

42340SHAFT ASSY, REAR DRIVE

main42340-12030×2iAE114,CE114199505-199601

main42340-12040×2iAE114,CE114199505-199601

main42340-12050×2iAE114,CE114199601-199605

main42340-12060×2iAE114,CE114..LX; AE114,CE114..SEVIN,XEVIN199605-199704

main42340-12061×2iAE114,CE114,116199709-200008

42341ARING, SNAP (FOR REAR DRIVE SHAFT)

main90520-23024×2iAE114,CE114199505-199704

42343COVER, OUTBOARD JOINT END

main42343-14010×2iAE114,CE114199505-199704

42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main90949-01078×2iAE114,CE114,116199704-200008

42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-16020×2iAE114,CE114199505-199704

42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-14010×2iAE114,CE114199505-199704

42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-14020×2iAE114,CE114,116199704-200008

42350JOINT ASSY, REAR DRIVE SHAFT OUTBOARD

main42350-14010×2iAE114,CE114,116199704-200008

42370SHAFT ASSY, REAR DRIVE OUTBOARD JOINT

main42370-19125×2iAE114,CE114199505-199601

main42370-19126×2iAE114,CE114..LX199605-199704

main42370-19135×2iAE114,CE114199505-199601

main42370-19136×2iAE114,CE114199601-199605

main42370-19137×2iAE114,CE114,116199709-200008

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42451-32010iAE114,CE114..LX199704-199705

main43247-12010iAE114,CE114..LX; AE114,CE114..SEVIN,XEVIN199605-199704

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42451-32010iAE114,CE114..LX199704-199705

main43247-12010iAE114,CE114..LX; AE114,CE114..SEVIN,XEVIN199605-199704

9017010191

main90170-10191

9451101000

main94511-01000

15 parts on this diagram · 3 diagrams in section
