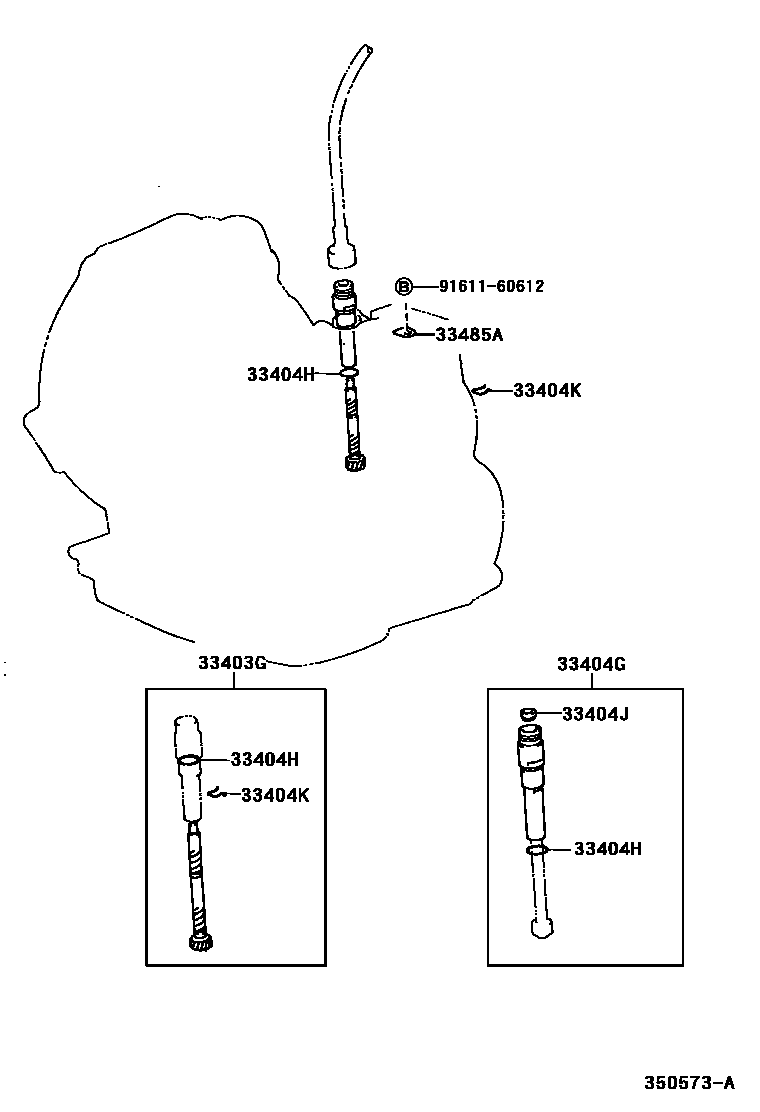

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A132L 0002 1A240L,A241H,A241L 0003 1A245E

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19285iAE110..4FC..(LX,SEVIN)199505-200008

main33403-19295iAE110..4FC..XEVIN199505-200008

main33403-19305iEE111..3FC199505-200008

main33403-19425iAE114..4FC199505-200008

main33403-19465iAE111..4FC199505-200008

main33403-39115iCE110..4FC199505-200008

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-12030iAE110..4FC199505-200008

main33404-12040iAE114..4FC199505-200008

main33404-16010iCE110,113..4FC199505-200008

main33404-32010iEE111..3FC199505-200008

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iAE114..4FC199505-200008

main96711-24018iCE110,113,EE111..ATM199505-200008

main96711-24030iAE110..4FC199505-200008

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iAE110,114,CE110,113,EE111..ATM199505-200008

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iAE11#,CE110,EE111..ATM199505-200008

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-12020iAE114..4FC199505-200008

main33485-14010iCE110,113,EE111..ATM199505-200008

main33485-30020iAE110..4FC199505-200008

9161160612

main91611-60612

7 parts on this diagram · 3 diagrams in section
