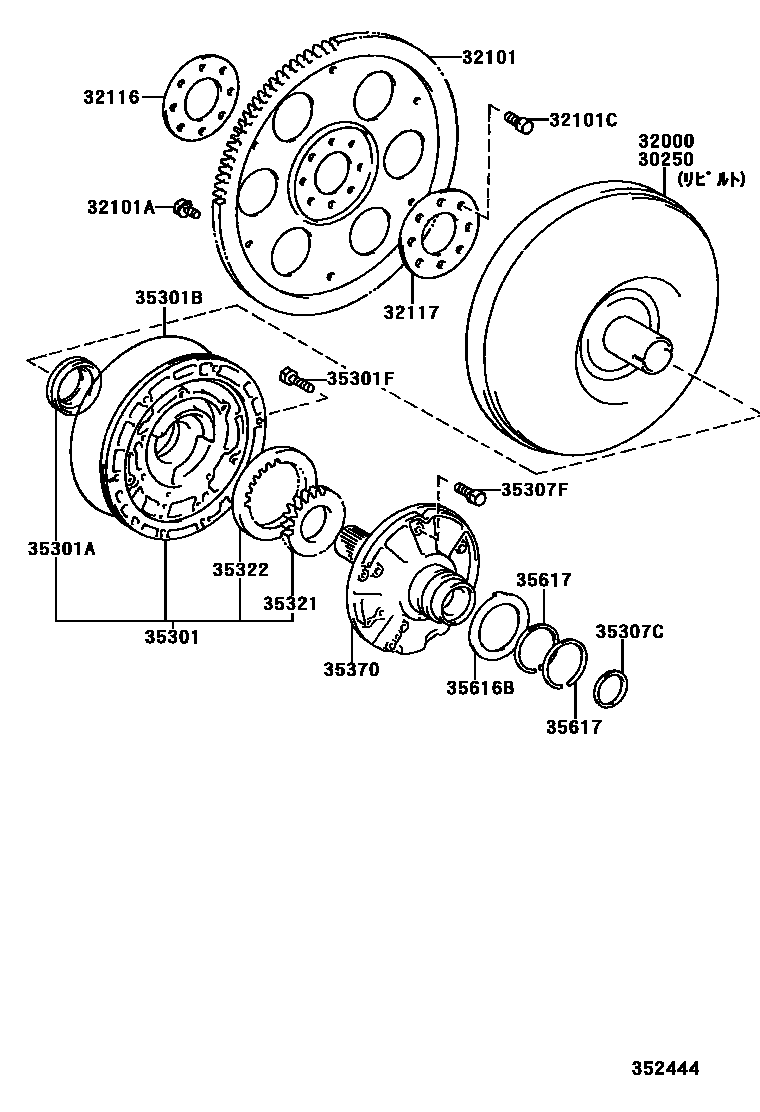

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-12080iCE110..4FC199505-199704

main30250-12190iAE111..4FC199505-199704

main30250-12300iAE114..4FC199704-200008

main30250-16120iAE110..4FC199505-199605

main30250-20160iAE110..4FC199704-200008

main30250-20290iAE111..4FC199704-200008

main30250-32051iCE113..4FC199804-200008

32000CONVERTER ASSY, TORQUE

main32000-12080iCE110..4FC199704-199804

main32000-12190iAE111..4FC199505-199704

main32000-12300iAE114..4FC199704-200008

main32000-16060iAE114..4FC199505-199704

main32000-16070iEE111..3FC199505-199704

main32000-16120iAE110..4FC199505-199605

main32000-20160iAE110..4FC199605-199704

main32000-20290iAE111..4FC199704-200008

main32000-32051iCE113..4FC199804-200008

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-10022iEE111..3FC199505-199704

main32101-12060iAE110,114..4FC199704-200008

main32101-12070iCE110..4FC199505-199704

main32101-17010iAE111..4FC199704-200008

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iAE11#,CE110,113,EE111..ATM199704-200008

main90119-08498×5iAE11#,CE110,113,EE111..ATM199704-200008

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×6iAE11#,EE111..ATM199505-199704

main90109-10037×8iCE110..4FC199505-199704

32116SPACER, DRIVE PLATE, FRONT

main32116-10020iEE111..3FC199704-200008

main32116-12010iAE110,114..4FC199704-200008

main32116-17010iAE111..4FC199704-200008

main32116-20030iCE110,113..4FC199704-200008

32117SPACER, DRIVE PLATE, REAR

main32117-10010iEE111..3FC199704-200008

main32117-12010iAE110,114..4FC199704-200008

main32117-17010iAE111..4FC199704-200008

main32117-20040iCE110..4FC199505-199704

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-12010iAE114..4FC199505-199704

main35035-16040iEE111..3FC199903-200002

main35035-20010iAE110,111,CE110,113..4FC199704-200008

main35035-32010iEE111..3FC199505-199704

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iAE11#,CE113..4FC199903-200008

main90311-38064iEE111..3FC199903-200002

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99024iAE11#,CE110,EE111..ATM199505-199704

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08050×7iEE111..3FC199505-199704

main90105-08198×6iAE11#,CE110,113..4FC199704-200008

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-12080iAE110,114,CE110,113..4FC199801-200008

main35789-32020iAE110,114,CE110,EE111..ATM199505-199704

main35789-32030iAE110,114,CE110,113,EE111..ATM199704-200008

35307FBOLT (FOR STATOR SHAFT)

main90119-06180×11iAE11#,CE110,EE111..ATM199505-199512

main90119-06808×11iAE11#,CE110,EE111..ATM199512-199704

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12020iAE114..4FC199704-200008

main35321-12030iAE114..4FC199505-199704

main35321-12040iAE114..4FC199505-199704

main35321-12050iAE114..4FC199704-200008

main35321-12060iAE114..4FC199704-200008

main35321-12070iAE110,111,CE110,113,EE111..ATM199704-200008

main35321-12080iAE110,111,CE110,EE111..ATM199505-199704

main35321-12090iAE110,111,CE110,113,EE111..ATM199704-200008

main35321-12100iAE110,111,CE110,EE111..ATM199505-199704

main35321-12110iAE110,111,CE110,EE111..ATM199505-199704

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12010iAE114..4FC199505-199704

main35322-12020iAE114..4FC199704-200008

main35322-12030iAE114..4FC199704-200008

main35322-12040iAE114..4FC199704-200008

main35322-12050iAE114..4FC199704-200008

main35322-12060iAE110,111,CE110,113,EE111..ATM199704-200008

main35322-12070iAE110,111,CE110,113,EE111..ATM199704-200008

main35322-12080iAE110,111,CE110,113,EE111..ATM199704-200008

main35322-12090iAE110,111,CE110,113,EE111..ATM199704-200008

main35322-12100iAE110,111,CE110,EE111..ATM199505-199704

35370SHAFT ASSY, STATOR

main35370-12040iAE110,114,CE110,113,EE111..ATM199704-200008

main35370-12050iAE111..4FC199704-200008

35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)

main35616-32010iAE11#,CE110,EE111..ATM199505-199704

35617RING, CLUTCH DRUM OIL SEAL

main35617-32011×2iAE11#,CE110,EE111..ATM199505-199704

18 parts on this diagram · 1 diagram in section
