TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

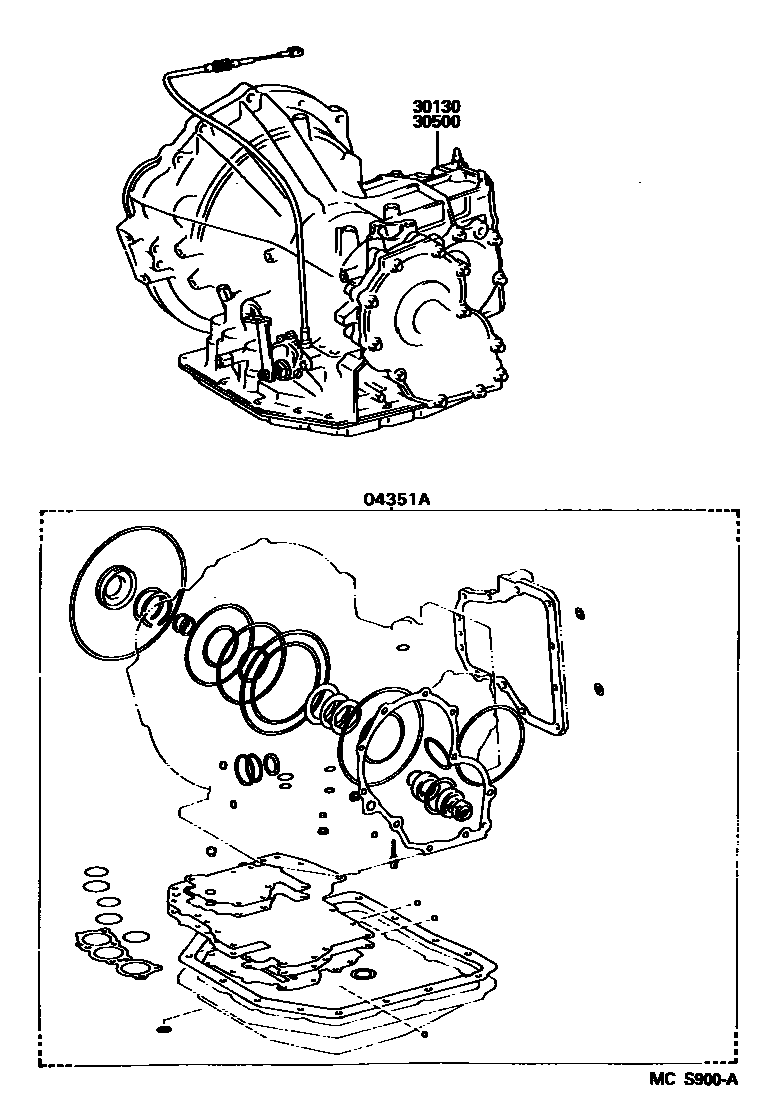

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-12070i199505-199704

main04351-12100i199704-200008

main04351-12110i199505-199704

main04351-12150i199706-199803

main04351-12151i199803-200008

main04351-16070i199505-199704

30130TRANSAXLE ASSY, REBUILT

main30130-1A050i199505-199704

main30130-1A120i199505-199704

main30130-1A150i199505-199605

main30130-1A160i199505-199702

main30130-1A161i199702-199704

main30130-1A340i199605-199704

main30130-1A440i199704-200008

main30130-1A460i199704-199804

main30130-1A470i199704-200008

main30130-1A510i199804-200008

main30130-1A560i199704-200008

30500TRANSAXLE ASSY, AUTOMATIC

main30500-1A050i199505-199704

main30500-1A120i199505-199704

main30500-1A150i199505-199605

main30500-1A160i199505-199702

main30500-1A161i199702-199704

main30500-1A340i199605-199704

main30500-1A440i199704-200008

main30500-1A460i199704-199804

main30500-1A470i199704-200008

main30500-1A510i199804-200008

main30500-1A560i199704-200008

3 parts on this diagram · 3 diagrams in section
