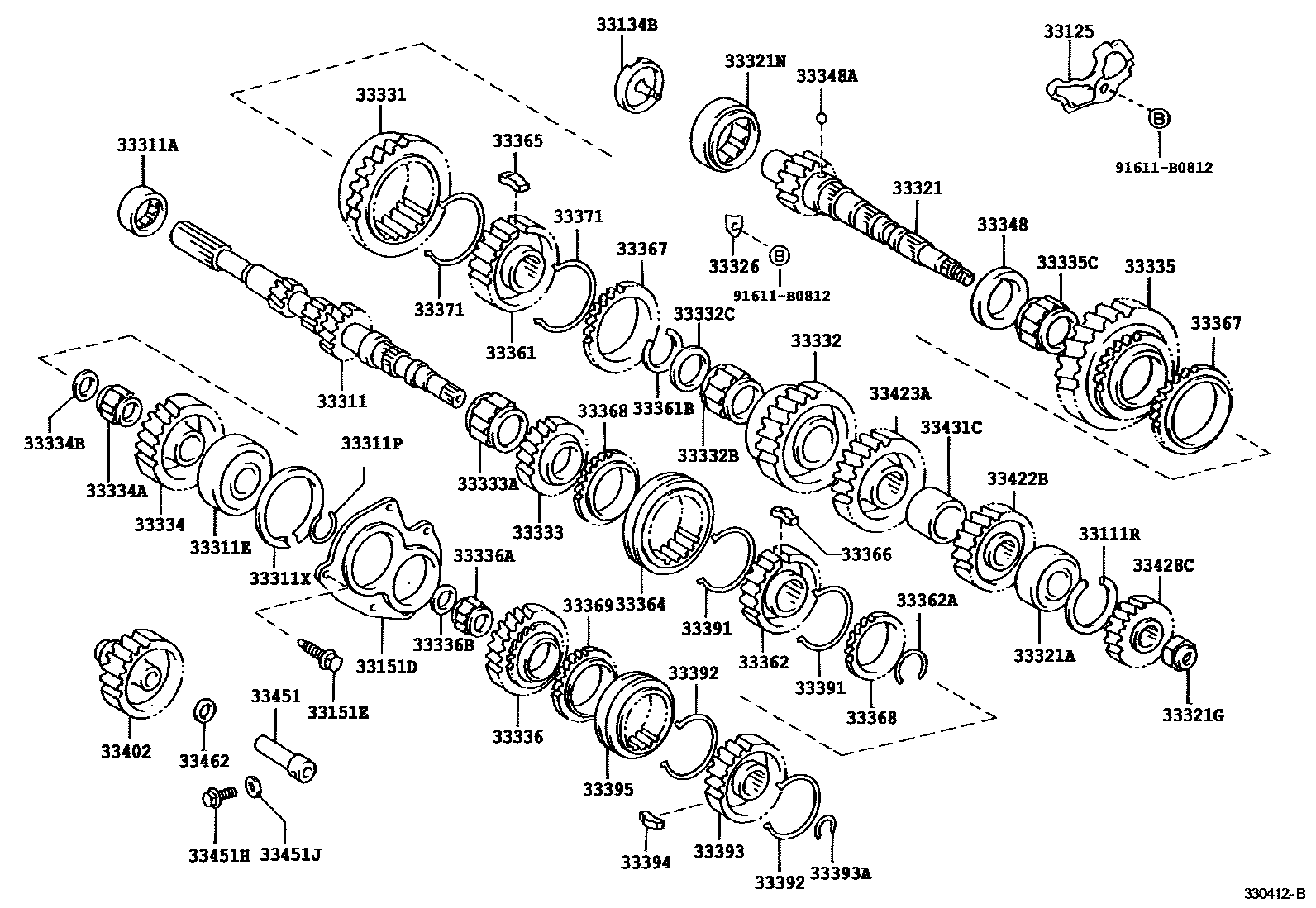

TRANSMISSION GEAR (MTM)
33111RRING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING)
33134BCOVER, OUTPUT SHAFT(MTM)
33151EBOLT(FOR REAR BEARING RETAINER)
33311ABEARING (FOR INPUT SHAFT FRONT)
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
33311XRING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING)
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33326PLATE, BEARING LOCK
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33332CSPACER (FOR 2ND GEAR BEARING)
33333GEAR, 3RD
sub33034-12110
sub33034-12120
sub33034-12111
sub33368-12150
sub33368-12160
sub33368-12170
sub33368-12220
sub33368-12230
sub33368-12240
sub33368-12250
sub33368-12260
sub33368-12270
sub33368-12280
sub33368-12290
sub33034-12121
sub33368-12150
sub33368-12160
sub33368-12170
sub33368-12220
sub33368-12230
sub33368-12240
sub33368-12250
sub33368-12260
sub33368-12270
sub33368-12280
sub33368-12290
sub33034-12141
sub33368-12150
sub33368-12160
sub33368-12170
sub33368-12220
sub33368-12230
sub33368-12240
sub33368-12250
sub33368-12260
sub33368-12270
sub33368-12280
sub33368-12290
sub33034-28031
33334GEAR, 4TH
sub33035-12071
sub33035-12081
sub33035-12091
sub33035-20150
sub33035-20160
sub33035-20180
sub33035-20150
sub33035-20180
sub33035-42020
33334BSPACER (FOR 4TH GEAR BEARING)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
sub33036-12170
sub33036-12160
sub33036-12170
sub33036-12190
sub33036-20070
sub33036-12150
sub33336-42030
sub33336-42040
33336BSPACER (FOR 5TH GEAR BEARING)
33348WASHER, 1ST GEAR THRUST
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
33362HUB, TRANSMISSION CLUTCH, NO.2
TYPE 2(*94)
sub33362-12031
sub33362-12050
sub33362-28H00
sub33362-28022
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
33367RING, SYNCHRONIZER, NO.1
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
OUTER RING SIDE
PULL RING SIDE
OUTER RING SIDE
PULL RING SIDE
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
33428CGEAR, 5TH DRIVEN
sub33428-12031
sub33428-42040
sub33428-12041
sub33428-42030
sub33428-12110
sub33428-12100
sub33428-12050
sub33428-12130
33431CSPACER, OUTPUT GEAR
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
33462WASHER, REVERSE IDLER THRUST
91611B0812
main91611-B0812
58 parts on this diagram · 7 diagrams in section
