TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

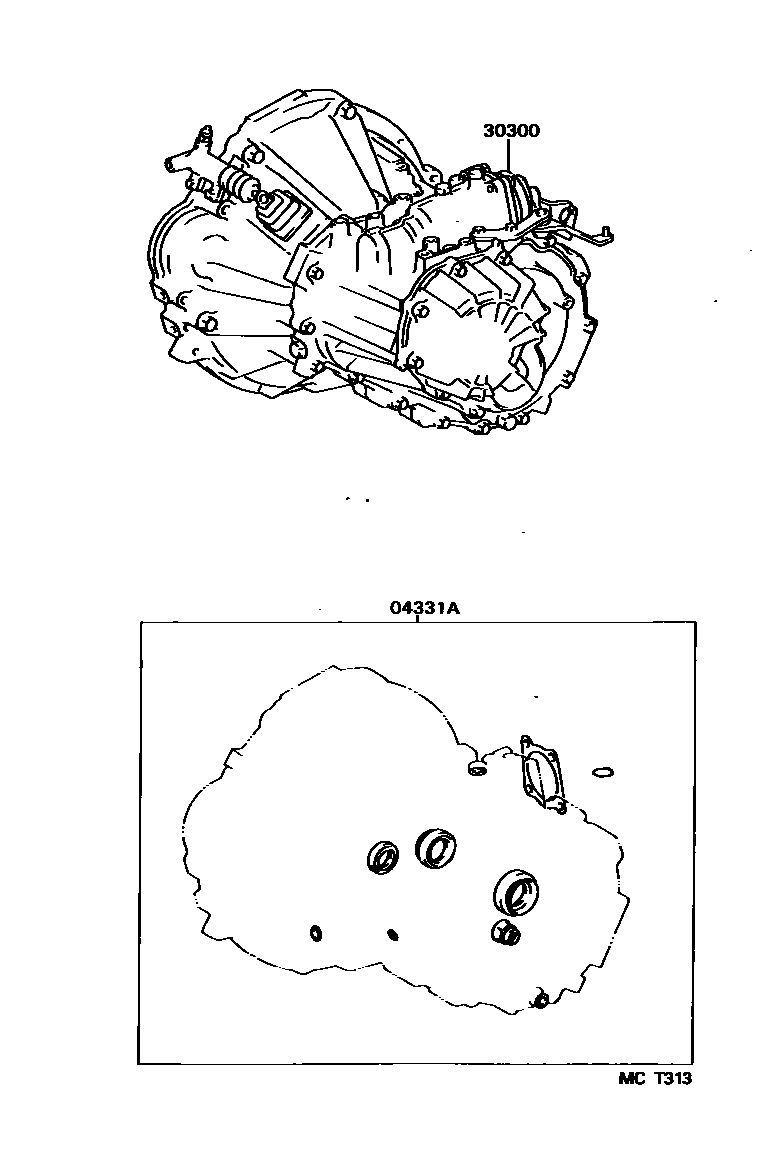

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12101i199505-199704

main04331-12110i199704-200008

main04331-12130i199704-200008

main04331-32011i199505-199704

main04331-32040i200002-200008

30300TRANSAXLE ASSY, MANUAL

main30300-12762i199505-199704

main30300-12791i199505-199704

main30300-12880i199505-199704

main30300-12890i199505-199704

main30300-1A010i199505-199605

main30300-1A050i199505-199704

main30300-1A120i199505-199704

main30300-1A250i199704-200008

main30300-1A280i199704-199804

main30300-1A290i199704-200008

main30300-1A320i199704-199804

main30300-1A330i199704-199804

main30300-1A340i199704-200008

main30300-1A620i199804-200008

main30300-1A630i199804-200008

main30300-1A640i199804-200008

2 parts on this diagram · 4 diagrams in section
