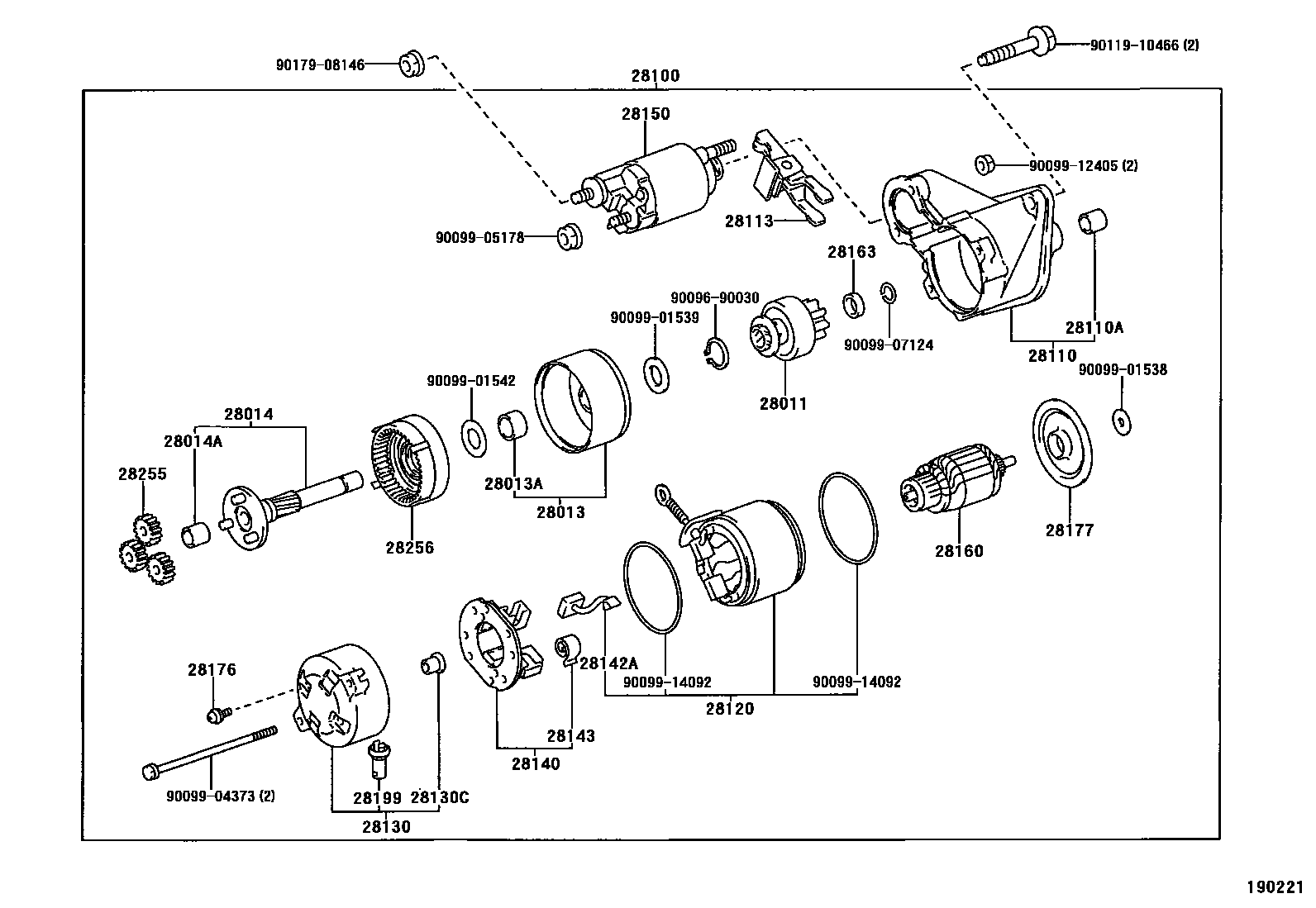

STARTER

0001 112V 0.8KW 0002 112V 1.0KW,�����,����� ��� 0003 112V 1.0KW 0004 112V 1.0KW 0005 112V 1.4KW 0006 112V 2.2KW,�����,����� ��� 0007 112V 0.8KW 0008 112V 1.0KW,�����,����� ���

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i4AFE,5AFE,4EFE..AE11#,EE111199505-200008

main28011-64010i2C,3CE..CE11#199505-200008

sub28011-67030

main28011-64130i2C..CE11#199505-200008

main28011-70020i4AFE,5AFE,4EFE..AE11#,EE111199505-200008

28013BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1

main28013-70020i4AFE,5AFE,4EFE..AE11#,EE111199505-200005

sub28013-70030

main28013-70030i4EFE..EE111200005-200008

28013ABEARING, STARTER CENTER & SHOCK ABSORBER, NO.2

main90099-10181i4AFE,5AFE,4EFE..AE11#,EE111199505-200008

28014SHAFT SUB-ASSY, PLANET CARRIER

main28014-70020i4AFE,5AFE,4EFE..AE11#,EE111199505-200008

28014ABUSH OR BEARING, PLANET CARRIER SHAFT

main90099-10180i4AFE,5AFE,4EFE..AE11#,EE111199505-200008

28100STARTER ASSY

main28100-11080i4EFE..EE111199505-199704

sub28100-11160

main28100-11100i4EFE..EE111199505-199704

main28100-11140i4EFE..EE111199704-200008

sub28100-11130

main28100-11160i4EFE..EE111199704-200008

main28100-16150i4AFE,5AFE..AE110,111199505-199704

sub28100-16270

main28100-16170i4AGE..AE111199704-200008

sub28100-16240

main28100-16190i4AFE,5AFE..AE110,114199704-200008

main28100-16230i4A#,5AFE..AE11#199505-200008

main28100-16260i4AFE..AE114199505-199704

main28100-64340i2C..CE11#199505-200008

sub28100-64341

main28100-64350i2C..CE11#199505-200008

28110HOUSING ASSY, STARTER DRIVE

main28110-10040i4EFE..EE111199505-199704

main28110-11010i4EFE..EE111199505-200008

main28110-16020i4AGE..AE111199704-200008

main28110-16071i4A#,5AFE..AE11#199505-200008

main28110-16080i4AFE..AE114199505-199704

main28110-16150i4AFE,5AFE..AE110,111199505-199704

main28110-64340i2C..CE11#199505-200008

main28115-64350i2C..CE11#199505-200008

sub28115-64140

28110ABEARING(FOR STARTER HOUSING)

main90099-10171i4AFE,5AFE,4EFE..AE11#,EE111199505-200008

28113LEVER, STARTER PINION DRIVE

main28113-16070i4A#,5AFE,4EFE..AE11#,EE111199505-200008

28120YOKE ASSY, STARTER

main28120-26071i4AFE,5AFE,4EFE..AE11#,EE111199505-200008

main28120-55050i2C,3CE..CE11#199708-200008

main28120-64040i2C,3CE..CE11#199505-200008

main28120-64130i2C..CE11#199505-199708

main28120-70020i4A#,5AFE,4EFE..AE11#,EE111199505-200008

main28120-70050i4AFE,5AFE,4EFE..AE110,114,EE111199704-200008

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-10040i4AFE,5AFE,4EFE..AE110,111,EE111199505-199704

main28130-11010i4EFE..EE111199505-200008

main28130-16070i4A#,5AFE..AE11#199505-200008

main28130-16080i4AFE..AE114199505-199704

main28130-64130i2C,3CE..CE11#199505-200008

main28130-72010i4AGE..AE111199704-200008

28130CBEARING, STARTER FLANGE

main90099-10183i4AFE,5AFE,4EFE..AE11#,EE111199505-200008

28140HOLDER ASSY, STARTER BRUSH

main28140-26070i4AFE,5AFE,4EFE..AE11#,EE111199505-200008

main28140-64040i2C,3CE..CE11#199505-200008

main28140-64130i2C..CE11#199505-200008

main28140-70020i4AFE,5AFE,4EFE..AE11#,EE111199505-200008

28142ASTARTER KIT

main28142-70020i4AFE,5AFE,4EFE..AE11#,EE111199505-200008

28143SPRING, STARTER BRUSH

main28143-70020i4AFE,5AFE,4EFE..AE11#,EE111199505-200008

main90099-17112i2C,3CE..CE11#199505-200008

main90099-17115i2C..CE11#199505-200008

28150SWITCH ASSY, MAGNET STARTER

main28150-11080i4EFE..EE111199505-199704

main28150-11100i4EFE..EE111199505-199704

main28150-16150i4AFE,5AFE..AE110,111199505-199704

main28150-16160i4AFE,5AFE..AE11#199505-200008

main28150-16170i4AGE..AE111199704-200008

main28150-16260i4AFE..AE114199505-199704

main28150-64300i2C..CE11#199505-199708

sub28150-64320

main28150-64310i2C,3CE..CE11#199505-199805

main28150-64341i2C,3CE..CE11#199708-200008

main28150-64390i3CE..CE11#199805-199904

sub28150-64310

28160ARMATURE ASSY, STARTER

main28160-26071i4AGE..AE111199505-200008

main28160-64041i2C..CE11#199505-200008

main28160-70021i4AFE,5AFE,4EFE..AE11#,EE111199505-200008

main28160-70050i4AFE,5AFE,4EFE..AE110,114,EE111199704-200008

main28160-74070i2C..CE11#199505-200008

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-70020i4AFE,5AFE,4EFE..AE11#,EE111199505-200008

28176SCREW, STARTER

main28176-15090i4AFE,5AFE,2C,4EFE..AE11#,CE11#,EE111199505-199510

sub28176-87701

main90099-00270i4EFE..EE111199704-200008

main90099-00270i4AFE,5AFE,2C,4EFE..AE11#,CE11#,EE111199510-199704

28177PLATE(FOR STARTER ARMATURE)

main28177-70020i4AFE,5AFE,4EFE..AE11#,EE111199505-200008

28199COVER, STARTER

main28199-46080i4AFE,5AFE,2C,3CE..AE110,114,CE11#199505-200008

main28199-46080i4AFE,5AFE..AE11#199505-199704

main28199-74110i2C..CE11#199505-200008

28255GEAR, PLANET

main28255-70020i4AFE,5AFE,4EFE..AE11#,EE111199505-200008

28256GEAR, STARTER INTERNAL

main28256-70020i4AFE,5AFE,4EFE..AE11#,EE111199505-200008

9009690030

main90096-90030

9009901538

main90099-01538

9009901539

main90099-01539

9009901542

main90099-01542

9009904373

main90099-04373

9009905178

main90099-05178

9009907124

main90099-07124

9009912405

main90099-12405

9009914092

main90099-14092

9011910466

main90119-10466

9017908146

main90179-08146

34 parts on this diagram · 8 diagrams in section
