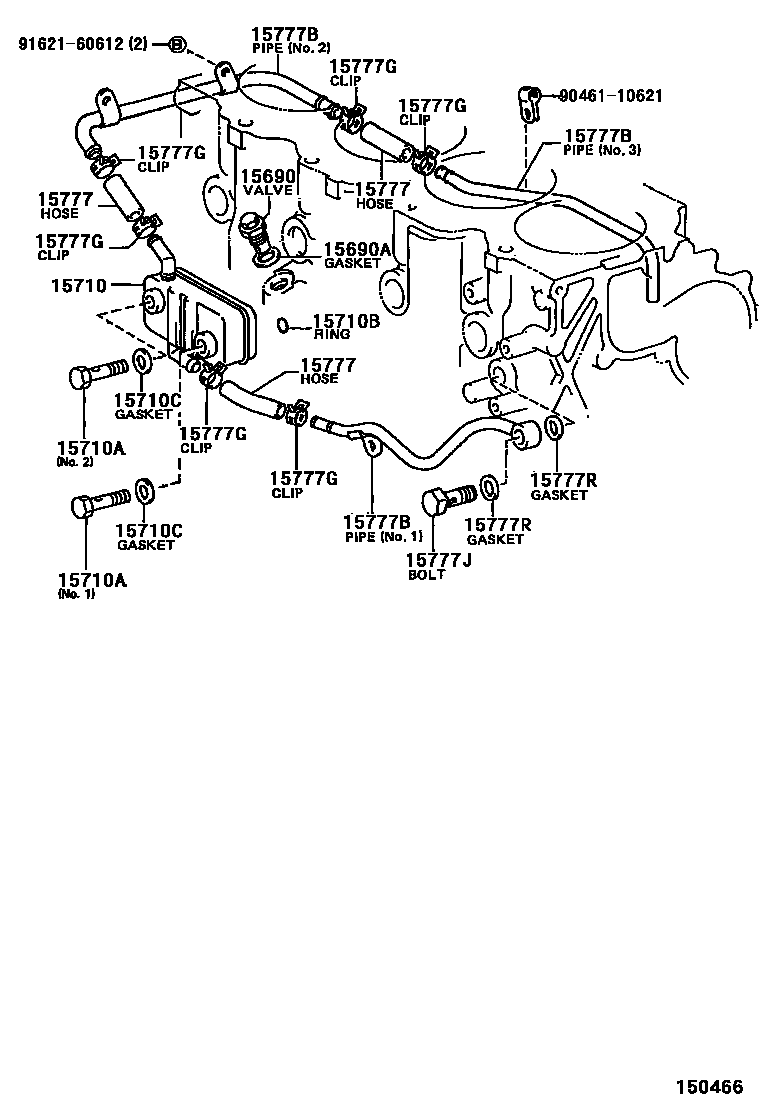

ENGINE OIL COOLER

0001 1 0002 1

15690VALVE ASSY, OIL COOLER RELIEF

main15690-55020i2C..CE114199505-199608

main15690-55030i2C..CE114199608-199804

sub15690-55020

main15690-64010i2C..CE110199505-200008

sub15690-64011

main15695-64020i3CE..CE116199804-200008

15690AGASKET(FOR OIL COOLER RELIEF VALVE)

main90430-22003i2C..CE110199505-200008

15710COOLER ASSY, OIL

main15710-64010i2C..CE110199505-200008

main15710-64050i2C..CE114199505-199804

main15710-64190i3CE..CE116199804-200008

15710ABOLT, UNION(FOR OIL COOLER)

main90401-18009i2C..CE110199505-200008

main90401-18011i2C..CE110199505-200008

15710BRING, O(FOR OIL COOLER)

main90301-22004i2C..CE110199505-200008

main90301-24006i2C..CE114199505-199804

15710CGASKET(FOR OIL COOLER)

main90301-61003i2C..CE114199505-199702

main90301-61004i2C..CE114199702-199704

main90301-61004i2C..CE114199704-199804

main90301-67004i3CE..CE116199804-200008

main90430-18021i2C..CE110199505-200008

15777HOSE, OIL COOLER

main90445-21006i2C..CE110199505-200008

15777BPIPE, OIL COOLER

main15767-64011i2C,3CE..CE110,113199505-200008

main15767-64041i2C..CE114199505-200008

main15768-64061i2C,3CE..CE114,116199505-200008

main15768-64071i2C..CE110199505-200008

main15769-64011i2C..CE11#199505-200008

15777GCLAMP OR CRIP, HOSE

main90467-20005i2C..CE110199505-200008

sub96134-41900

15777JBOLT, UNION(FOR OIL COOLER PIPE)

main90401-20004i2C..CE11#199505-200008

15777RGASKET(FOR OIL COOLER PIPE UNION BOLT)

main90430-20014i2C..CE11#199505-200008

9046110621

main90461-10621

9162160612

main91621-60612

13 parts on this diagram · 2 diagrams in section
