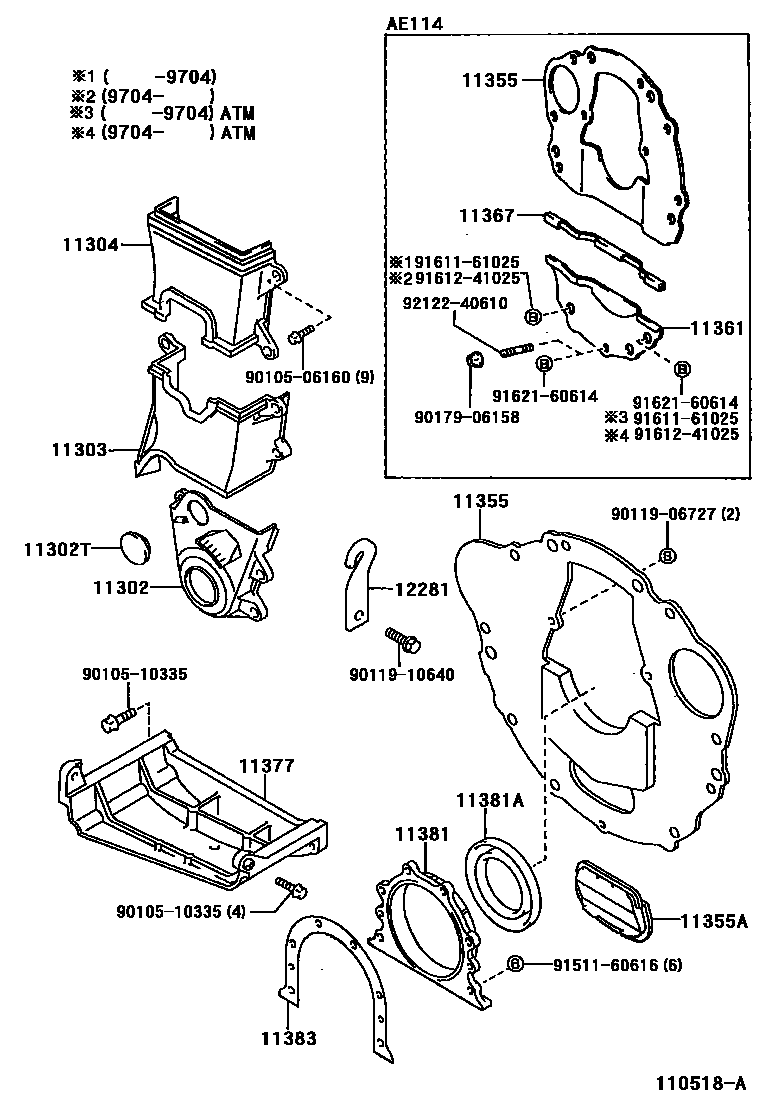

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-11062i4EFE..EE111199505-199704

main11302-11110i4EFE..EE111199704-200008

main11302-15050i4AFE,5AFE..AE11#199505-200008

11302TPLUG, HOLE

main90950-01783i4AFE,5AFE..AE11#199505-200008

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-11031i4EFE..EE111199505-200008

main11303-15050i4AFE,5AFE..AE110,114199505-200008

11304COVER, TIMING CHAIN OR BELT, NO.2

main11304-15030i4AFE,5AFE..AE110,114199505-200008

11355PLATE, REAR END

main11355-10011i4EFE..EE111..4F199505-199611

sub11355-10012

main11355-10012i4EFE..EE111..4F199611-200008

main11355-11011i4EFE..EE111..3FC199505-199611

sub11355-11012

main11355-11012i4EFE..EE111..3FC199611-200008

main11355-15070i4AGE,5AFE..AE110,111..MTM199505-200008

main11355-15080i4AGE,5AFE..AE110,111..4FC199505-200008

main11355-16010i4AFE..AE114199505-200008

main11355-64051i2C..CE11#..5F199505-200003

sub11355-64052

main11355-64052i3CE..CE11#..5F200003-200008

main11355-64061i2C,3CE..CE110,113..4FC199505-200003

sub11355-64062

main11355-64062i3CE..CE113..4FC200003-200008

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01264i4AFE,5AFE..AE110,111..4FC199505-200008

main90950-01548i4EFE..EE111..3FC199505-199804

main90950-01738i2C..CE110..4FC199505-200008

11361COVER, FLYWHEEL HOUSING UNDER

main11361-16040i4AFE..AE114199505-200008

11367GASKET, FLYWHEEL HOUSING UNDER

main11367-15030i4AFE..AE114199505-200008

11377STIFFENER, REAR END PLATE

main11377-15012i4AFE,5AFE..AE110,111199505-200008

11381RETAINER, ENGINE REAR OIL SEAL

main11381-10021i4EFE..EE111199505-200008

main11381-15010i4A#,5AFE..AE11#199505-200008

main11381-64012i2C..CE11#199505-199812

sub11381-64020

main11381-64020i3CE..CE11#199812-200008

11381ASEAL, ENGINE REAR OIL

main90311-70007i4AFE,5AFE..AE11#199505-200008

main90311-75009i4EFE..EE111199505-200008

main90311-90008i2C..CE11#199505-200008

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-16010i4A#,5AFE..AE11#199505-200008

12281HANGER, ENGINE, NO.1

main12281-11031i4EFE..EE111199505-200008

main12281-15050i4AFE,5AFE..AE110,114199505-200008

main12281-16041i4AGE..AE111199704-200008

9010506160

main90105-06160

9010510335

main90105-10335

9011906727

main90119-06727

9011910640

main90119-10640

9017906158

main90179-06158

9151160616

main91511-60616

9161161025

main91611-61025

9161241025

main91612-41025

9162160614

main91621-60614

9212240610

main92122-40610

23 parts on this diagram · 4 diagrams in section
