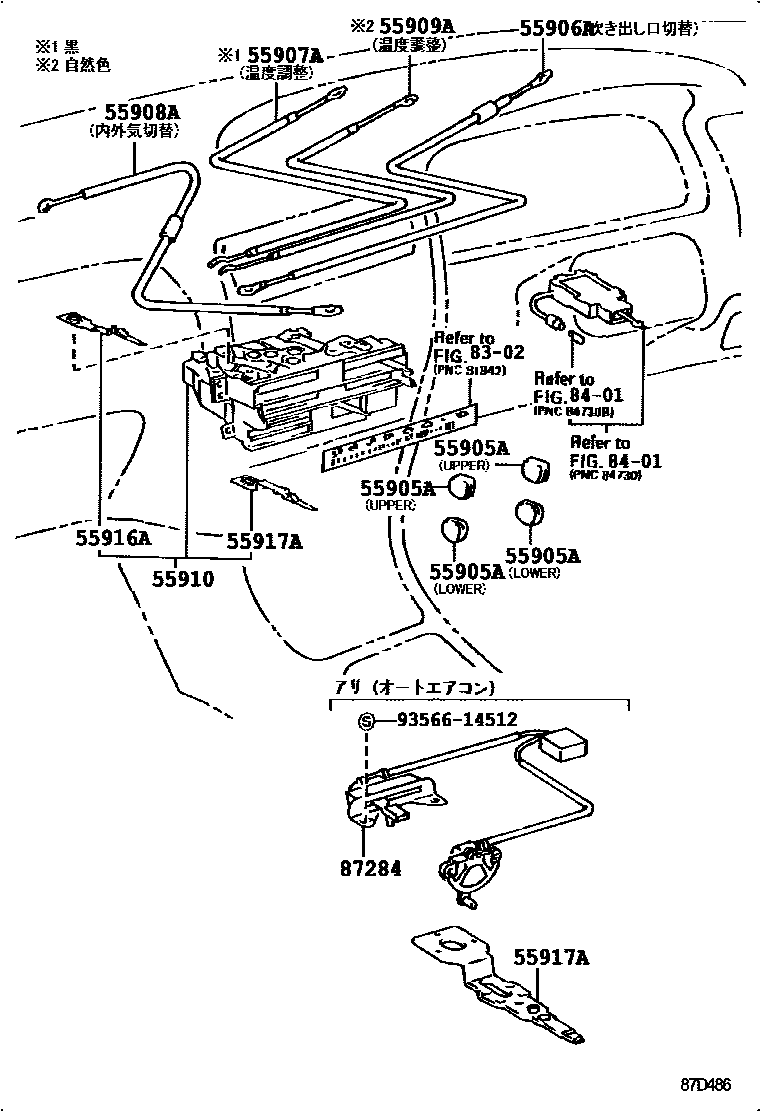

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1��� ������(�����) 0002 1��� ������(���) 0004 1������ 0005 1������ 0006 1�-� ���� ���

55905AKNOB, HEATER CONTROL

main55905-12140×2iAE100,104,CE10#,EE10#..CTD,DX,L,LX,XE,XL199106-199205

UPPER

main55905-12150×2iAE100,104,109,CE10#,EE10#199205

LOWER

main55905-12260iAE10#,CE100,104..GT,SEG,SEL199106-199402

main55905-12261iAE10#,CE100,104..GT,SEG,SEL; AE100,104,CE100,104..XE199402-199505

main55905-12270iAE10#,CE100,104..GT,SEG,SEL199106-199505

main55905-12280iAE10#,CE100,104..GT,SEG,SEL199106-199505

main55905-12370iAE10#,CE100,104..GT,SEG,SEL199106-199505

FACE

main55905-12380iAE100,104,CE100,104..XE199205-199505

main55905-12390iAE10#,CE100,104..GT,SEG,SEL199106-199505

FOOT

main55905-12400iAE100,104,CE100,104..XE199205-199505

main55905-12410iAE100,104,CE100,104..XE199205-199505

main55905-12420iAE10#,CE100,104..GT,SEG,SEL199106-199505

REC-FRESH

main55905-12430iAE10#,CE100,104..GT,SEG,SEL199106-199505

ECON

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-12330iAE100,104,CE10#,EE10#..CTD,DX,L,LX,XE,XL199106-199205

main55906-12350iAE100,104,109,CE10#,EE10#199212

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-12360iAE100,104,CE10#,EE10#199205-199305

main55907-12361iAE100,104,109,CE10#,EE10#199305

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-12260iAE100,104,CE10#,EE10#..CTD,DX,L,LX,XE,XL199106-199205

main55908-12280iAE100,104,109,CE10#,EE10#199212

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-12240iAE100,104,CE10#,EE10#..CTD,DX,L,LX,XE,XL199106-199205

main55909-12270iAE100,104,109,CE10#,EE10#199305

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-12550iAE100,104,CE10#,EE10#..CTD,DX,L,LX,XE,XL199106-199205

main55910-12551iAE100,104,CE10#,EE10#199212-199305

main55910-12610iAE100,104,109,CE10#,EE10#199305

55916ALEVER, COOLER CONTROL

main55916-12050iAE100,104,109,CE10#,EE10#199212

55917ALEVER, TEMPERATURE DAMPER CONTROL

main55917-12110iCE100..LX;EE101..LX,XE;AE100,104,CE104..DX,LX199305-199505

8302INDICATOR

→ Go to FIG 83-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87284RESISTOR SUB-ASSY, VARIABLE

main88032-12130iAE100,104,CE100,104,EE101..LX,XE199106-199205

9356614512

main93566-14512

12 parts on this diagram · 5 diagrams in section
