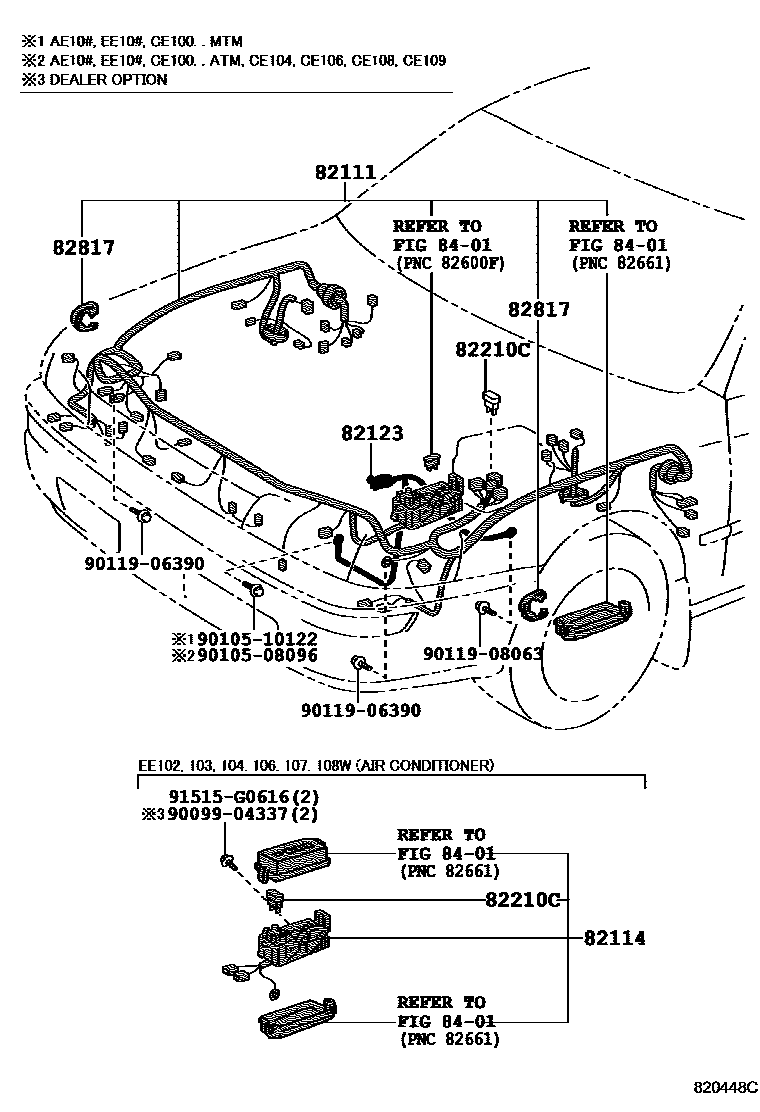

82111WIRE, ENGINE ROOM MAIN

main82111-13280iEE106,107,108..MTM..(CTD,DX,L)199109-199401

main82111-13290iEE106,107,108..MTM..(CTD,DX,L); EE108..3FC;EE106,107..3FC,5F199109-199401

main82111-13310iAE109199605-199704

main82111-13370iEE102,103,104..MTM..(DX,DXJ,L)199401-199411

main82111-13371iEE102,103,104..MTM..(DX,DXJ,L)199411-199704

main82111-13380iEE102,103,104..MTM..(DX,DXJ,L); EE104..3FC;EE102,103..3FC,5F199401-199411

main82111-13381iEE104..3FC;EE102,103..3FC,5F199411-199704

main82111-13410iCE10#199508-199704

main82111-13450iAE109199704

main82111-13470iCE10#199704-199804

main82111-13471iCE102; CE105,107199804

main82111-13500iEE102,103; EE104199704

main82111-13550iAE109199804

main82111-13560iCE102; CE105,107199804

main82111-13570iEE102,103; EE104199804

main82111-1E210iAE100,101..DX,LX,SEG,SEL,XE199106-199411

main82111-1E211iAE100,101..DX,LX,SEG,SEL,XE199411-199505

main82111-1E220iAE101,EE101..DX,GT,LX,XE199106-199411

main82111-1E221iAE101,EE101..DX,GT,LX,XE199411-199505

main82111-1E270iAE101..SEG199205-199305

main82111-1E280iAE10#..SEG,SEL199106-199205

main82111-1E290iCE106,108,109199305-199401

main82111-1E300iCE100,104..SEL199106-199205

main82111-1E310iCE100,104199106-199205

main82111-1E311iCE100,104199205-199305

main82111-1E410iAE10#,EE101199106-199305

main82111-1E770iAE100,101,EE101199305-199309

main82111-1E771iAE100,101,EE101199309-199411

main82111-1E772iAE100,101,EE101199411-199505

main82111-1E780iAE104199305-199411

main82111-1E781iAE104199411-199505

main82111-1E790iAE104199305-199308

main82111-1E791iAE104199308-199411

main82111-1E792iAE104199411-199505

main82111-1E800iCE100,104199305-199401

main82111-1E801iCE10#199411-199508

main82111-1E810iCE100199305-199309

main82111-1E811iCE100199309-199411

main82111-1E812iCE100199411-199505

main82111-1E820iCE104199305-199309

main82111-1E821iCE104199309-199411

main82111-1E822iCE104199411-199505

82114WIRE, ENGINE ROOM, NO.4

main82114-13010iEE106,107,108199109-199401

main82114-13020iEE102,103,104199401-199508

main82114-13021iEE10#199508

82123WIRE, ENGINE, NO.3

main82123-12180iAE10#,EE10#..4F,4FC,5F199106-199505

main82123-12190iAE100,EE10#..3FC199106-199505

main82123-12200iAE109,EE10#..4F,4FC,5F199505-199704

main82123-12210iEE10#..3FC199505-199704

main82123-12260iCE10#199106-199505

main82123-12290iAE109,EE10#..4F,4FC,5F199704

main82123-12300iEE10#..3FC199704

main82123-12330iCE10#199704

main82123-12340iCE10#199505-199704

82210CFUSIBLE LINK

main90982-08188×4iAE10#,CE10#,EE10#199106-199704

main90982-08202iEE106,107,108..MTM199109-199401

main90982-08203iEE103,104..MTM;AE101,104,109,EE102..(4F,4FC)..(DX,DXJ,SEG,SEL,XE)199106-199704

main90982-08206iCE10#199106-199804

main90982-08228iAE10#,CE100,104,EE101199106-199804

main90982-08246iAE100,101,CE100,EE101;EE103,104,107,108..3FC;AE104,109,EE102,106..3FC,5F199106-199704

main90982-08257iEE106,107,108..3FC;AE10#,CE102,105,107,EE101,102,103,104199106

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-1A090×2iAE10#,CE10#,EE10#199106-199411

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9009904337

main90099-04337

9010508096

main90105-08096

9010510122

main90105-10122

9011906390

main90119-06390

9011908063

main90119-08063

91515G0616

main91515-G0616

12 parts on this diagram · 15 diagrams in section
