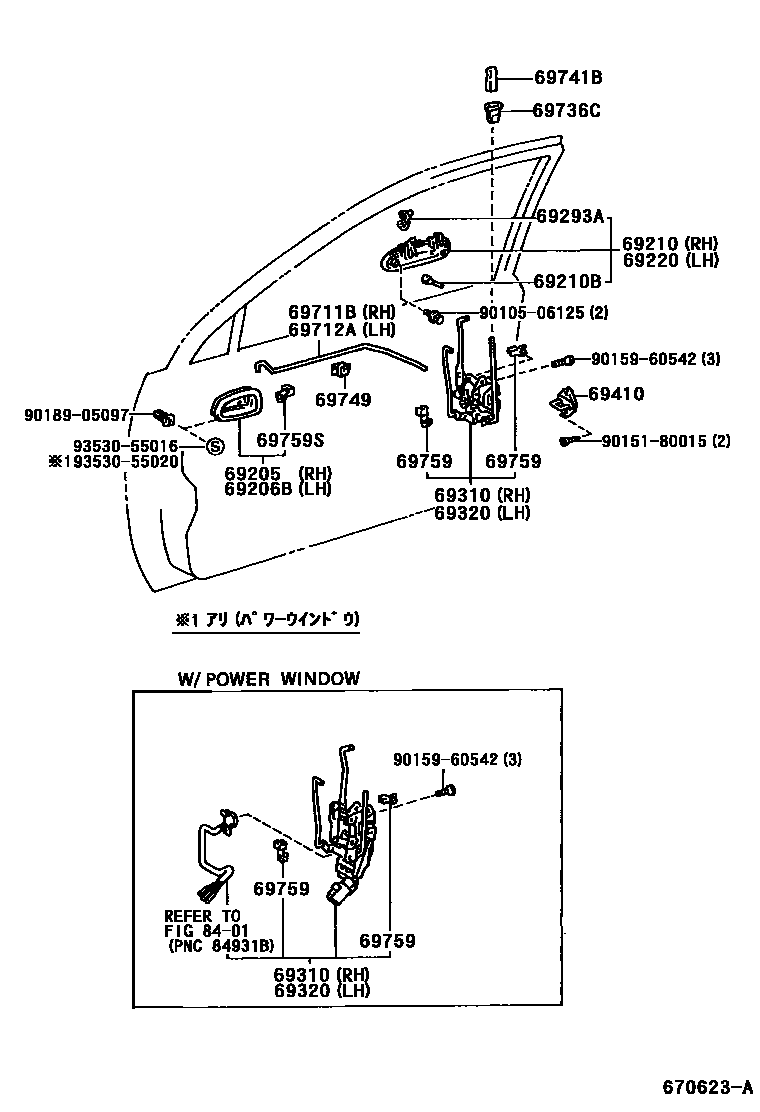

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12130-02iAE100,104,CE100,104,EE101..LX199106-199505

TAUPE,TRIM9#

main69205-12130-03iAE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL199106-199704

SHADOW GRAY,TRIM1#

main69205-12130-04iAE100,104,CE100,104,EE101..LX199106-199305

DARK BLUE,TRIM8#

main69205-12130-P0iAE109,CE10#,EE10#199704-200206

SHADOW GRAY,TRIM1#

main69205-12140-02iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main69205-12140-03iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199505

SHADOW GRAY,TRIM1#

main69205-12140-04iAE100,104,CE100,104,EE101..LX199205-199305

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12130-02iAE100,104,CE100,104,EE101..LX199106-199505

TAUPE,TRIM9#

main69206-12130-03iAE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XL199106-199704

SHADOW GRAY,TRIM1#

main69206-12130-04iAE100,104,CE100,104,EE101..LX199106-199305

DARK BLUE,TRIM8#

main69206-12130-P0iAE109,CE10#,EE10#199704-200206

SHADOW GRAY,TRIM1#

main69206-12140-02iAE100,104,CE100,104,EE101..LX199205-199305

main69206-12140-03iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199505

SHADOW GRAY,TRIM1#

main69206-12140-04iAE100,104,CE100,104,EE101..LX199205-199305

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-02010iAE109,CE10#,EE10#199704-200008

main69210-12160iAE109,CE10#,EE10#199704-200008

main69210-12170-03iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199505

DARK BLUEISH GRAY M,183

main69210-12170-04iAE100,104,CE100,104,EE101..LX199110-199210

main69210-12170-05iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199210

LIGHT BEIGE M,3K9

main69210-12170-07iAE100,104,CE100,104,EE101..LX199110-199505

main69210-12170-08iAE100,104,CE100,104,EE101..LX199110-199210

main69210-12170-13iAE10#,CE100,104,EE101..GT,SEG,SEL,XE; AE100,104,CE100,104,EE101..LX199205-199210

main69210-12170-22iAE100,104,CE100,104,EE101..LX199110-199205

main69210-12170-34iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199209

RED MICA M,3K4

main69210-12170-A0iAE10#,CE100,104,EE101..GT,SEG,SEL,XE; AE100,104,CE100,104,EE101..LX199210-199505

main69210-12170-B0iAE10#,CE100,104,EE101..GT,SEG,SEL,XE; AE100,104,CE100,104,EE101..LX199210-199505

main69210-12170-D2iAE10#,CE100,104,EE101..GT,SEG,SEL,XE; AE100,104,CE100,104,EE101..LX199209-199305

main69210-12170-D4iAE10#,CE100,104,EE101..SEG,SEL,XE; AE100,104,CE100,104,EE101..LX199210-199505

main69210-12170-G2iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199305-199505

MD GRAISHGREEN MC.GR,6N1

main69210-12170-J1iAE10#,CE100,104,EE101..GT,SEG,SEL,XE; AE100,104,CE100,104,EE101..LX199210-199305

main69210-12170-J4iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199305-199505

DARK BLUE MICA M,8G5

main69210-42070iAE109,CE10#,EE10#200008

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90080-54005×4iAE109,CE10#,EE10#199704-200008

main90541-04014×4iAE10#,CE10#,EE10#199106-199704

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-02010iAE109,CE10#,EE10#199704-200008

main69220-12160iAE100,109,CE100,106,108,109,EE10#..CTD,DX,DXJ,L,XL199305-199704

main69220-12170-03iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199505

DARK BLUEISH GRAY M,183

main69220-12170-04iAE100,104,CE100,104,EE101..LX199110-199210

main69220-12170-05iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199210

LIGHT BEIGE M,3K9

main69220-12170-07iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199505

GRAYISH GREEN M,6M3

main69220-12170-08iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199210

SUPER WHITE 2,040

main69220-12170-13iAE10#,CE100,104,EE101..GT,SEG,SEL,XE; AE100,104,CE100,104,EE101..LX199205-199210

main69220-12170-22iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199205

ROSE MICA M.GRAPHITE,3K5

main69220-12170-34iAE100,104,CE100,104,EE101..LX199110-199209

main69220-12170-A0iAE10#,CE100,104,EE101..GT,SEG,SEL,XE; AE100,104,CE100,104,EE101..LX199210-199505

main69220-12170-B0iAE10#,CE100,104,EE101..GT,SEG,SEL,XE; AE100,104,CE100,104,EE101..LX199210-199505

main69220-12170-D2iAE10#,CE100,104,EE101..GT,SEG,SEL,XE; AE100,104,CE100,104,EE101..LX199209-199305

main69220-12170-D4iAE10#,CE100,104,EE101..SEG,SEL,XE; AE100,104,CE100,104,EE101..LX199210-199505

main69220-12170-G2iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199305-199505

MD GRAISHGREEN MC.GR,6N1

main69220-12170-J1iAE10#,CE100,104,EE101..GT,SEG,SEL,XE; AE100,104,CE100,104,EE101..LX199210-199305

main69220-12170-J4iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199305-199505

DARK BLUE MICA M.,8G5

main69220-42070iAE109,CE10#,EE10#200008

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-01050iAE109,CE10#,EE10#199704-200008

main69293-01060iAE109,CE10#,EE10#199704-200008

main69293-12030iAE10#,CE10#,EE10#199106

main69293-12040iAE10#,CE10#,EE10#199106

69310LOCK ASSY, FRONT DOOR, RH

main69030-12190iAE100,104,CE100,104..XE199106-199205

main69030-12191iAE10#,CE100,104..GT,SEG,SEL; AE100,104,CE100,104,EE101..LX,XE199307-199309

main69030-12192iAE10#,CE100,104..GT,SEG,SEL; AE100,104,CE100,104,EE101..LX,XE199309-199402

main69030-12193iAE10#,CE100,104..GT,SEG,SEL; AE100,104,CE100,104,EE101..LX,XE199402-199505

main69310-12440iAE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XE,XL199106

69320LOCK ASSY, FRONT DOOR, LH

main69040-12190iAE100,104,CE100,104,EE101..LX,XE199205-199307

main69040-12191iAE100,104,CE100,104,EE101..LX,XE; AE101..GT199307-199309

main69040-12192iAE100,104,CE100,104,EE101..LX,XE; AE101..GT199309-199402

main69040-12193iAE100,104,CE100,104,EE101..LX,XE; AE101..GT199402-199505

main69040-12200iAE10#,CE100,104..SEG,SEL199106-199307

main69040-12201iAE10#,CE100,104..SEG,SEL199307-199309

main69040-12202iAE10#,CE100,104..SEG,SEL199309-199402

main69040-12203iAE10#,CE100,104..SEG,SEL199402-199505

main69320-12450iAE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XE,XL199106

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20070×2iAE10#,CE10#,EE10#199106-199305

main69410-87001×2iAE10#,CE10#,EE10#199305

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-12130iAE10#,CE10#,EE10#199106

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-12140iAE10#,CE10#,EE10#199106

69736CGUIDE, FRONT DOOR LOCKING LINK

main69736-12090×2iAE10#,CE100,104,EE101199106-199505

main69736-12100×2iCE108; EE108199109-199401

main69751-12020-03×2iCE106,108,109,EE106,107,108..CTD,DX,L199109-199206

SHADOW GRAY,TRIM1#

main69751-12060-B0×2iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L199206-200008

SHADOW GRAY,TRIM1#

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-87003-02×2iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main69741-87003-13×2iCE108; EE108199109-199401

main69741-87003-14×2iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

main69741-87003-P0×2iCE105,107..XL199804-200008

SHADOW GRAY,TRIM1#

main69741-90K00-43×2iCE106,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L199109-199605

GRAY,TRIM1#

main69741-90K00-B2×2iAE109,CE10#,EE10#..CTD,DX,DXJ,L199605-200008

SHADOW GRAY,TRIM1#

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12070×2iAE109,CE106,108,109,EE102,103,104,106,107,108199303-199704

main69749-50020×2iAE10#,CE10#,EE10#199205-199705

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24010iAE10#,CE10#,EE10#199106

main69759-24020iAE10#,CE10#,EE10#199106

main69759-24050×2iAE10#,CE10#,EE10#199106

main69759-24060×2iAE10#,CE10#,EE10#199106

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-22040iAE10#,CE10#,EE10#199106

main69759-22050iAE10#,CE10#,EE10#199106

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506125

main90105-06125

9015180015

main90151-80015

9015960542

main90159-60542

9018905097

main90189-05097

9353055016

main93530-55016

9353055020

main93530-55020

23 parts on this diagram · 1 diagram in section
