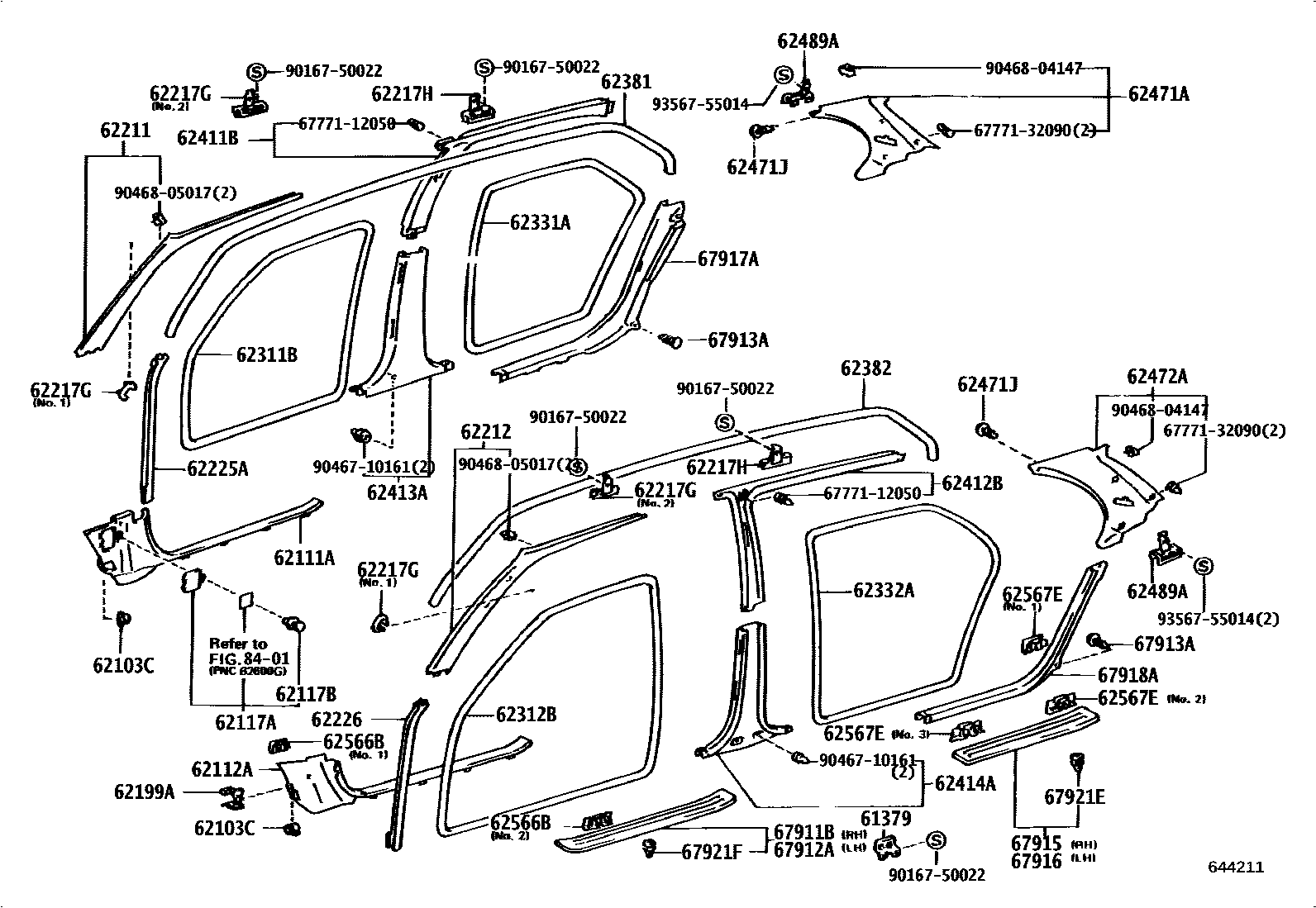

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

61379BRACKET, CENTER PILLAR GARNISH

main61379-12010×4iAE10#,CE100,104,EE101199106-199505

62103CCLIP, COWL SIDE TRIM BOARD SET

main90467-05050-01×2iAE10#,CE100,104,EE101..LX,SEG,SEL,XE; AE100,101,CE100,106,108,109,EE10#..CTD,DX,GT,L,XL199206-199211

BLACK,TRIM1#; BLACK,TRIM1#,8#,9#

main90467-05050-22×2iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199211-199305

BLACK,TRIM1#,8#,9#

main90467-08160×2iAE10#,CE10#,EE10#199106-199206

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-12160-P0iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

SHADOW GRAY,TRIM1#

main62101-12170-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main62101-12170-P0iAE10#,CE100,104,EE101199106-199505

SHADOW GRAY,TRIM1#

main62101-12170-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-12160-P0iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

SHADOW GRAY,TRIM1#

main62102-12170-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main62102-12170-P0iAE10#,CE100,104,EE101199106-199505

SHADOW GRAY,TRIM1#

main62102-12170-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-12140-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main62117-12140-P0iAE10#,CE10#,EE10#199106-199605

SHADOW GRAY,TRIM1#

main62117-12140-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

main62117-12141-P0iAE109,CE10#,EE10#199605

SHADOW GRAY,TRIM1#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-08149iAE10#,CE10#,EE10#199106-199605

62199AHOLDER, FUSEE

main90468-25003×2iAE10#,CE10#,EE10#199106

62211GARNISH, FRONT PILLAR, RH

main62211-12240-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main62211-12240-P0iAE10#,CE100,104,EE101199106-199505

SHADOW GRAY,TRIM1#

main62211-12240-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

main62211-13040-P0iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

SHADOW GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-12240-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main62212-12240-P0iAE10#,CE100,104,EE101199106-199505

SHADOW GRAY,TRIM1#

main62212-12240-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

main62212-13040-P0iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

SHADOW GRAY,TRIM1#

62217GCLIP, FRONT PILLAR GARNISH

main62217-12010×4iAE10#,CE100,104,EE101199106-199505

main62217-12020×2iCE106,108,109,EE106,107,108199109-199110

main62217-12030×2iAE10#,CE100,104,EE101199106-199505

62217HCLIP, CENTER PILLER GARNISH

main62217-12010×2iAE10#,CE100,104,EE101199106-199505

62225AGARNISH, FRONT PILLAR, LOWER RH

main62225-12010-P0iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

SHADOW GRAY,TRIM1#

main62225-12020-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main62225-12020-P0iAE10#,CE100,104,EE101199106-199505

SHADOW GRAY,TRIM1#

main62225-12020-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

62226GARNISH, FRONT PILLAR, LOWER LH

main62226-12010-P0iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

SHADOW GRAY,TRIM1#

main62226-12020-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main62226-12020-P0iAE10#,CE100,104,EE101199106-199505

SHADOW GRAY,TRIM1#

main62226-12020-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-12040iAE10#,CE100,104,EE101199106-199505

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-12040iAE10#,CE100,104,EE101199106-199505

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-12010iAE10#,CE100,104,EE101199106-199505

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-12010iAE10#,CE100,104,EE101199106-199505

62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH

main62381-12190iAE10#,CE100,104,EE101199106-199207

main62381-12191iAE10#,CE100,104,EE101199207-199505

62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH

main62382-12200iAE10#,CE100,104,EE101199106-199207

main62382-12201iAE10#,CE100,104,EE101199207-199505

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-12450-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main62411-12450-P0iAE10#,CE100,104,EE101199106-199505

SHADOW GRAY,TRIM1#

main62411-12450-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

main62411-13030-P0iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

SHADOW GRAY,TRIM1#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-12450-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main62412-12450-P0iAE10#,CE100,104,EE101199106-199505

SHADOW GRAY,TRIM1#

main62412-12450-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

main62412-13030-P0iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

SHADOW GRAY,TRIM1#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-12180-P0iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109-200008

SHADOW GRAY,TRIM1#

main62413-12190-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main62413-12190-P0iAE10#,CE100,104,EE101199106-199505

SHADOW GRAY,TRIM1#

main62413-12190-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

main62413-13040-B0iAE109,CE10#,EE10#200008

SHADOW GRAY,TRIM1#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-12180-P0iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109-200008

SHADOW GRAY,TRIM1#

main62414-12190-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main62414-12190-P0iAE10#,CE100,104,EE101199106-199505

SHADOW GRAY,TRIM1#

main62414-12190-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

main62414-13040-B0iAE109,CE10#,EE10#200008

SHADOW GRAY,TRIM1#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-12660-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199203

TAUPE,TRIM9#

main62471-12660-P0iAE10#,CE100,104,EE101199106-199203

SHADOW GRAY,TRIM1#

main62471-12660-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199203

DARK BLUE,TRIM8#

main62471-12661-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199203-199505

TAUPE,TRIM9#

main62471-12661-P0iAE10#,CE100,104,EE101199203-199505

SHADOW GRAY,TRIM1#

main62471-12661-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199203-199305

DARK BLUE,TRIM8#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-06055-14×2iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199203-199210

BLUE,TRIM8#

main90467-06055-B0×2iAE10#,CE100,104,EE101199203-199505

SHADOW GRAY,TRIM1#

main90467-06055-J1×2iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199210-199305

DARK BLUE,TRIM8#

main90467-06055-K0×2iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199203-199505

TAUPE,TRIM9#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-12660-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199203

TAUPE,TRIM9#

main62472-12660-P0iAE10#,CE100,104,EE101199106-199203

SHADOW GRAY,TRIM1#

main62472-12660-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199203

DARK BLUE,TRIM8#

main62472-12661-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199203-199505

TAUPE,TRIM9#

main62472-12661-P0iAE10#,CE100,104,EE101199203-199505

SHADOW GRAY,TRIM1#

main62472-12661-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199203-199305

DARK BLUE,TRIM8#

62489ACLIP, ROOF SIDE INNER GARNISH

main62489-12010×2iAE10#,CE100,104,EE101199106-199505

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-12010×2iAE10#,CE100,104,EE101199106-199112

main62566-12030×8iAE10#,CE100,104,EE101199106-199505

main62567-12010×2iAE10#,CE100,104,EE101199112-199505

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62566-12010×2iAE10#,CE100,104,EE101199106-199505

main62566-12030×2iAE10#,CE100,104,EE101199106-199505

main62566-12040×2iAE10#,CE100,104,EE101199106-199505

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-12050-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main67911-12050-P0iAE10#,CE100,104,EE101199106-199505

SHADOW GRAY,TRIM1#

main67911-12050-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-12020-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main67912-12020-P0iAE10#,CE100,104,EE101199106-199505

SHADOW GRAY,TRIM1#

main67912-12020-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

67913ACLIP(FOR SCUFF PLATE)

main90467-06049-01×2iAE10#,CE100,104,EE101..LX,SEG,SEL,XE; AE100,101,CE100,EE101..DX,GT199106-199209

BLACK,TRIM1#; BLACK,TRIM1#,8#,9#

main90467-06049-22×2iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199305-199505

BLACK,TRIM1#,9#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-12030-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main67915-12030-P0iAE10#,CE100,104,EE101199106-199505

SHADOW GRAY,TRIM1#

main67915-12030-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-12010-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main67916-12010-P0iAE10#,CE100,104,EE101199106-199505

SHADOW GRAY,TRIM1#

main67916-12010-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

67917APLATE, REAR DOOR SCUFF, RH

main67917-12080-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main67917-12080-P0iAE10#,CE100,104,EE101199106-199505

SHADOW GRAY,TRIM1#

main67917-12080-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

main67917-13030-B0iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

SHADOW GRAY,TRIM1#

67918APLATE, REAR DOOR SCUFF, LH

main67918-12070-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

main67918-12070-P0iAE10#,CE100,104,EE101199106-199505

SHADOW GRAY,TRIM1#

main67918-12070-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

main67918-13030-B0iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

SHADOW GRAY,TRIM1#

67921ERETAINER, REAR DOOR SCUFF PLATE

main67921-32010×4iAE10#,CE10#,EE10#199106

67921FRETAINER, FRONT DOOR SCUFF PLATE

main67921-32010×6iAE10#,CE100,104,EE101199106-199505

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050

6777132090WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32090

9016750022

main90167-50022

9046710161

main90467-10161

9046804147

main90468-04147

9046805017

main90468-05017

9356755014

main93567-55014

46 parts on this diagram · 2 diagrams in section
