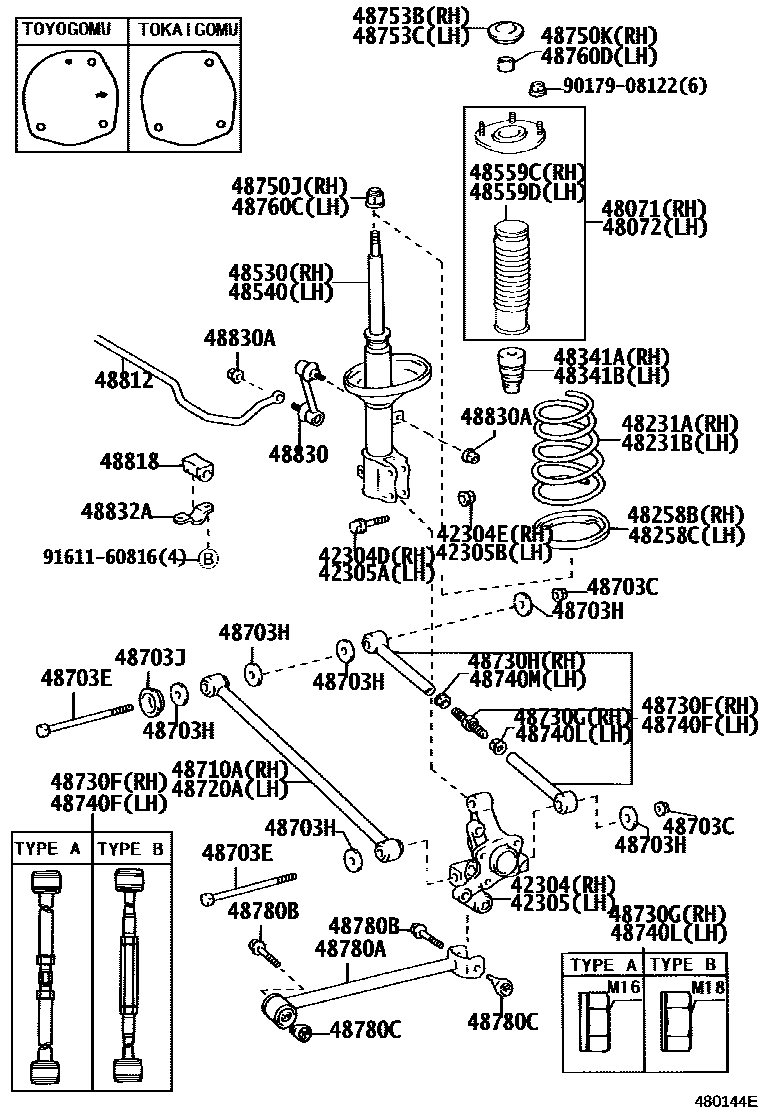

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-12080iAE101..GT199106-199205

main42304-12090iAE100,101,CE100,EE101..DX,LX,SEG,SEL,XE199106-199505

main42304-12100iAE101..GT199106-199205

main42304-12110iAE104,CE104199109-199505

main42304-12120iAE104,CE104199109-199505

main42304-12130iAE100,101,CE100,EE101..DX,LX,SEG,SEL,XE199106-199505

main42304-12140iAE101..GT199205-199505

main42304-12170iAE101..GT199205-199505

42304DBOLT (FOR REAR AXLE CARRIER RH)

main90105-12102iAE100,101,CE100,EE101199106-199505

sub90105-12236

main90105-15001iAE104,CE104199109-199505

42304ENUT (FOR REAR AXLE CARRIER RH)

main90179-12025iAE100,101,CE100,EE101199106-199505

main90179-15001iAE104,CE104199109-199505

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-12080iAE101..GT199106-199205

main42305-12090iAE100,101,CE100,EE101..DX,LX,SEG,SEL,XE199106-199505

main42305-12100iAE101..GT199106-199205

main42305-12110iAE104,CE104199109-199505

main42305-12120iAE104,CE104199109-199505

main42305-12130iAE100,101,CE100,EE101..DX,LX,SEG,SEL,XE199106-199505

main42305-12140iAE101..GT199205-199505

main42305-12170iAE101..GT199205-199505

42305ABOLT (FOR REAR AXLE CARRIER LH)

main90105-12102iAE100,101,CE100,EE101199106-199505

sub90105-12236

main90105-15001iAE104,CE104199109-199505

42305BNUT (FOR REAR AXLE CARRIER LH)

main90179-12025iAE100,101,CE100,EE101199106-199505

main90179-15001iAE104,CE104199109-199505

48071SUPPORT SUB-ASSY, REAR SUSPENSION, RH

main48071-12080iAE10#,CE100,104,EE101199106-199505

sub48071-12140

48072SUPPORT SUB-ASSY, REAR SUSPENSION, LH

main48072-12080iAE10#,CE100,104,EE101199106-199505

sub48072-12140

48231ASPRING, COIL, REAR RH

main48231-1E090iAE101,CE100..SEG,SEL199106-199505

main48231-1E110iAE104,CE104199109-199505

main48231-1E250iAE100199106-199505

main48231-1E260iEE101199106-199505

main48231-1E330iAE101..GT199205-199505

main48231-1E580iCE100..DX,LX,XE199106-199505

main48231-1E600iAE101..GT199106-199205

48231BSPRING, COIL, REAR LH

main48231-1E090iAE101,CE100..SEG,SEL199106-199505

main48231-1E110iAE104,CE104199109-199505

main48231-1E250iAE100199106-199505

main48231-1E260iEE101199106-199505

main48231-1E330iAE101..GT199205-199505

main48231-1E580iCE100..DX,LX,XE199106-199505

main48231-1E600iAE101..GT199106-199205

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-12030iAE10#,CE100,104,EE101199106-199505

sub48258-12040

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-12030iAE10#,CE100,104,EE101199106-199505

sub48258-12040

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-12120iAE100,EE101199106-199505

main48341-12130iAE101,CE100199106-199505

main48341-12170iAE104,CE104199109-199505

main48341-13090iCE102,106,107,108,EE102,103,104,106,107,108199202

main48341-13100iEE106..4F199111-199401

main48341-13110iAE109,CE105,109199109

main48341-13120iCE106,108,EE106,107,108199109-199202

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-12120iAE100,EE101199106-199505

main48341-12130iAE101,CE100199106-199505

main48341-12170iAE104,CE104199109-199505

main48341-13090iCE102,106,107,108,EE102,103,104,106,107,108199202

main48341-13100iEE106..4F199111-199401

main48341-13110iAE109,CE105,109199109

main48341-13120iCE106,108,EE106,107,108199109-199202

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-12550iAE100,EE101199106-199505

main48530-12580iAE101,CE100..DX,LX,SEG,SEL,XE199106-199205

sub48530-12840

main48530-12710iAE101..GT199106-199205

sub48530-12780

main48530-12760iAE104,CE104199109-199505

main48530-12780iAE101..GT199205-199505

main48530-12840iAE101,CE100..DX,LX,SEG,SEL,XE199106-199205

TOKICO

sub48530-80005

main48530-12840iAE101,CE100..DX,LX,SEG,SEL,XE199205-199505

sub48530-80005

main48531-80072iEE106..4F199111-199401

sub48531-80180

main48531-80118iCE102,106,107,108,EE10#199704-200206

sub48531-80181

main48531-80136iAE109,CE105,109199109-200206

sub48531-80182

main48531-80181iCE106,108,EE102,103,104,106,107,108199109-199704

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80072iEE106..4F199111-199401

sub48531-80180

main48531-80118iCE102,106,107,108,EE10#199704-200206

sub48531-80181

main48531-80136iAE109,CE105,109199109-200206

sub48531-80182

main48531-80181iCE106,108,EE102,103,104,106,107,108199109-199704

main48540-12490iAE100,EE101199106-199505

main48540-12520iAE101,CE100..DX,LX,SEG,SEL,XE199106-199205

KAYABA

sub48540-12770

main48540-12650iAE101..GT199106-199205

sub48540-12710

main48540-12700iAE104,CE104199109-199505

main48540-12710iAE101..GT199205-199505

main48540-12770iAE101,CE100..DX,LX,SEG,SEL,XE199205-199505

sub48540-19225

main48540-12770iAE101,CE100..DX,LX,SEG,SEL,XE199106-199205

TOKICO

sub48540-19225

48559CCOVER, REAR SHOCK ABSORBER DUST, RH NO.1

main48559-12070iAE10#,CE100,104,EE101199106-199505

sub48559-12080

48559DCOVER, REAR SHOCK ABSORBER DUST, LH NO.1

main48559-12070iAE10#,CE100,104,EE101199106-199505

sub48559-12080

48703CNUT(FOR REAR SUSPENSION ARM)

main90179-12064iAE104,CE104199109-199505

CARRIER SIDE

main90179-12106iAE104,CE104199109-199505

BODY SIDE

main90179-14019iAE100,101,CE100,EE101199106-199505

48703EBOLT(FOR REAR SUSPENSION ARM)

main90105-14083iAE100,101,CE100,EE101199106-199505

main90119-12150iAE104,CE104199109-199505

main90119-12152iAE104,CE104199109-199505

48703HWASHER, NO.1(FOR REAR SUSPENSION ARM)

main90201-14017iAE100,101,CE100,EE101199106-199505

48703JWASHER, NO.2(FOR REAR SUSPENSION ARM)

main90209-15002iAE100,101,CE100,EE101199106-199505

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-12160iAE101..GT199106-199505

main48710-12180iAE104,CE104199109-199505

main48710-12190iAE100,101,CE100,EE101..DX,LX,SEG,SEL,XE199106-199505

sub48710-12200

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-12160iAE101..GT199106-199505

main48710-12180iAE104,CE104199109-199505

main48710-12190iAE100,101,CE100,EE101..DX,LX,SEG,SEL,XE199106-199505

sub48710-12200

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-12050iAE101..GT199106-199505

sub48730-12120

main48730-12060iAE100,101,CE100,EE101..DX,LX,SEG,SEL,XE199106-199401

sub48730-12090

main48730-12070iAE104,CE104199109-199505

sub48730-12130

main48730-12090iAE100,101,CE100,EE101..DX,LX,SEG,SEL,XE199401-199505

sub48730-12110

48730GNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH)

main90179-16022iAE100,101,CE100,EE101199106-199505

48730HNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH)

main90179-16021iAE100,101,CE100,EE101199106-199505

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-12050iAE101..GT199106-199505

sub48730-12120

main48730-12060iAE100,101,CE100,EE101..DX,LX,SEG,SEL,XE199106-199401

sub48730-12090

main48730-12070iAE104,CE104199109-199505

sub48730-12130

main48730-12090iAE100,101,CE100,EE101..DX,LX,SEG,SEL,XE199401-199505

sub48730-12110

48740LNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH)

main90179-16022iAE100,101,CE100,EE101199106-199505

48740MNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH)

main90179-16021iAE100,101,CE100,EE101199106-199505

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90179-14015iAE10#,CE100,104,EE101199106-199505

48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90387-15012iAE10#,CE100,104,EE101199106-199312

sub90387-15027

main90387-15027iAE10#,CE100,104,EE101199312-199505

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-12010iAE10#,CE100,104,EE101199106-199505

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-12010iAE10#,CE100,104,EE101199106-199505

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90179-14015iAE10#,CE100,104,EE101199106-199505

48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90387-15012iAE10#,CE100,104,EE101199106-199312

sub90387-15027

main90387-15027iAE10#,CE100,104,EE101199312-199505

48780AROD ASSY, STRUT, REAR

main48780-12010iAE10#,CE100,104,EE101..DX,LX,SEG,SEL,XE199106-199505

sub48780-32060

main48780-12020iAE101..GT199106-199505

48780BBOLT(FOR STRUT ROD)

main90119-12152iAE10#,CE100,104,EE101199106-199505

48780CNUT(FOR STRUT ROD)

main90179-12062iAE10#,CE100,104,EE101199106-199505

CARRIER SIDE

main90179-12063iAE10#,CE100,104,EE101199106-199505

BODY SIDE

48812BAR, STABILIZER, REAR

main48812-12170iAE100,101,CE100,EE101..DX,LX,SEG,SEL,XE199106-199505

main48812-12190iAE101..GT199106-199505

main48812-12210iAE104..4FC199109-199505

main48812-12220iAE104,CE104..5F199109-199505

48818BUSH, STABILIZER, REAR

main48818-12130iAE104..4FC199109-199307

sub48818-12190

main48818-12140iAE104,CE104..5F199109-199307

sub48818-12200

main48818-12150iAE100,101,CE100,EE101..DX,LX,SEG,SEL,XE199211-199505

main48818-12170iAE101..GT199307-199505

main48818-12190iAE104..4FC199307-199505

main48818-12200iAE104,CE104..5F199307-199505

main48818-20070iAE100,101,CE100,EE101..DX,LX,SEG,SEL,XE199106-199211

sub48818-12150

main48818-20110iAE101..GT199106-199307

sub48818-12170

48830LINK ASSY, REAR STABILIZER

main48830-12050iAE104,CE104199109-199505

main48830-20010iAE100,101,CE100,EE101199106-199505

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10183iAE10#,CE100,104,EE101199106-199505

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-12070iAE104,CE104199109-199505

main48832-20030iAE100,101,CE100,EE101199106-199505

9017908122

main90179-08122

9161160816

main91611-60816

46 parts on this diagram · 6 diagrams in section
