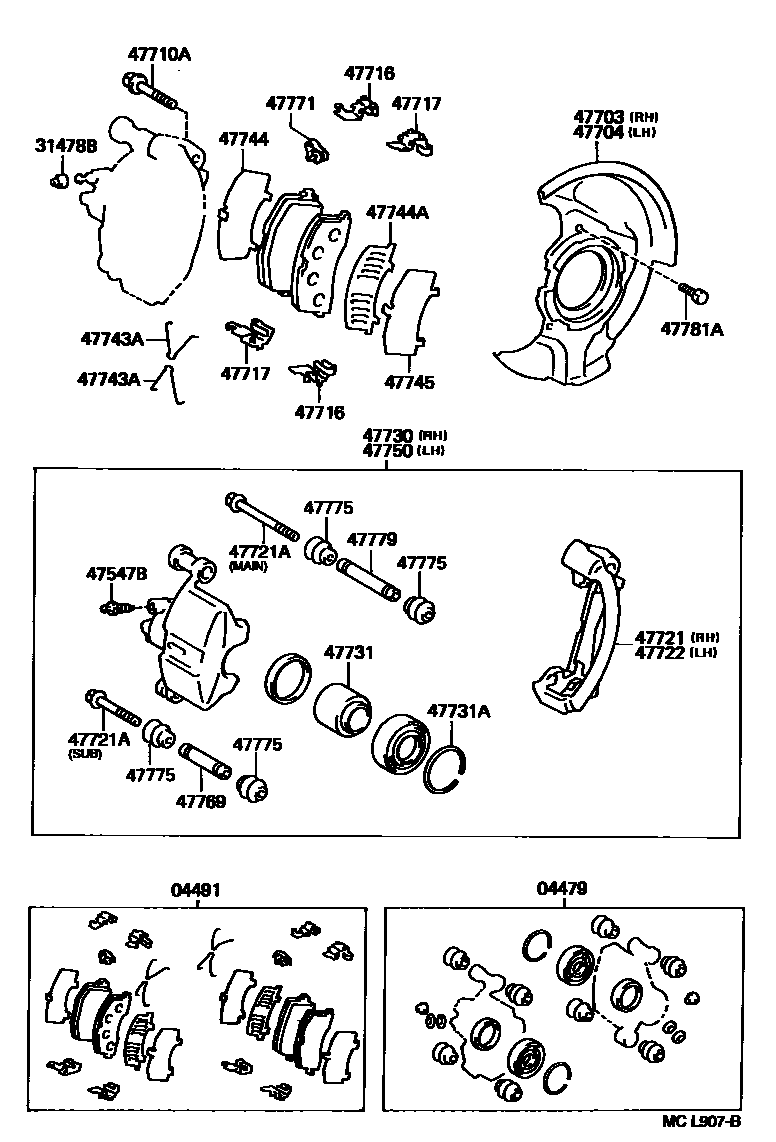

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-12091iAE10#,CE10#,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL199106-199508

main04479-12140iAE109,CE105,109199106-199505

04491PAD KIT, DISC BRAKE, FRONT

main04491-12432iAE100,101,CE100,108,EE101,104..DX,L,LX,SEG,SEL,XE199405-199505

main04491-12540iEE101,108199106-199401

main04491-12541iEE101,104199401-199405

main04491-12560iAE100,CE100,108199106-199401

main04491-12561iAE100,CE100,108199401-199403

main04491-12580iAE101..SEG199106-199401

main04491-12581iAE101..SEG199401-199403

main04491-12610iAE104,CE104,109199109-199505

main04491-12620iCE106,EE106,107199109-199305

main04491-12630iAE101..GT199106-199505

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAE10#,CE10#,EE10#199106

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAE10#,CE10#,EE10#199106

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47781-12160iAE100,104,109,CE10#,EE10#199106

main47781-12170iAE101199106-199505

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47782-12160iAE100,104,109,CE10#,EE10#199106

main47782-12170iAE101199106-199505

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040iAE10#,CE10#,EE10#199106

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20140iAE109,CE10#,EE10#199610

main47716-32031iAE10#,CE10#,EE10#199106-199610

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20140iAE109,CE10#,EE10#199610

main47717-32031iAE10#,CE10#,EE10#199106-199610

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12120iCE106,107,EE10#199106

main47721-12130iAE101..GT199106-199505

main47721-12160iAE100,104,109,CE100,102,104,105,108,109199106

main47721-12170iAE101..SEG199106-199505

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003iEE102,103..5F..(DX,DXJ)200008

main90119-09003iEE103..XL;EE102,103..(3FC,4F)..(DX,DXJ);AE10#,CE10#,EE101,104,106,107,108199106

main90119-09004iEE103..XL;EE102,103..(3FC,4F)..(DX,DXJ);AE10#,CE10#,EE101,104,106,107,108199106

main90119-09004iEE102,103..5F..(DX,DXJ)200008

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-12120iCE106,107,EE10#199106

main47721-12130iAE101..GT199106-199505

main47721-12160iAE100,104,109,CE100,102,104,105,108,109199106

main47721-12170iAE101..SEG199106-199505

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12310iCE106,107,EE10#199106

main47730-12320iAE101..GT199106-199505

main47730-12400iAE100,104,CE100,104,108,109199106-199508

main47730-12410iAE101..SEG199106-199505

main47730-12440iAE109,CE105,109199508

47731PISTON, FRONT DISC BRAKE

main47731-12130iAE109,CE105,109199106-199505

main47731-12150iCE102,106,107,108,EE10#199106-199508

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001iAE10#,CE10#,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL199106-199508

main90522-64003iAE101..GT199106-199505

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-12070iCE106,EE10#199106-199411

main47743-32010iAE101..SEG199106-199401

main47743-32020iAE101,104,109,CE104,105,109..DX,GT,LX,SEL,XE,XL199106-199401

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-32010iAE10#,CE10#,EE10#199106-199705

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-32040iAE10#,CE10#,EE10#199106-199705

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-32040iAE10#,CE10#,EE10#199106-199705

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12310iCE106,107,EE10#199106

main47750-12320iAE101..GT199106-199505

main47750-12400iAE100,104,CE100,104,108,109199106-199508

main47750-12410iAE101..SEG199106-199505

main47750-12440iAE109,CE105,109199508

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030iAE10#,CE10#,EE10#199106

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-12050iCE109199110-199605

main47771-32010iAE10#,CE10#,EE10#199106-199605

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-32010iAE10#,CE10#,EE10#199106

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010iAE10#,CE10#,EE10#199106

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134iAE10#,CE10#,EE10#199106

25 parts on this diagram · 2 diagrams in section
