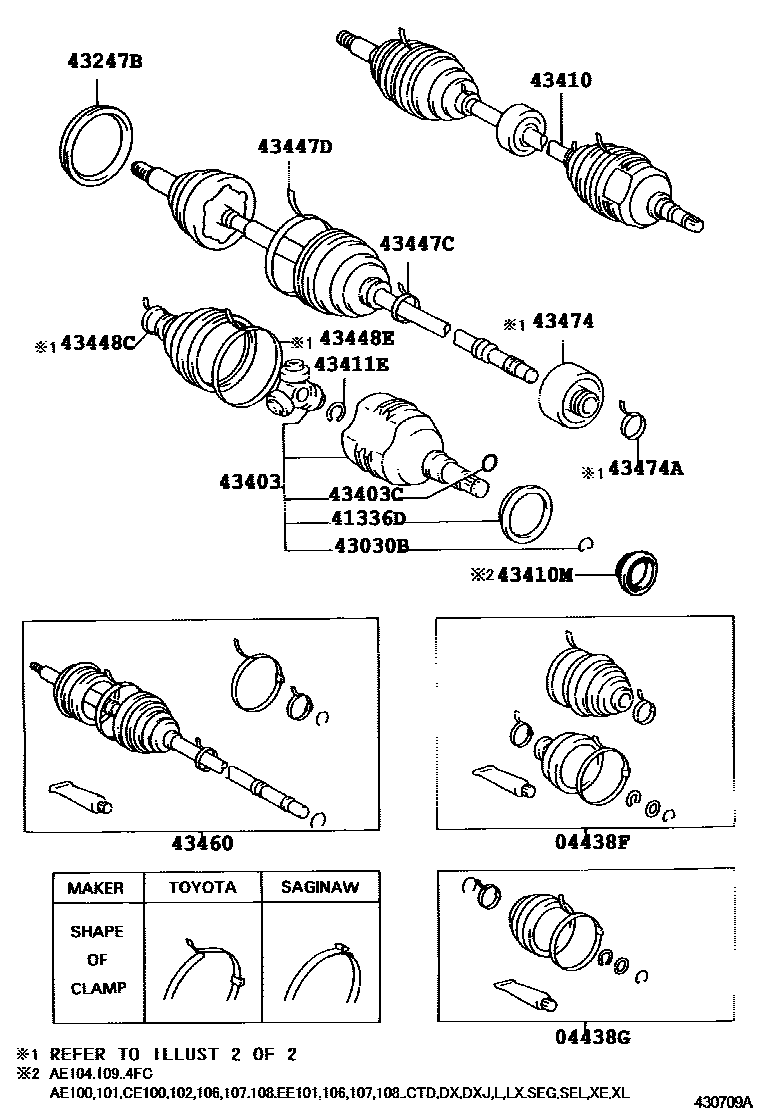

FRONT DRIVE SHAFT

0001 1TOYOTA,RH 0003 1SAGINAW,RH 0004 1RH 0005 1RH 0006 1TOYOTA,LH 0008 1SAGINAW,LH 0009 1LH 0010 1

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-10060iEE101199106-199505

sub04438-16040

main04438-10060iEE102,103,104199405-199511

sub04438-16040

main04438-12172iAE101..SEG199305-199306

sub04428-12270

main04438-12172iAE100,101..DX,LX,SEG,SEL,XE199106-199505

sub04428-12270

main04438-12172iEE102,103,104199405-200206

sub04428-12270

main04438-12270iCE100,106,108199106-199408

sub04438-12290

main04438-12290iAE101..GT199106-199804

sub04438-20131

main04438-12300iAE104,109,CE104,109199406-199804

sub04438-12301

main04438-12301iAE109,CE105199804-199901

sub04438-12303

main04438-12302iAE109,CE105199901-200104

sub04438-12304

main04438-12481iCE102,107200104-200206

sub04428-12250

main04438-12650iAE109,CE105200104-200206

sub04428-12290

main04438-16040iEE10#199511-199712

sub04428-16010

main04438-16080iEE10#199712-199907

sub04438-16081

main04438-16081iEE10#199907-200206

sub04428-16020

main04438-20131iCE102,107199804-199901

sub04438-20134

main04438-20132iCE102,107199901-200104

sub04438-20133

main04438-32172iAE104,CE104,109199109-199406

sub04438-12300

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-02050iAE101..SEG199305-199505

SAGINAW

main04438-10050iEE102,103,104199405-199511

sub04438-16140

main04438-10050iEE101199106-199505

sub04438-16140

main04438-12162iAE100199305-199505

sub04438-12410

main04438-12162iAE100,101..DX,LX,SEG,SEL,XE199106-199305

sub04438-12410

main04438-12162iEE102,103,104199405-199511

sub04438-12410

main04438-12260iAE101,CE100,106,108..CTD,DX,GT,L,LX,SEL,XE,XL199106-199511

sub04438-12420

main04438-12280iAE101..GT199106-199311

sub04438-12260

main04438-12410iEE10#199511-200206

sub04438-12840

main04438-12420iCE106,108199511-199804

sub04438-20121

main04438-12470iCE102,107200104-200206

sub04438-32240

main04438-16071iEE10#200008-200206

sub04438-16150

main04438-16071iEE10#199704-200008

sub04438-16150

main04438-16140iEE10#199511-199704

sub04438-16070

main04438-20121iCE102,107199804-200104

sub04438-12470

main04438-32161iAE104,CE104,109199109-199511

sub04438-32230

main04438-32230iAE109,CE109199511-199804

sub04438-32231

main04438-32231iAE109,CE105199804-200104

sub04438-32290

main04438-52051iAE109,CE105200104-200206

sub04438-32231

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-01010iAE101..SEG199305-199505

SAGINAW

main41336-12010iAE101..SEG199305-199505

main41336-12010iAE100,101,EE10#..CTD,DX,L,LX,SEG,SEL,XE,XL199106-200206

main41336-12060iCE102,107200011-200206

main41336-20011iAE101..GT199106-199305

sub41336-20050

main41336-20040iAE104,109,CE104,105,109199109-200206

main41336-32010iCE100,102,106,107,108199106-200011

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90080-52015iAE101..SEG199305-199505

SAGINAW

main90521-26004iEE10#199106-200206

main90521-26004iAE101..SEG199305-199505

main90521-27005iCE100,102,106,107,108199106-200206

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-12010iAE10#,CE100,104,EE101199106-199505

main43247-33010iAE10#,CE10#,EE10#199106

43403JOINT SET, FRONT AXLE INBOARD, RH

main43030-12030iAE101..GT199106-199305

main43030-20020iCE100,102,106,107,108199106-200206

main43047-02030iAE101..SEG199305-199505

SAGINAW

main43403-10010iEE101199106-199505

sub43403-10011

main43403-10010iEE102,103,104199405-199908

sub43403-10011

main43403-10011iEE10#199908-200206

sub43403-0W031

main43403-10011iEE103,104..L,XL;EE102,103..3FC..(DX,DXJ)200008-200206

sub43403-0W031

main43403-12040iAE101..SEG199305-199505

main43403-12040iAE100,101..DX,LX,SEG,SEL,XE199106-199305

main43403-12040iEE102,103,104199405-200206

main43403-12050iAE104,109,CE104,105,109199109-200206

43403CRING, O (FOR FRONT DRIVE INBOARD JOINT)

main90301-26006iAE104,109,CE104,105,109199109-200206

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-02030iAE101..SEG199305-199505

SAGINAW

sub43410-02031

main43410-02040iAE101..SEG199305-199505

sub43410-02041

main43410-12260iEE101199106-199505

sub43410-12261

sub90178-22001

main43410-12260iEE102,103,104199405-199709

sub43410-12261

sub90178-22001

main43410-12270iEE101199106-199505

sub43410-12271

sub90178-22001

main43410-12271iEE10#199804-199901

sub43410-12272

main43410-12280iAE10#..DX,LX,SEG,SEL,XE199106-199107

sub43410-20440

main43410-12300iAE10#..DX,LX,SEG,SEL,XE199106-199107

sub43410-20450

main43410-12350iCE100199106-199505

sub43410-12351

sub90178-22001

main43410-12351iCE102,107199804-199901

sub43410-12352

main43410-12352iCE102,107199901-200104

sub43410-12353

main43410-12353iCE102,107200104-200206

main43410-12360iAE101..GT199106-199505

sub43410-12361

sub90178-22001

main43410-12370iAE101..GT199106-199505

sub43410-12371

sub90178-22001

main43410-12400iAE104,109199109-199709

sub43410-12401

sub90178-22001

main43410-12401iAE109199709-199901

sub43410-12402

main43410-12402iAE109199901-200104

sub43410-12403

main43410-12403iAE109200104-200206

main43410-12410iAE104199109-199505

sub43410-12411

sub90178-22001

main43410-12411iAE109199804-199901

sub43410-12412

main43410-12412iAE109199901-200104

sub43410-12413

main43410-12413iAE109200104-200206

main43410-12420iCE104,109199109-199709

sub43410-12421

sub90178-22001

main43410-12421iCE109199709-199804

sub43410-12422

main43410-12430iCE104199109-199505

sub43410-12431

sub90178-22001

main43410-20341iCE100,106,108199106-199709

sub43410-20342

sub90178-22001

main43410-20342iCE102,106,107,108199709-199901

sub43410-20343

main43410-20343iCE102,107199901-200104

sub43410-20344

main43410-20344iCE102,107200104-200206

main43410-20440iAE100,101..DX,LX,SEG,SEL,XE199107-199305

sub43410-20441

sub90178-22001

main43410-20440iEE102,103,104199405-199709

sub43410-20441

sub90178-22001

main43410-20440iAE100199305-199505

sub43410-20441

sub90178-22001

main43410-20441iEE103,104..L,XL;EE102,103..3FC..(DX,DXJ)199709-200206

sub43410-20442

main43410-20450iAE100199305-199505

sub43410-20451

sub90178-22001

main43410-20450iAE101..SEG199107-199505

sub43410-20451

sub90178-22001

main43410-20451iEE102,103..5F..(DX,DXJ)200008-200206

sub43410-20452

main43410-20451iEE103,104..L,XL;EE102,103..(3FC,4F)..(DX,DXJ)199804-200206

sub43410-20452

main43410-20451iEE103,104..L,XL;EE102,103..3FC..(DX,DXJ)200202-200206

sub43410-20452

main43410-20551iCE105199804-199901

sub43410-20552

main43410-20552iCE105199901-200104

sub43410-20553

main43410-20553iCE105200104-200206

main43410-20591iCE105199804-199901

sub43410-20592

main43410-20592iCE105199901-200104

sub43410-20593

main43410-20593iCE105200104-200206

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34007iAE10#,EE101..MTM199106-199108

sub90311-34016

main90311-34012iAE100,EE10#..3FC199106-199803

main90311-34016iAE100,101,EE10#..MTM199108-200008

main90311-34023iEE10#..5F199803

main90311-35019iCE100,106,108..5F199106-199908

main90311-35026iCE100,106,108..5F199106-199410

sub90311-35019

main90311-35033iCE102,106,107,108..5F199507-200007

main90311-35045iCE102,107..4FC199908-200206

main90311-35049iCE102,107..5F200007

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90080-52008iAE101..SEG199305-199505

SAGINAW

main90520-22001iEE101199106-199505

sub90520-22029

main90520-22001iEE102,103,104199405-200206

sub90520-22029

main90520-22005iAE10#,CE10#199106-200206

main90520-22005iEE102,103,104199405-200206

main90520-22005iAE101..SEG199305-199505

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12150iAE109,CE10#200104-200206

sub42345-12190

main42345-14010iAE101,104,109,CE10#..CTD,DX,GT,L,LX,SEL,XE,XL199106-200206

main42345-16010iEE103,104..L,XL;EE102,103..(3FC,4F)..(DX,DXJ)199704-200206

main42345-16010iAE101..SEG199307-199505

main42345-16030iAE109,CE10#199704-200206

main42345-20100iCE102,107199901-200206

main90080-46147iAE101..SEG199305-199505

SAGINAW

main90949-01078iAE100,EE10#199106-200206

main90949-01078iAE101..SEG199305-199307

main90949-01947iCE105199804-200206

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12140iAE109,CE10#200104-200206

sub42345-12180

main42345-12160iAE109,CE102,105,106,107,108199704-199901

main42345-12160iCE105200202-200206

main42345-16020iAE101..SEG199307-199505

main42345-16020iEE10#199106-200206

main42345-16020iEE101199206-199307

main42345-20120iAE109,CE10#199901-200206

main90080-46149iAE101..SEG199305-199505

SAGINAW

main90949-01076iCE104,109199109-199709

sub42345-12160

main90949-01076iAE101,104,CE10#..CTD,DX,GT,L,LX,SEL,XE,XL199106-199804

sub42345-12160

main90949-01076iCE109199109-199704

sub42345-12160

main90949-01080iAE100,EE10#199305-199307

main90949-01080iAE100,EE10#199106-200206

main90949-01946iCE105199804-200203

sub42345-12160

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16010iAE101..SEG199307-199505

main90080-46148iAE101..SEG199305-199505

main90949-01078iAE10#,CE10#,EE10#199106-200206

main90949-01078iEE10#200202-200206

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160iAE109,CE102,105,106,107,108,EE10#199704-200206

main42345-16040iEE103,104..L,XL;EE102,103..(3FC,4F)..(DX,DXJ)199405-200206

main42345-16040iAE101..SEG199307-199505

main42345-16080iEE10#199106-200206

main42345-16080iEE101199206-199307

main90080-46150iAE101..SEG199305-199505

main90949-01076iCE109199106-199804

sub42345-12160

main90949-01076iCE109199109-199704

sub42345-12160

main90949-01076iEE102,103,104199405-199704

sub42345-12160

main90949-01146iEE10#199206-200206

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09050iAE101..SEG199305-199505

SAGINAW

sub43460-09051

main43460-09060iAE101..SEG199305-199505

sub43460-09061

main43460-19307iAE104199109-199505

sub43470-19306

main43460-19635iEE102,103,104199405-199709

sub43460-19636

sub90178-22001

main43460-19635iEE101199106-199505

sub43460-19636

sub90178-22001

main43460-19636iEE10#199709-200206

sub43460-80090

main43460-19636iEE10#200202-200206

sub43460-80090

main43460-19645iEE101199106-199505

sub43460-19646

sub90178-22001

main43460-19646iEE10#200008-200206

sub43460-80091

main43460-19655iCE100199106-199505

sub43460-19656

sub90178-22001

main43460-19657iCE102,107199804-199901

sub43460-19658

main43460-19658iCE102,107199901-200104

sub43460-19659

main43460-19659iCE102,107200104-200206

main43460-29098iAE101..SEG199305-199505

sub43460-29099

sub90178-22001

main43460-29098iEE102,103,104199405-199709

sub43460-29099

sub90178-22001

main43460-29098iAE100,101..DX,LX,SEG,SEL,XE199106-199305

sub43460-29099

sub90178-22001

main43460-29099iEE10#199709-200206

sub43460-80094

main43460-29147iCE100,106,108199106-199709

sub43460-29148

sub90178-22001

main43460-29148iCE106,108199709-199804

sub43460-29149

main43460-29149iCE102,107199804-199901

sub43460-29150

main43460-29150iCE102,107199901-200104

sub43460-29151

main43460-29151iCE102,107200104-200206

main43460-29167iAE100199305-199505

sub43460-29168

sub90178-22001

main43460-29167iAE101..SEG199106-199505

sub43460-29168

sub90178-22001

main43460-29168iEE10#200008-200206

sub43460-80095

main43470-19308iAE109199804-199901

sub43470-19309

main43470-19309iAE109199901-200104

sub43470-19310

main43470-19310iAE109200104-200206

main43470-19625iCE104,109199109-199709

sub43470-19626

sub90178-22001

main43470-19626iCE109199709-199804

sub43470-19627

main43470-19635iCE104199109-199505

sub43470-19636

sub90178-22001

main43470-19645iAE101..GT199106-199505

sub43470-19646

sub90178-22001

main43470-19655iAE101..GT199106-199505

sub43470-19656

sub90178-22001

main43470-29347iCE105199804-199901

sub43470-29348

main43470-29348iCE105199901-200104

sub43470-29349

main43470-29349iCE105200104-200206

main43470-29357iCE105199804-199901

sub43470-29358

main43470-29358iCE105199901-200104

sub43470-29359

main43470-29359iCE105200104-200206

main43470-39087iAE104,109199109-199709

sub43470-39088

sub90178-22001

main43470-39088iAE109199709-199804

sub43470-39089

main43470-39089iAE109199804-199901

sub43470-39090

main43470-39090iAE109199901-200104

sub43470-39145

main43470-39145iAE109200104-200206

43474DAMPER, DRIVE SHAFT

main43474-12020iAE10#,CE100,EE101..DX,LX,SEG,SEL,XE199106-200206

main43474-12030iAE104,109,CE105199109-200206

main43474-12040iEE10#199704-200206

sub43474-12130

main43474-20050iEE10#199107-200206

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-12170iAE109,CE105200202-200206

main42345-14010iEE10#200202-200206

main42345-14010iCE102,107,EE10#199106-200206

main42345-16030iEE10#199106-199307

main42345-16030iEE103..XL;EE102,103..(3FC,4F)..(DX,DXJ);AE100,101,CE100,102,104,106,107,108,EE101,104,106,107,108..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL199307-200206

main90949-01696iAE109,CE105199605-200206

main90949-01696iAE104199109-199505

17 parts on this diagram · 8 diagrams in section
