TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

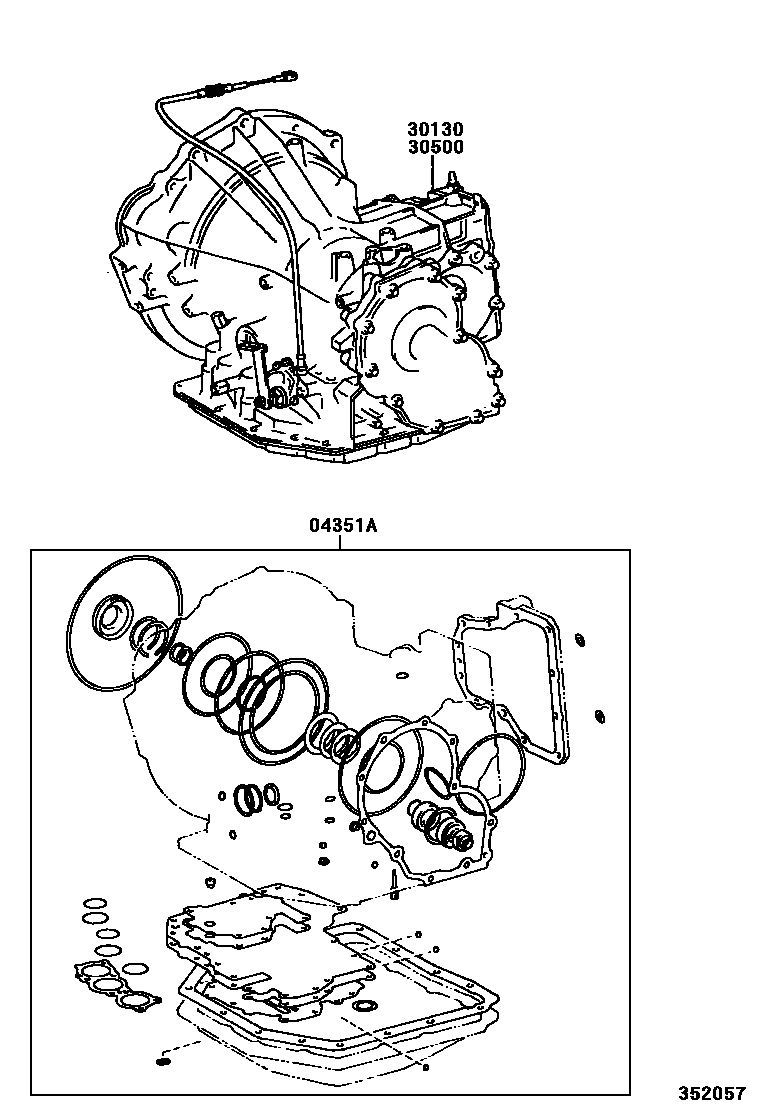

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-10030i199109-199402

main04351-10050i199402-199704

main04351-12050i199106-199505

main04351-12060i199106-199305

main04351-12070i199106-199305

main04351-12100i199305-199505

main04351-12110i199704-199706

main04351-12150i199706-199803

main04351-12151i199803

main04351-16070i199505-199704

main04351-16071i200106-200206

main04351-20060i199106-199505

main04351-20070i199505-199704

30130TRANSAXLE ASSY, REBUILT

main30130-12481i199106-199505

main30130-12531i199207-199401

main30130-12561i199109-199401

main30130-12700i199106-199109

main30130-12701i199109-199205

main30130-12702i199205-199505

main30130-12720i199106-199505

main30130-12730i199205-199305

main30130-12740i199106-199305

main30130-1A050i199305-199505

main30130-1A060i199305-199505

main30130-1A090i199401-199508

main30130-1A100i199401-199508

main30130-1A160i199505-199702

main30130-1A161i199702-199704

main30130-1A250i199508-199704

main30130-1A260i199508-199704

main30130-1A290i199505-199702

main30130-1A291i199702-199704

main30130-1A460i199704-199804

main30130-1A510i199804-200206

main30130-1A530i199804-200206

main30130-1A590i199704-199804

main30130-1A600i199704

main30130-1A610i199704

30500TRANSAXLE ASSY, AUTOMATIC

main30500-12481i199106-199505

main30500-12531i199109-199401

main30500-12561i199109-199401

main30500-12700i199106-199109

main30500-12701i199109-199205

main30500-12702i199205-199505

main30500-12720i199106-199505

main30500-12730i199106-199305

main30500-12740i199106-199305

main30500-12750i199106-199202

main30500-12752i199202-199505

main30500-12770i199109-199202

main30500-12772i199202-199505

main30500-1A050i199305-199505

main30500-1A060i199305-199505

main30500-1A090i199401-199508

main30500-1A100i199401-199508

main30500-1A160i199505-199702

main30500-1A161i199702-199704

main30500-1A250i199508-199704

main30500-1A260i199508-199704

main30500-1A290i199505-199702

main30500-1A291i199702-199704

main30500-1A460i199704-199804

main30500-1A510i199804-200206

main30500-1A530i199804-200206

main30500-1A590i199704-199804

main30500-1A600i199704

main30500-1A610i199704

3 parts on this diagram · 3 diagrams in section
