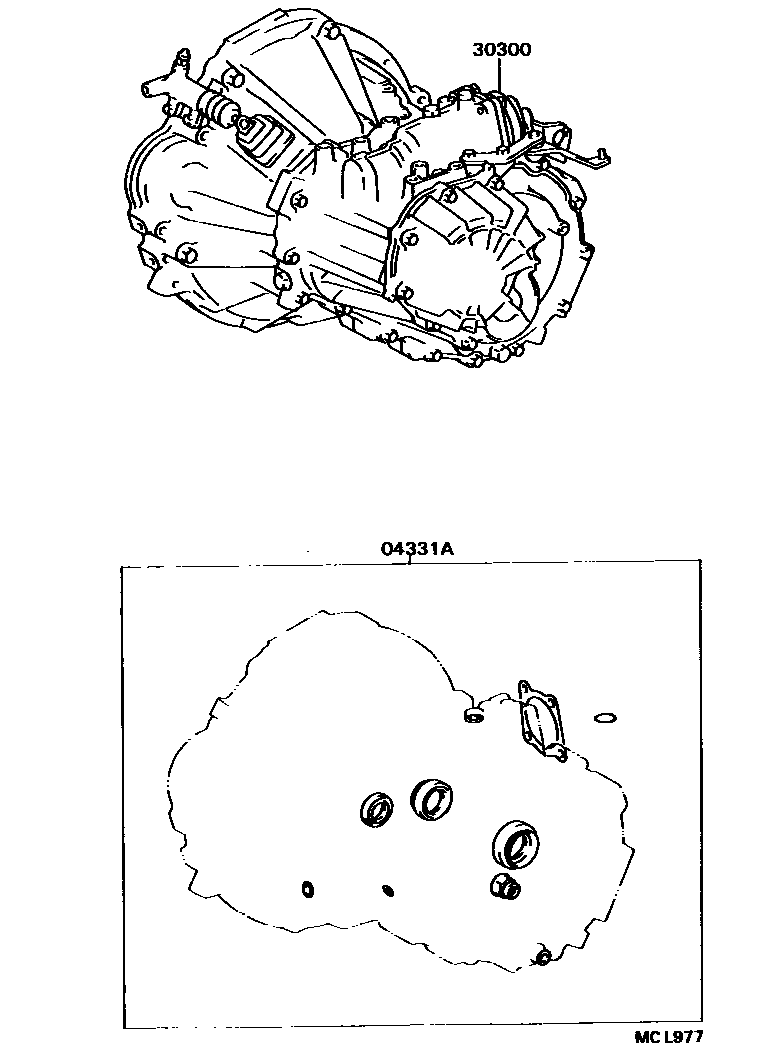

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1C40,C50,C52,C56,C160 0002 1E55F,E55F5 0003 1S50,S51 0004 1E59F

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12080iAE101..5F..GT199106-199505

main04331-12101iAE104,109,CE104,105,109..5F199109

main04331-12110iAE100,101,EE10#..MTM..(CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL)199106

main04331-32011iCE100,102,106,107,108..5F199106-200002

main04331-32040iCE102,107..5F200002

30300TRANSAXLE ASSY, MANUAL

main30300-12730iCE100,108..5F199106-199201

main30300-12731iCE100,108..5F199201-199305

main30300-12740iCE106..5F199109-199201

main30300-12741iCE106..5F199201-199305

main30300-12760iEE101..4F199106-199408

main30300-12761iEE101..4F199408-199505

main30300-12770iEE103,106,107..4F199109-199408

main30300-12771iEE103..4F199408-199505

main30300-12772iEE103..4F199505-199704

main30300-12780iEE103,104,107,108..5F199109-199408

main30300-12781iEE103,104..5F199408-199505

main30300-12782iEE103,104..5F199505-199704

main30300-12790iAE101..5F..SEG199106-199505

main30300-12810iAE101..5F..GT199106-199305

main30300-12830iAE100..5F199106-199505

main30300-12880iCE104,109199109-199704

main30300-12890iAE104..5F199109-199505

main30300-1A010iAE104,109..5F199109-199704

main30300-1A120iCE100,108..5F199305-199704

main30300-1A140iAE101..5F..GT199305-199505

main30300-1A150iCE106..5F199305-199704

main30300-1A180iEE102..4F199401-199408

main30300-1A181iEE102..4F199408-199505

main30300-1A182iEE102..4F199505-199704

main30300-1A280iCE109199704-199804

main30300-1A290iAE109..5F199804

main30300-1A320iCE107,108..5F199704

main30300-1A450iAE109..5F199704

main30300-1A460iCE106..5F199704-199804

main30300-1A470iEE102..4F199704-200008

main30300-1A480iEE103..4F199704-200008

main30300-1A510iEE10#..5F199704

main30300-1A630iCE105199804

main30300-1A640iCE102..5F199804

2 parts on this diagram · 4 diagrams in section
