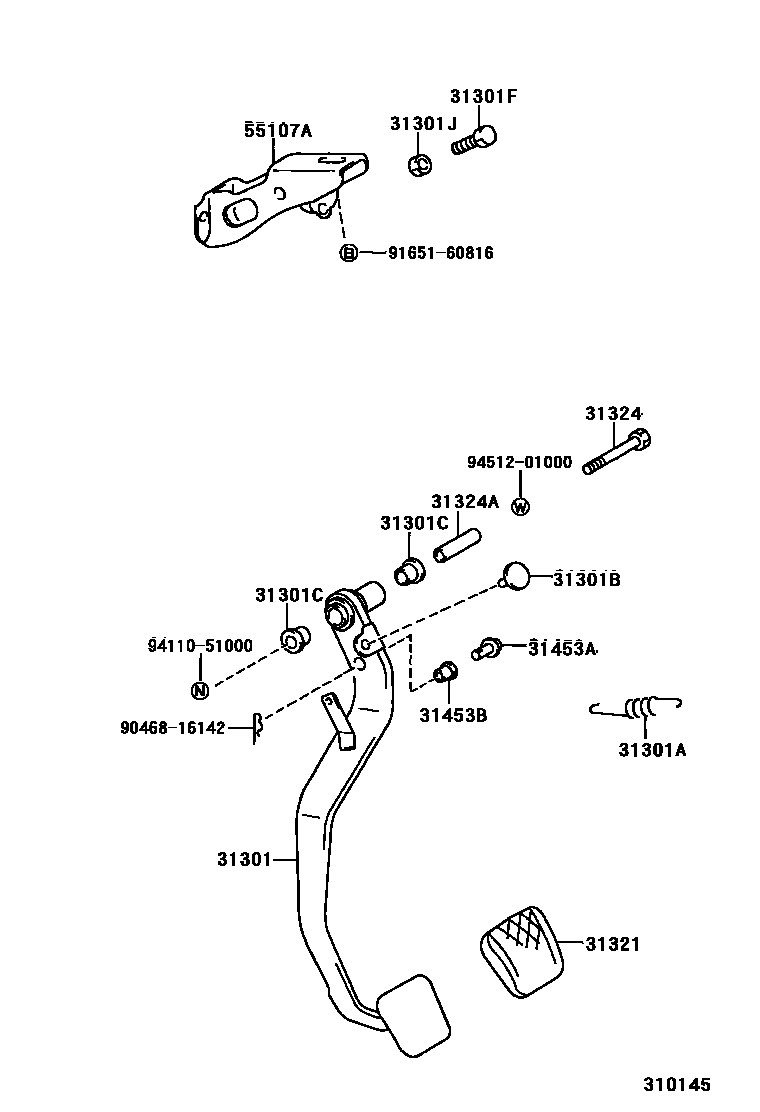

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-12370iAE10#,CE10#,EE10#..MTM199106-199505

sub31301-12371

main31301-12371iAE109,CE10#,EE10#..MTM199505-200008

main31301-12490iAE109,CE10#,EE10#..5F200008

main31310-12030iAE101..5F..GT199106-199305

31301ASPRING(FOR CLUTCH PEDAL)

main90506-14052iAE10#,CE10#,EE10#..MTM199106-199305

main90506-26023iAE101..5F..GT199106-199305

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iAE10#,CE10#,EE10#..MTM199106

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iAE10#,CE10#,EE10#..MTM199106

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iAE10#,CE10#,EE10#..MTM199106

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94120-41000iAE10#,CE10#,EE10#..MTM199106

31321PAD, CLUTCH PEDAL

main31321-12040iAE10#,CE10#,EE10#..MTM199106

31324SHAFT, CLUTCH PEDAL

main90101-10015iAE10#,CE10#,EE10#..MTM..(CTD,DX,L,LX,SEG,SEL,XE,XL)199106-199305

main90101-10081iAE101..5F..GT199106-199305

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iAE10#,CE10#,EE10#..MTM199106

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main47148-12010iAE10#,CE10#,EE10#..MTM199106

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iAE10#,CE10#,EE10#..MTM199106

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-12170iAE10#,CE10#,EE10#..MTM..(CTD,DX,L,LX,SEG,SEL,XE,XL)199106-199308

main55107-12180iAE101..5F..GT199106-199308

9046816142

main90468-16142

9165160816

main91651-60816

9411051000

main94110-51000

9451201000

main94512-01000

16 parts on this diagram · 6 diagrams in section
