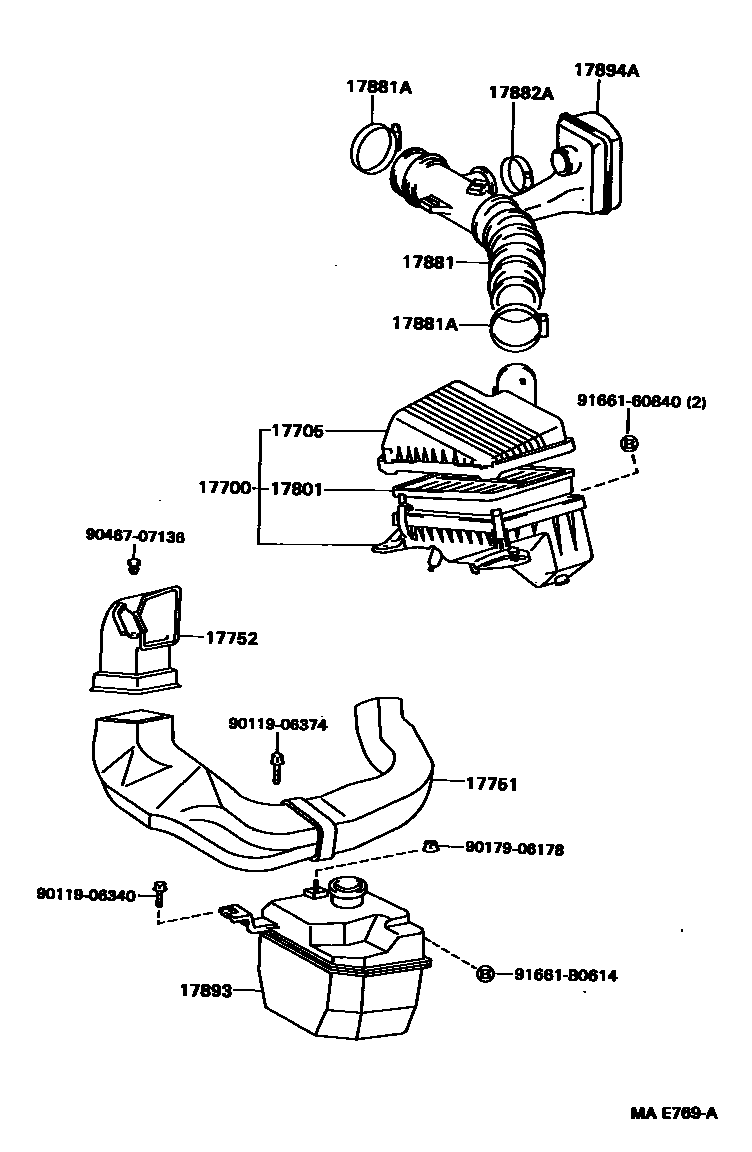

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

17700CLEANER ASSY, AIR

main17700-02040i4AFE,5AFE..AE10#199301-199505

main17700-11750i4EFE,5EFE..EE101,102,103,104199106-199505

main17700-11760i2E..EE106199109-199401

main17700-11770i3E..EE107,108199109-199401

main17700-11890i4EFE,5EFE..EE10#199505-199704

main17700-15270i4AFE,5AFE..AE10#199106-199505

main17700-15340i4AFE..AE109199605-199704

main17700-15360i4AFE..AE109199704

main17700-16750i4AGE..AE101199106-199505

main17700-1B040i4EFE,5EFE..EE10#199704

main17700-64270i2C..CE10#199106-199505

main17700-64340i2C..CE10#199505-199704

main17700-64390i2C..CE10#199704-199709

sub17700-64391

main17700-64391i2C..CE10#199709-199804

sub17700-64470

main17700-64440i3CE..CE10#199804

17705CAP SUB-ASSY, AIR CLEANER

main17705-02040i4AFE,5AFE..AE10#199301-199505

main17705-11510i4EFE,5EFE..EE101,102,103,104199106-199505

main17705-11520i2E..EE106199109-199401

main17705-11530i3E..EE107,108199109-199401

main17705-11550i4EFE,5EFE..EE10#199505-199704

sub17705-11600

main17705-11600i4EFE,5EFE..EE10#199704

main17705-15160i4AFE,5AFE..AE10#199106-199505

main17705-15180i4AFE..AE109199605-199704

sub17705-15190

main17705-15190i4AFE..AE109199704

main17705-16420i4AGE..AE101199106-199505

main17705-64160i2C..CE10#199106-199704

main17705-64270i2C..CE10#199705-199709

main17705-64271i2C..CE10#199709-199804

main17705-64310i3CE..CE10#199804

17751INLET, AIR CLEANER, NO.1

main17750-02010i4EFE,5EFE..EE101,102,103,104199301-199505

main17750-11010i2E..EE106199109-199401

sub17750-11011

main17750-11020i3E..EE107,108199109-199401

sub17750-11021

main17750-15010i4AFE,5AFE..AE10#199106-199505

main17751-15050i4EFE,5EFE..EE10#199505-199704

main17751-15070i4AFE..AE109199704

17752INLET, AIR CLEANER, NO.2

main17752-15040i4AFE..AE109199505

main17753-02010i4AFE,5AFE..AE10#199301-199505

main17753-15010i4EFE,5EFE..EE101,102,103,104199106-199505

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-02030i4AFE,5AFE..AE10#199301-199707

main17801-11090i4EFE,5EFE..EE101,102,103,104199106

main17801-11100i2E..EE106199109-199401

main17801-11110i3E..EE107,108199109-199401

main17801-15070i4A#,5AFE..AE10#199106-199707

main17801-15070i4AFE..AE109199707

main17801-64070i2C,3CE..CE10#199106

17881HOSE, AIR CLEANER, NO.1

main17880-11160i4EFE..EE101199106-199305

main17880-11210i4EFE,5EFE..EE101,102,103,104199305-199704

main17881-02030i4AFE,5AFE..AE10#..5F199301-199505

main17881-02040i4AFE..AE109199605-199704

main17881-02040i4AFE,5AFE..AE10#..ATM199301-199505

main17881-10032i2E..EE106199109-199110

sub17881-10033

main17881-10033i2E..EE106199110-199401

main17881-11560i4EFE,5EFE..EE10#199704

main17881-15150i3E..EE107,108199109-199401

main17881-15170i4AFE,5AFE..AE10#..5F199106-199505

main17881-15180i4AFE,5AFE..AE10#..ATM199106-199505

main17881-15190i4AFE..AE109199605-199704

main17881-15200i4AFE..AE109199704

main17881-16300i4AGE..AE101199106-199505

main17881-64300i2C..CE10#199505-199804

main17881-64360i3CE..CE10#199804

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-70003i4EFE,5EFE..EE101,102,103,104199106-199506

main90460-73001i4AFE,5AFE..AE10#199106-199505

sub90460-73011

main90460-80001i4AGE..AE101199106-199505

sub90460-80006

main96111-10460i3E..EE107,108199109-199401

main96111-10690i4EFE,5EFE..EE10#199506

main96111-10730i4AFE..AE109199605

17882HOSE, AIR CLEANER, NO.2

main17882-64070i2C..CE10#199106-199804

main17882-64110i3CE..CE10#199804

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90080-46097i4AFE,5AFE..AE10#..5F199301-199505

main90080-46146i4AFE..AE109199605-199704

main90080-46146i4AFE,5AFE..AE10#..ATM199301-199505

main90460-42002i4AFE,5AFE..AE10#..ATM199106-199505

main90460-55012i4AFE,5AFE..AE10#..5F199106-199505

sub90460-55003

main96111-10380i4AFE..AE109199605-199704

main96111-10480i4EFE,5EFE..EE10#199506-199705

main96111-10630i3CE..CE10#199804

main96111-10650i2C..CE10#199106-199804

17893RESONATOR, INTAKE AIR

main17893-02010i4EFE,5EFE..EE101,102,103,104199301-199505

main17893-15040i4EFE,5EFE..EE101,102,103,104199106-199505

main17893-15050i4EFE,5EFE..EE10#199505

17894ARESONATOR, INTAKE AIR, NO.2

main17894-02010i4AFE,5AFE..AE10#..5F199301-199505

main17894-02020i4AFE..AE109199605-199704

main17894-02020i4AFE,5AFE..AE10#..ATM199301-199505

main17894-11130i4EFE,5EFE..EE10#199704

main17894-15020i4AFE,5AFE..AE10#..5F199106-199505

main17894-15030i4AFE,5AFE..AE10#..ATM199106-199505

main17894-15040i4AFE..AE109199605-199704

main17894-15050i4AFE..AE109199704

main17894-64040i2C..CE10#199505-199804

main17894-64070i3CE..CE10#199804

9011906340

main90119-06340

9011906374

main90119-06374

9017906178

main90179-06178

9046707136

main90467-07136

9166160840

main91661-60840

91661B0614

main91661-B0614

17 parts on this diagram · 10 diagrams in section
