ENGINE OVERHAUL GASKET KIT

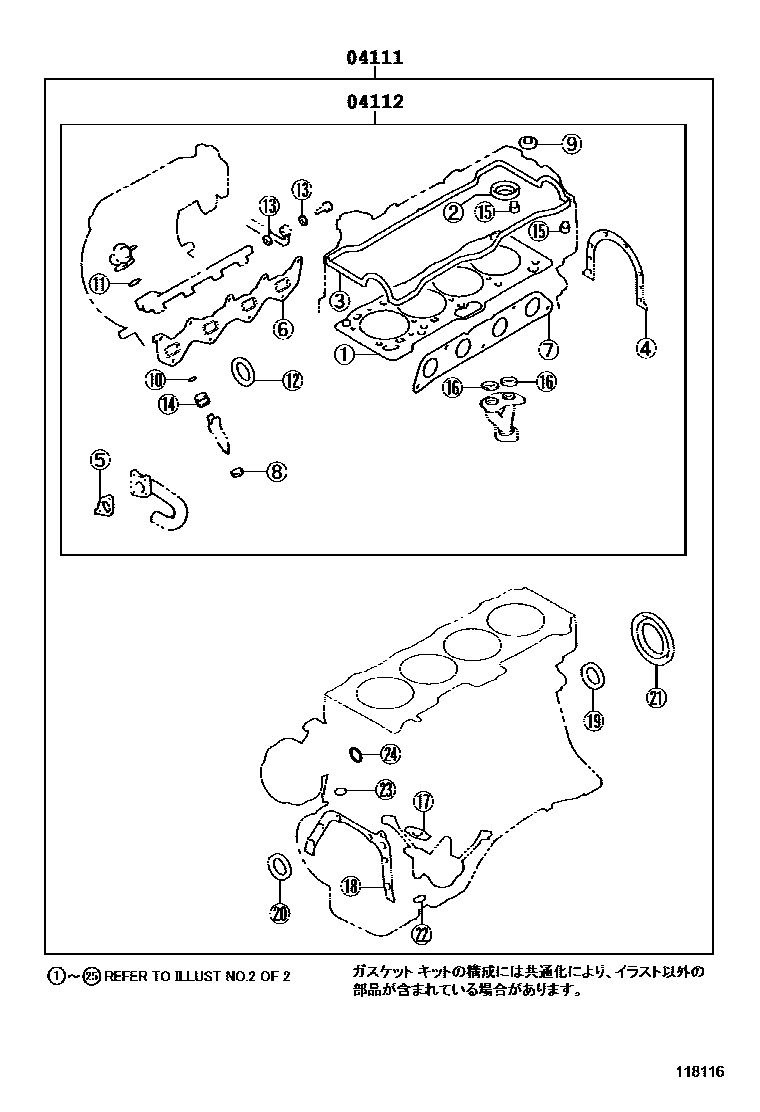

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-11024i199109-199309

main04111-11025i199309-199401

main04111-11054i199109-199401

main04111-11090i199106-199307

main04111-11091i199307-199309

main04111-11092i199309-199508

main04111-11132i199401-199508

main04111-11141i199508

main04111-11151i199508

main04111-16210i199106-199408

main04111-16211i199408-199505

main04111-16220i199106-199408

main04111-16221i199408-199505

main04111-16230i199106-199408

main04111-16231i199408

main04111-64125i199305-199401

main04111-64200i199401-199504

main04111-64201i199504-199508

main04111-64290i199508-199511

main04111-64291i199511-199704

main04111-64292i199704-199708

main04111-64293i199708-199804

main04111-64380i199804-199805

main04111-64381i199805-199811

main04111-64382i199811-199906

main04111-64383i199906

04112GASKET KIT, ENGINE VALVE GRIND

main04112-11012i199109-199401

main04112-11043i199109-199401

main04112-11080i199106-199307

main04112-11081i199307-199508

main04112-11101i199401-199508

main04112-11121i199508

main04112-11131i199508

main04112-16210i199106-199505

main04112-16220i199106-199505

main04112-16230i199106

main04112-64103i199305-199401

main04112-64140i199305-199401

main04112-64141i199504-199508

main04112-64220i199508-199511

main04112-64221i199511-199704

main04112-64222i199704-199708

main04112-64223i199708-199804

main04112-64290i199804-199906

main04112-64291i199906

2 parts on this diagram · 16 diagrams in section
