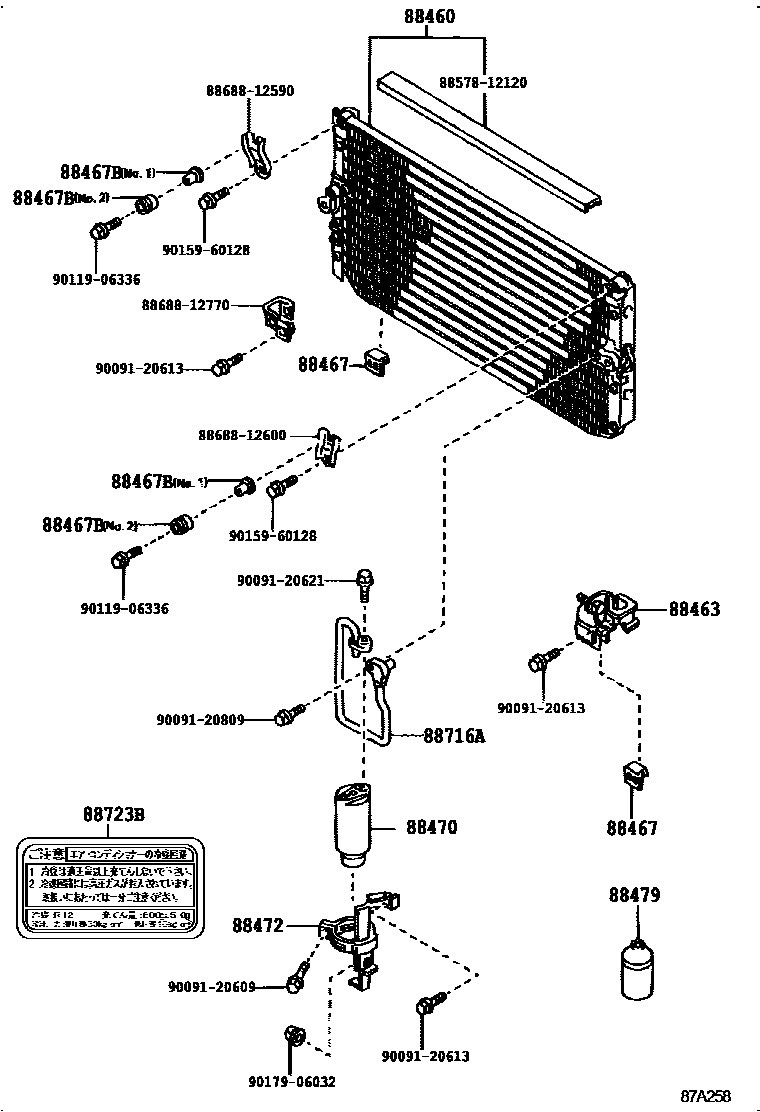

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

88460CONDENSER ASSY, COOLER

main88460-12380iEE96..4F198705-199108

main88460-12390iCE90..4FC..SE198705-199108

88463BRACKET, COOLER CONDENSER, NO.1

main88463-12040iCE90..4FC..SE;AE91,95..5F..SE198705-198803

main88463-12041iAE91..4FC..EFI;AE92,CE90..GT,SE;AE91,95..5F..(G,SE,XI)198801-199108

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12080iAE91,95,CE90,EE90..DX,L,LX,MX198705-198803

main88467-12081iAE91..4FC..EFI;AE92,CE90..GT,SE;AE91,95..5F..(G,SE,XI)198801-199108

88467BINSULATOR, COOLER CONDENSER MOUNTING

main88467-14070iAE9#,CE9#,EE9#198705-199108

main88467-20040iAE9#,CE9#,EE9#198705-199108

88470RECEIVER & DRYER ASSY, COOLER

main88471-12020iAE9#,CE90..AV2,G,GT,SE,XI198705-198805

L=167

sub88471-12060

main88471-12020iAE91..SE..EFI198805-198905

sub88471-12060

main88471-16040iEE90;EE96..3FC;AE91,CE90,96,EE98..CTD,DX,XL198908-199108

sub88471-16050

main88471-16040iAE9#,CE90..AV2,G,GT,L,LX,MX,SE,XI,XS198805-198908

L=187

sub88471-16050

88472BRACKET, RECEIVER TANK, NO.1

main88473-12040iAE91,95,CE90,EE90..AV1,DX,L,LX,MX,RVS198705-198805

main88473-12070iEE90;AE91,95,CE9#,EE96,98..AV1,DX,RVS,STD,XL198805-199108

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iAE9#,CE90..AV2,G,GT,SE,XI198705-199106

sub90986-02004

sub90986-02005

main90986-02002iEE90;AE91,95,CE9#,EE96,98..AV1,DX,RVS,STD,XL198811-198908

sub90986-02004

main90986-02004iEE90;AE91,CE90..DX198803-199108

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88726-12240iAE9#,CE90..AV2,G,GT,SE,XI198705-198805

main88726-12340iAE9#,CE90..AV2,G,GT,L,LX,MX,SE,XI,XS198805-199108

88723BLABEL, COOLER SERVICE CAUTION

main88723-12040iAE9#,CE9#,EE9#198905-199108

8857812120PAKING, COOLER AIR DUCT

main88578-12120

8868812590BRACKET, COOLER DIAPHRAGM

main88688-12590

8868812600BRACKET, COOLER DIAPHRAGM

main88688-12600

8868812770BRACKET, COOLER DIAPHRAGM

main88688-12770

9009120609

main90091-20609

9009120613

main90091-20613

9009120621

main90091-20621

9009120809

main90091-20809

9011906336

main90119-06336

9015960128

main90159-60128

9017906032

main90179-06032

20 parts on this diagram · 6 diagrams in section
