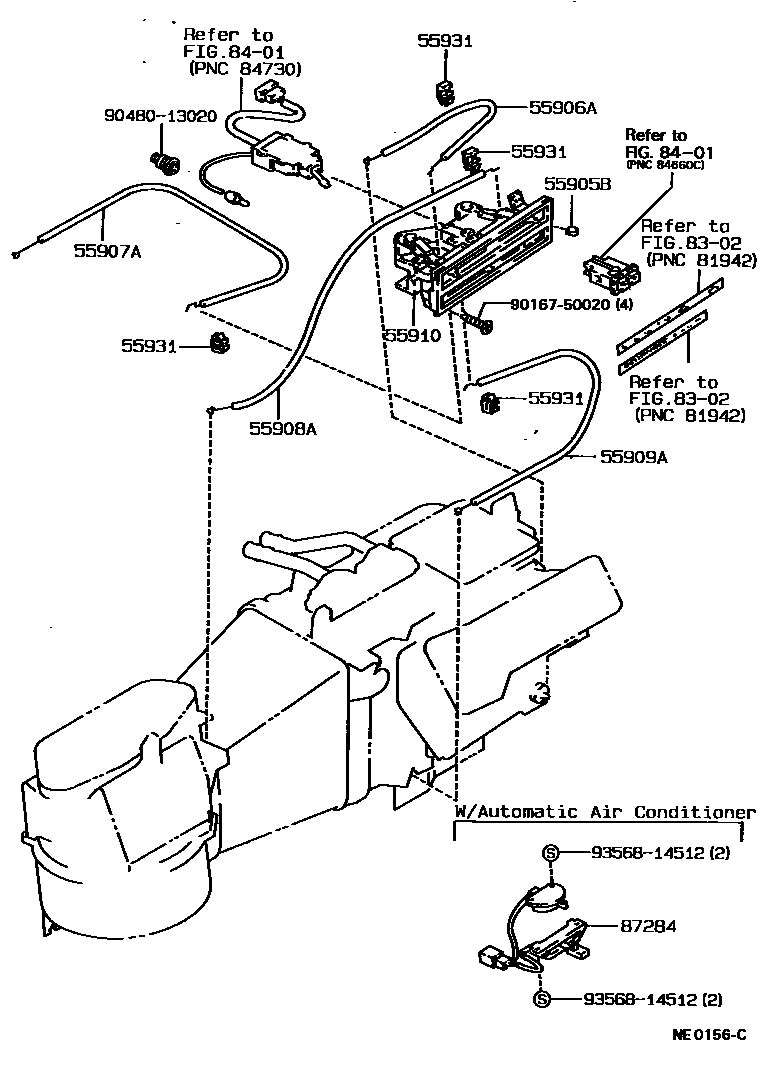

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1LEVER CONTROL TYPE 0002 1PUSH CONTROL TYPE 0003 1PUSH CONTROL TYPE 0004 1 0005 1AUTOMATIC AIR CONDITIONER

55905BKNOB, HEATER CONTROL, NO.2

main55905-12130×4iAE91,95,CE9#,EE9#..CBR,DSL,EFI198905-199108

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-12230iAE91,95,CE9#,EE9#..CBR,DSL,EFI198905-198911

main55906-12250iAE91,95,CE9#,EE9#..CBR,DSL,EFI198911-199108

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-12260iAE91..XI;AE91..CBR;AE92,95,CE9#,EE9#198705-198905

main55907-12270iAE91..SE..EFI; AE95,CE90,95..SE199005-199106

main55907-12320iAE91,95,CE9#,EE9#..CBR,DSL,EFI198911-199108

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-12190iAE91..XI;AE91..CBR;AE92,95,CE9#,EE9#198705-198905

main55908-12230iAE91,95,CE9#,EE9#..CBR,DSL,EFI198911-199108

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-12170iAE91,95,CE9#,EE9#..CBR,DSL,EFI198905-198911

main55909-12180iAE91..SE..EFI; AE95,CE90,95..SE199005-199106

main55909-12190iAE91,95,CE9#,EE9#..CBR,DSL,EFI198911-199108

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55900-12490iAE91,95,CE90,95..SE..(DSL,EFI)198908-199005

main55910-12440iAE91..XI;AE91..CBR;AE92,95,CE9#,EE9#198705-198905

main55910-12441iAE91,95,CE9#,EE9#..CBR,DSL,EFI198911-199108

main55910-12530iAE95..AV2198905-198908

55931CLAMP, HEATER CONTROL WIRE

main55933-10010×4iAE9#,CE9#,EE9#198705-199108

8302INDICATOR

→ Go to FIG 83-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87284RESISTOR SUB-ASSY, VARIABLE

main88032-12080iAE91,95,CE90..SE..(CBR,DSL)198705-198905

main88032-12090iAE91,95,CE95..AV1,G,L,LX,MX,RVS; CE90..LX,MX,SE;AE91,95,CE95..(AV2,SE)..(DSL,EFI)198908-199004

main88032-12091iAE91..XI;AE91..(G,L,LX,MX,SE)..CBR;AE92,95,CE90..AV2,GT,LX,MX,SE198810-198905

9016750020

main90167-50020

9048013020

main90480-13020

9356814512

main93568-14512

13 parts on this diagram · 5 diagrams in section
