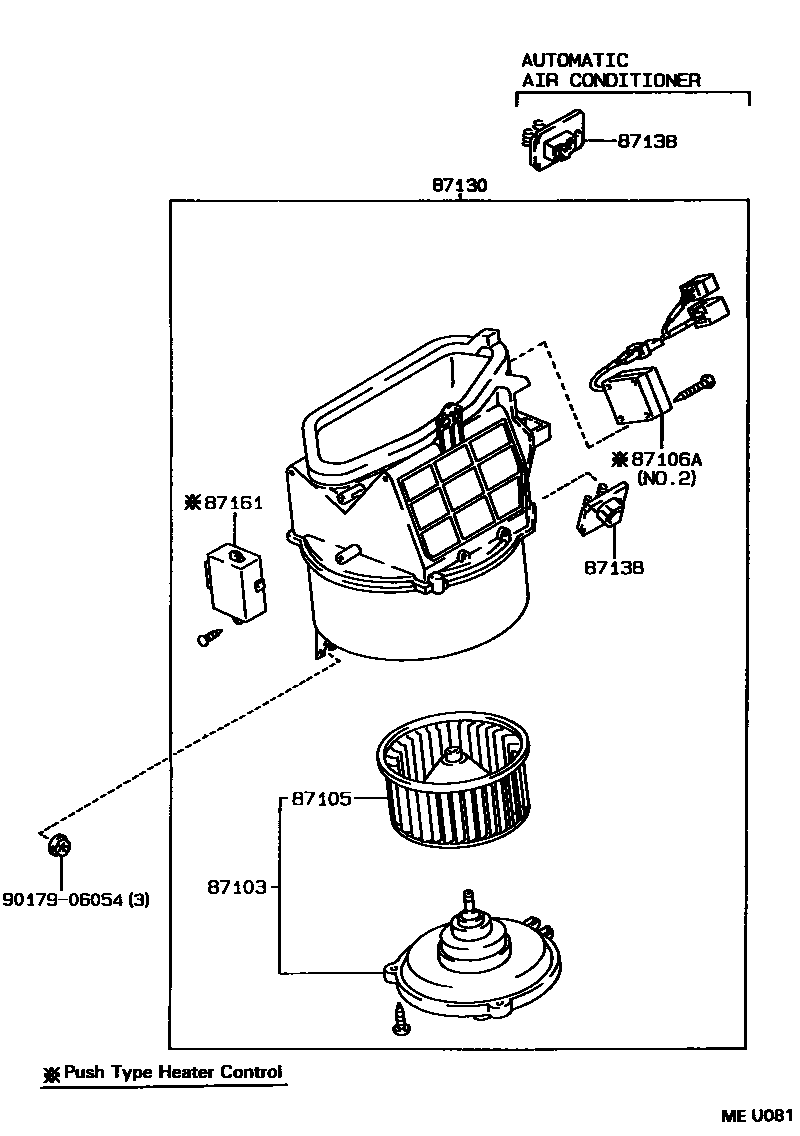

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1LEVER CONTROL TYPE 0002 1 0003 1AUTOMATIC AIR CONDITIONER

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-12010iAE9#,CE9#,EE9#198705-199108

87105FAN SUB-ASSY, HEATER BLOWER

main87105-32010iAE9#,CE9#,EE9#198705-199108

87106ASERVO SUB-ASSY, DAMPER

main87106-12010iAE91..SE..EFI; AE95,CE90,95..SE199005-199106

NO.1

main87106-12020iAE91..SE..EFI; AE95,CE90,95..SE199005-199106

NO.2

87130BLOWER ASSY, HEATER, FRONT

main87130-12250iAE91,95,CE9#,EE9#..CBR,DSL,EFI198905-199108

main87130-12260iAE91..SE..EFI; AE95,CE90,95..SE199005-199106

87138RESISTOR, HEATER BLOWER

main87138-12120iAE9#,CE9#,EE9#198705-199108

main88635-12040iAE9#,CE90,95..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XS198908-199106

87161AMPLIFIER, HEATER SERVO MOTOR

main87161-12010iAE91,95,CE90,95..SE..(DSL,EFI); AE91..EFIS;AE92,95..AV2,GT198908-199106

9017906054

main90179-06054

7 parts on this diagram · 3 diagrams in section
