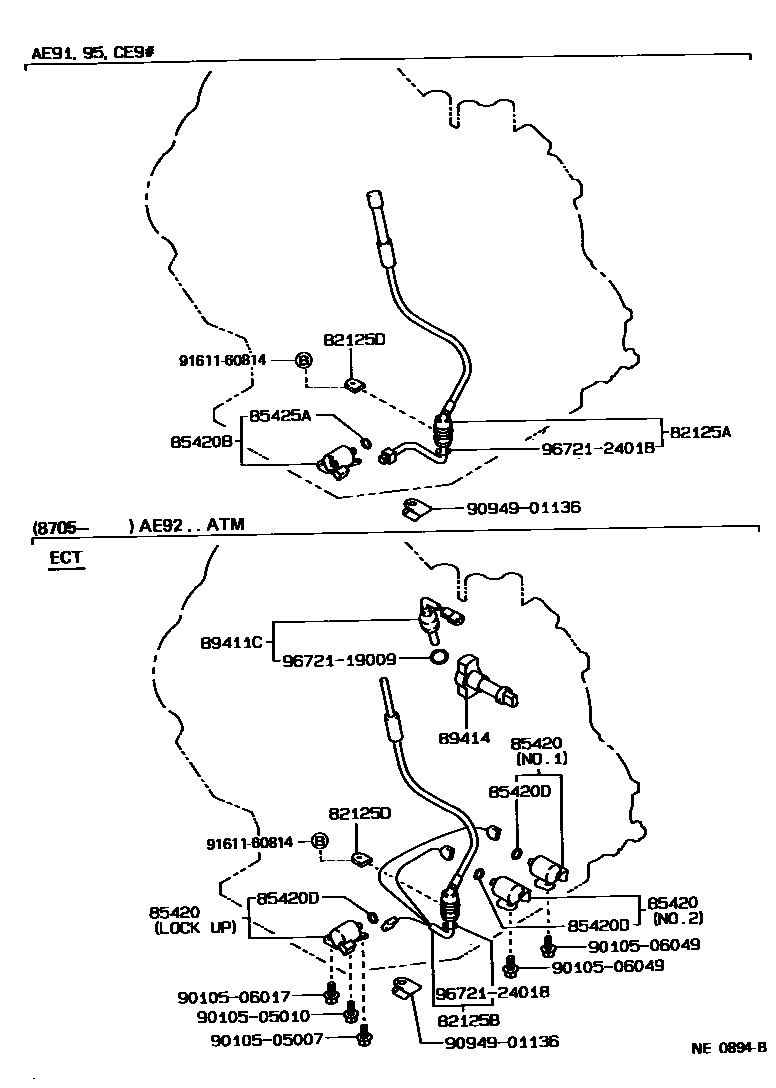

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1OVER DRIVE 0002 1 0003 1OVER DRIVE

82125AWIRE, TRANSMISSION

main82125-20100iAE95..WG..4FC;AE95..4FC..CBR;AE91,CE9#..4FC198705-198908

main82125-20130iAE95..4FC198908-199006

82125BWIRE, TRANSMISSION

main82125-17020iAE92..4FC198705-198905

82125DPLATE, TRANSMISSION WIRE LOCK

main33485-30020iAE9#,CE90,96..4FC198705-199108

85420SOLENOID ASSY, TRANSMISSION

main85420-12020×2iAE92..4FC198705-198809

NO.1,NO.2

main85420-12061iAE92..4FC198705-198809

LOCK UP

main85420-12062iAE92..4FC198705-199108

main85420-12080×2iAE92..4FC198809-199108

NO.1,NO.2

main85420-22080×2iAE92..4FC198705-199108

85420BSOLENOID ASSY, TRANSMISSION

main85420-10010iAE91,95,CE9#..4FC198705-198811

main85420-10011iAE91,95,CE90,96..4FC198811-199108

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×3iAE92..4FC198705-198905

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-06004iAE91,95,CE90,96..4FC198705-199108

89411CSENSOR, SPEED

main89411-17020iAE92..4FC198705-199106

89414ROTOR, SENSOR

main89414-12010iAE92..4FC198705-199106

9010505007

main90105-05007

9010505010

main90105-05010

9010506017

main90105-06017

9010506049

main90105-06049

9094901136

main90949-01136

9161160814

main91611-60814

9672119009

main96721-19009

9672124018

main96721-24018

17 parts on this diagram · 3 diagrams in section
