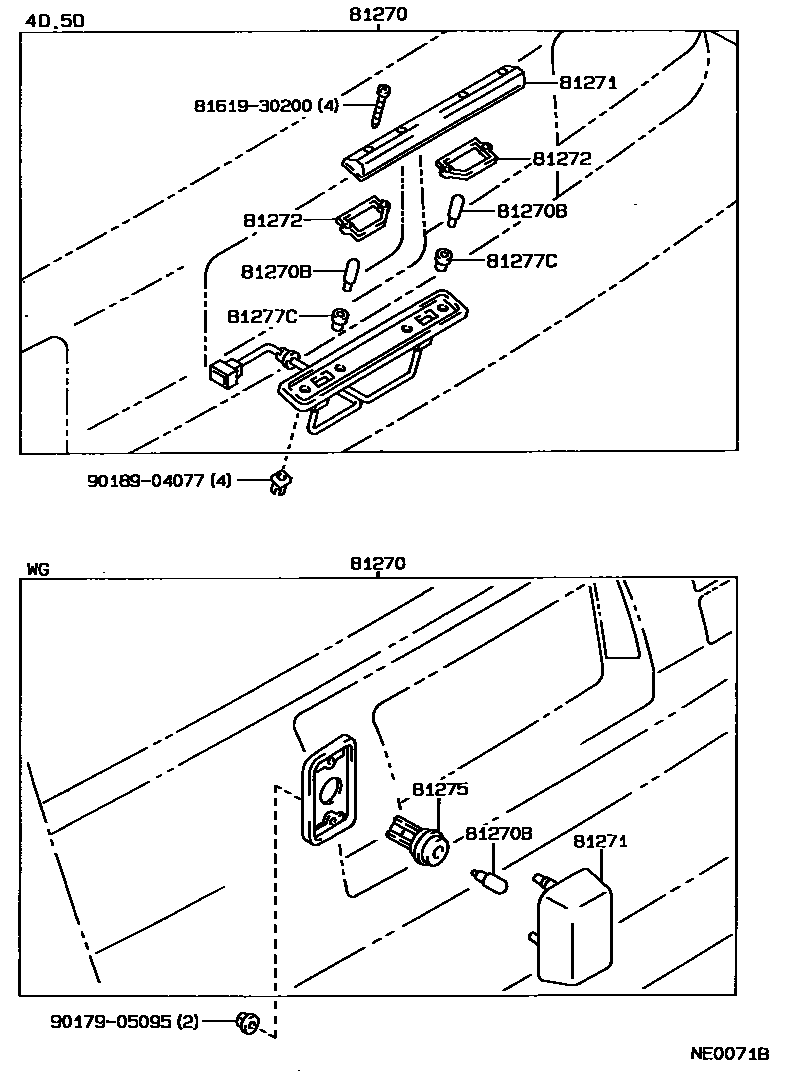

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-12310×2iAE95..WG198802-199009

main81270-12360iAE91,CE90,EE90..DX,LX198910-199106

main81270-12370-02iAE9#,CE90,EE90..G,GT,MX,SE,XI198705-198905

SUPER RED,3E5

main81270-12370-03iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XS198905-199106

GRAY METALLIC,168

main81270-12370-05iAE95..SE;AE91,CE90,EE90..MX,SE198705-198905

BEIGE METALLIC,25E

main81270-12370-08iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XS198905-199106

SUPER WHITE,040

main81270-12370-12iAE91,95,CE90,EE90..MX,SE198708-198905

RED MICA,3H4

main81270-12370-15iAE91,95,CE90,EE90..G,MX,SE,XI198705-198905

MEDIUM BEIGE-M,4H6

main81270-12370-22iAE91,95,CE90,95,EE90..LX,MX,SE198905-199004

DARK ROSE METALLIC,3J1

main81270-12370-23iAE91,92..5D..(G,GT,XS)198905-199105

MIDIUM GRAY METALLIC,22M

main81270-12370-24iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XS198905-199108

DARK BLUE MICA METAL,8E9

main81270-12370-25iAE91,95,CE90,95,EE90..LX,MX,SE198905-199106

LIGHT BEIGE METALLIC,4K1

main81270-12400iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XS198905-199106

GRAYISH GREEN M.,6K6

main81270-13210iCE96,EE96,98198808-199108

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iAE9#,CE9#,EE9#198705-199108

81271LENS, LICENSE PLATE LAMP

main81271-12290-12iAE9#,CE90,EE90..G,GT,MX,SE,XI198705-198905

SUPER RED,3E5

main81271-12290-15iAE95..SE;AE91,CE90,EE90..MX,SE198710-198905

BEIGE METALLIC,25E

main81271-12290-18iAE9#,CE90,EE90..G,GT,MX,SE,XI198705-198905

SUPER WHITE,040

main81271-12290-22iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XS198905-199106

RED MICA,3H4

main81271-12290-25iAE91,95,CE90,EE90..G,MX,SE,XI198705-198905

MEDIUM BEIGE M.,4H6

main81271-12290-27iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XS198905-199106

GRAISH GREEN M.,6K6

main81271-12290-32iAE91,95,CE90,95,EE90..LX,MX,SE198905-199004

DARK ROSE METALLIC,3J1

main81271-12290-34iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XS198905-199108

DARK BLUE MICA METAL,8E9

main81271-12290-35iAE91,95,CE90,95,EE90..LX,MX,SE198905-199106

LIGHT BEIGE METALLIC,4K1

main81271-12290-43iAE91,92..5D..(G,GT,XI)198705-198905

GRAY,26E

main81271-12290-53iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XS198905-199106

GRAY METALIC,168

main81271-12310×2iAE95..WG198802-199009

main81271-13190×2iCE96,EE96,98198808-199108

main81271-22200iAE91,CE90,EE90..DX198905-198910

81272GASKET, LICENSE PLATE LAMP LENS

main81272-22200×2iAE9#,CE90,95,EE90..4D,5D198705-199106

main81272-24010×2iCE96,EE96,98198808-198908

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main99159-10232×2iAE95..WG198802-199009

81277CSHADE, LICENSE PLATE LAMP, RH

main81277-22200×2iAE9#,CE90,95,EE90..4D,5D198705-199106

8161930200

main81619-30200

9017905095

main90179-05095

9018904077

main90189-04077

9 parts on this diagram · 2 diagrams in section
