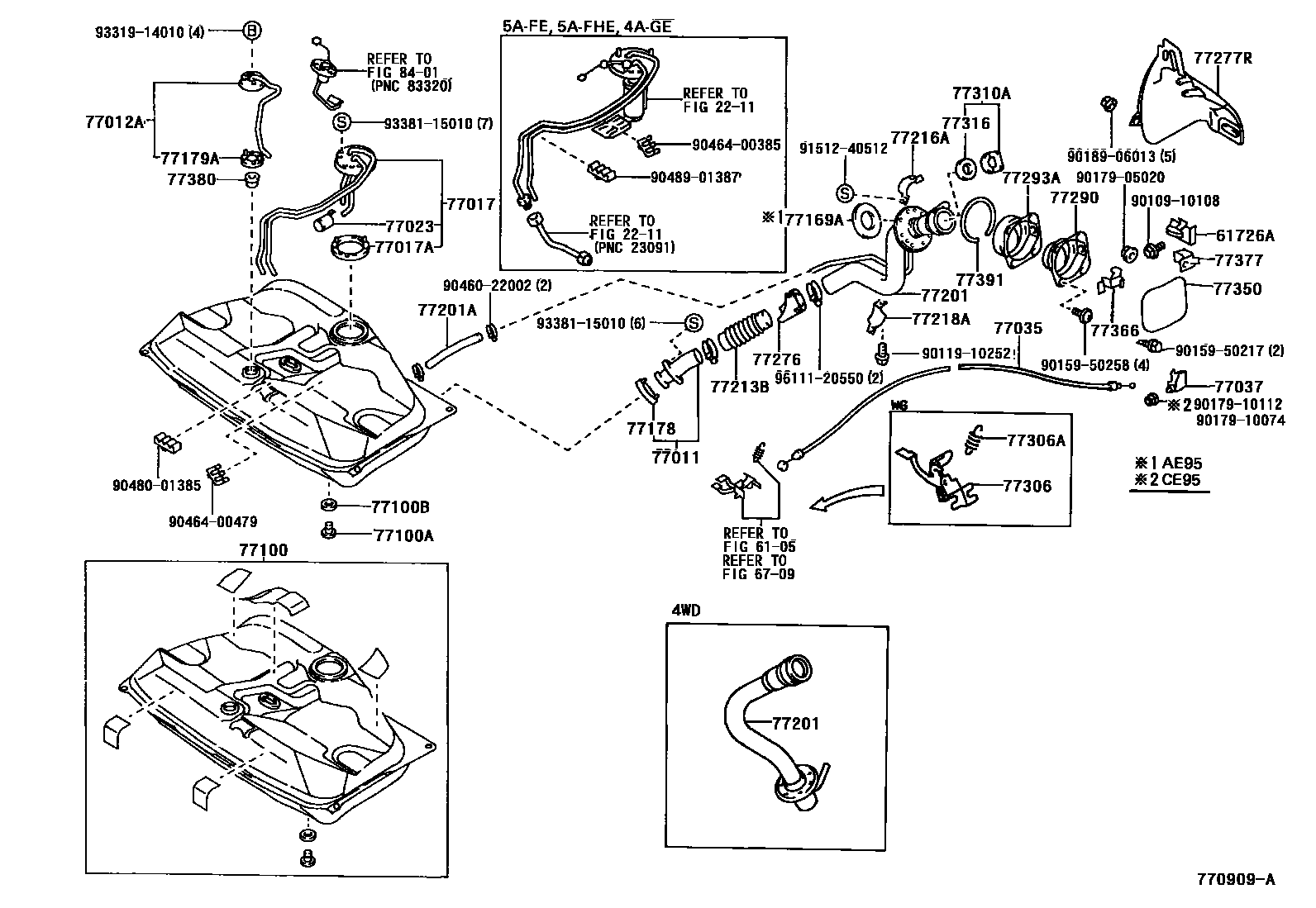

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1��(LPG) 0013 1��(LPG) 0014 1

2211

6105

61726APLATE, FUEL INLET BOX COVER

main61726-12050iAE95,CE96,EE96,98..AV1,DX,STD,XL198802-199108

main61726-12060iAE91,CE90,EE90..DX198705-199106

main61726-13020iEE96..4F..(CTD,DX)198908-199108

6709

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-12040iAE91,92,EE90198708-199106

main77011-12060iAE9#,EE90198705-198708

sub77011-12040

main77011-12080iCE90198705-199106

main77011-13020iCE96,EE96,98198808-198901

sub77011-13040

main77011-13030iCE96,EE96,98198908-199001

sub77011-13040

main77011-13040iCE96,EE96,98198901-199108

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-12010iAE9#,CE90,EE90198705-198708

sub77012-12030

main77012-12030iAE91,92,CE90,96,EE9#198708-199108

main77012-12060iAE95,CE95198710-199106

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-12270iAE91,EE90..CBR198705-198708

sub77017-12310

main77017-12310iAE91,EE9#..CBR198708-199108

main77017-12320iCE90,96198705-199108

main77017-12400iAE95..CBR198710-198905

main77017-12420iCE95198910-198912

sub77017-12430

main77017-12430iCE95198912-199106

77017AGASKET, FUEL TANK VENT

main77169-12020iCE90..SE;AE91,95,EE90..AV1,AV2,DX,G,L,LX,MX,RVS,SE198705-199108

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-14030iAE91,95,EE9#..CBR198705-199108

main77023-32010iCE9#198705-199108

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-12130iCE96,EE96,98..XL198808-199108

main77035-12230iAE9#,CE90,95,EE90..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XI,XS198705-199106

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-12050iAE9#,CE9#,EE9#..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XI,XL198705-198905

77100TANK ASSY, FUEL

main77001-19555iAE91,CE90..DX,G,L,LX,MX,SE198808-199001

sub77001-19595

sub77001-19605

main77001-19555iAE91,92,CE90..DSL,EFI198705-198912

sub77001-19595

sub77001-19605

main77001-19555iAE91,CE90..DX,G,L,LX,MX,SE198912-199001

sub77001-19595

sub77001-19605

main77001-19555iAE91,CE90..DX,G,L,LX,MX,SE199001-199106

sub77001-19595

sub77001-19605

main77001-19555iAE91,CE90..DX,G,L,LX,MX,SE199001-199106

sub77001-19595

sub77001-19605

main77001-19565iAE95,CE95198802-199106

sub77001-19585

main77001-19575iEE90198705-198908

sub77001-19595

main77001-19585iAE95..CBR198710-198905

main77001-19595iEE9#198908-199108

main77001-19605iCE96198911-199108

77100APLUG(FOR FUEL TANK)

main90341-20004iAE91,CE90,EE9#..CTD,DX,L,LX,MX,XL198705-199108

main90341-20004iAE91,CE90,EE9#..CTD,DX,G,L,LX,MX,SE,XL199001-199108

main90341-20004iAE91,92..GT,XS199001-199106

77100BGASKET(FOR FUEL TANK)

main90430-20007iAE95;AE91,92,CE9#..DSL,EFI,EFIS198705-198912

main90430-20007iAE91,92..GT,XS198912-199108

main90430-20007iAE91,92..GT,XS199001-199106

main90430-20007iAE91,CE90,EE9#..CTD,DX,G,L,LX,MX,SE,XL199001-199108

main90430-42255iEE96..4F198908-199108

77169AGASKET, FUEL SUCTION TUBE SET

main77169-12020iAE95,CE95198710-199106

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-12010iAE91,92,EE90198705-198901

main77178-20010iAE91,92,CE90,EE90198805-199108

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-16010iAE95..CBR;AE91,92,CE9#,EE9#;AE95..(AV1,AV2,LX,MX,RVS)..EFI198705-199108

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-12330iAE91,92,CE90,EE90198705-199106

sub77201-12350

main77201-12350iAE91,92,CE90,EE90199001-199106

main77201-12350iAE91,92,CE90;EE90..3FC..MX198912-199001

main77201-12380iAE95..WG198802-199009

main77201-12410iAE95,CE95..4D198710-199106

main77201-13100iEE96..4F198908-199108

main77201-13110iCE96,EE96,98198908-199001

sub77201-13120

main77201-13120iCE96,EE96,98198808-199108

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77259-13030iCE96,EE96,98198808-199108

main90445-22011iAE91,92,CE90,EE90198705-199106

sub90445-22024

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-12140iAE91,92,CE90,EE90198705-199106

main77213-13060iCE96,EE96,98198808-199108

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-12040iAE91,92,CE90,EE90198705-199106

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-12010iAE91,92,CE90,EE90198705-199106

main77218-12020iAE91,92,CE90,EE90199001-199106

main77218-12020iAE91,92,CE90;EE90..3FC..MX198912-199001

77276PROTECTOR, FUEL HOSE

main77276-12040iAE91,92,CE90,EE90198705-199106

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12080iAE91,92,CE90,EE90198705-198905

sub77277-12081

main77277-12081iAE91,92,CE90,EE90198905-199106

main77277-12110iAE95..WG198802-199009

main77277-12120iAE95..CBR198710-198905

sub77277-12121

main77277-12121iAE95,CE95..4D198905-199106

main77277-13020iCE96,EE96,98198808-199108

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-12060iAE9#,CE9#,EE9#..4D,5D,V198705-199108

main77291-12070iAE95..WG198802-199009

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-12030iAE9#,CE9#,EE9#..4D,5D,V198705-199108

main77293-12040iAE95..WG198802-199009

sub77293-12041

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-13020iAE95,CE96,EE96,98..AV1,AV2,RVS,XL198802-199108

77306ASPRING, FUEL LID OPEN LEVER

main90506-09004iAE95,CE96,EE96,98..AV1,AV2,RVS,XL198802-199108

77310ACAP ASSY, FUEL TANK

main77310-12100iAE9#,EE9#198705

main77310-35061iCE9#198705-199108

77316GASKET, FUEL TANK CAP

main77316-12050iAE9#,CE9#,EE9#198705

77350LID ASSY, FUEL FILLER OPENING

main77350-12130iAE91,CE90,EE90..DX198705-199106

main77350-12140iAE9#,CE90,95,EE90..4D..(GT,LX,MX,SE)198705-199106

main77350-12150iAE91,92..5D198705-199106

main77350-12190iCE96,EE96,98198808-199108

main77350-12200iCE96,EE96,98..XL198808-198908

main77350-12200iCE96,EE96,98..XL198908-199108

main77350-12230iAE95..AV1198802-198908

main77350-12240iAE95..AV2,RVS198802-198908

main77350-12240iAE95..WG198908-199009

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-12010iAE95,CE96,EE96,98..V,WG198802-199108

main77360-12020iAE9#,CE90,95,EE90..4D,5D198705-199106

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12040iAE9#,CE9#,EE9#..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XI,XL,XS198705-199108

77380VALVE ASSY, FUEL CUT OFF

main77380-14020iAE95..LX,MX;AE91,92,CE9#,EE9#198705-199108

77391RING, FUEL INLET BOX

main77391-14020iAE9#,CE9#,EE9#198705-199108

8401

9010910108

main90109-10108

9011910252

main90119-10252

9015950217

main90159-50217

9015950258

main90159-50258

9017905020

main90179-05020

9017910074

main90179-10074

9017910112

main90179-10112

9018906013

main90189-06013

9046022002

main90460-22002

9046400385

main90464-00385

9046400479

main90464-00479

9048001385

main90480-01385

9048901387

main90489-01387

9151240512

main91512-40512

9331914010

main93319-14010

9338115010

main93381-15010

9611120550

main96111-20550

53 parts on this diagram · 14 diagrams in section
