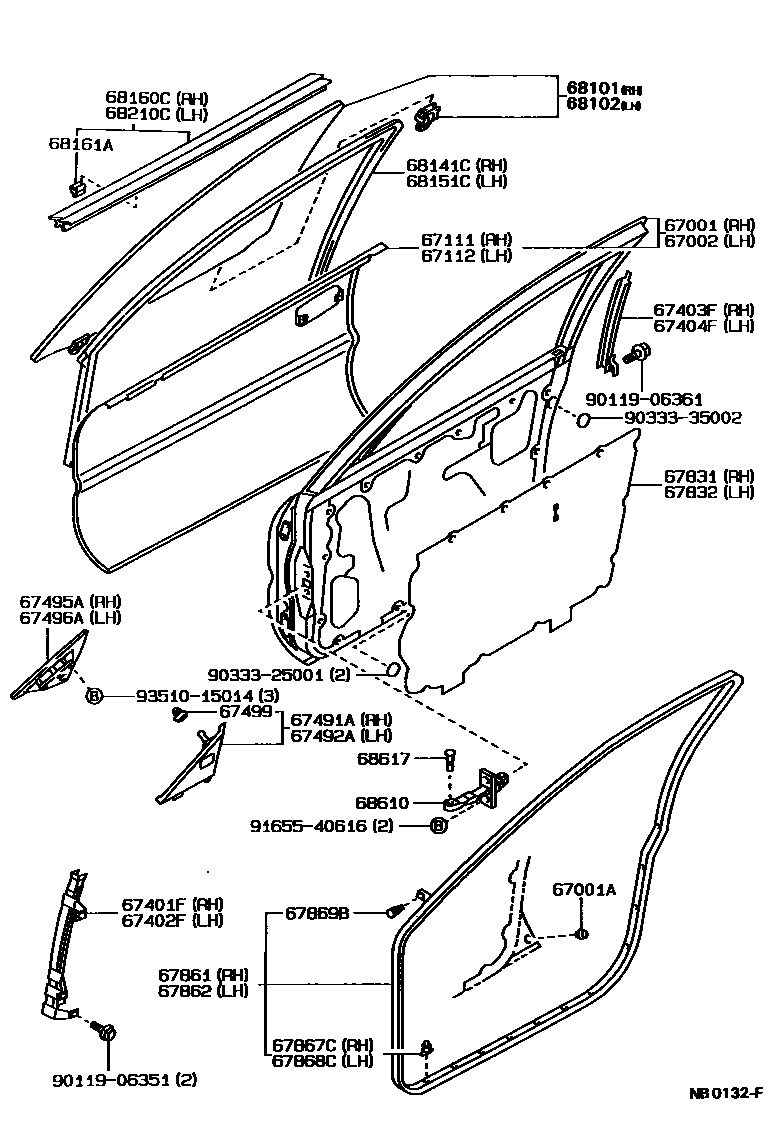

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-1A141iCE96,EE96,98198808-199108

main67001-1A240iAE9#,CE90,EE90198705-198808

main67001-1A241iAE9#,CE90,95,EE90198808-199106

67001ACUSHION, FRONT DOOR PANEL

main90541-09035×2iAE9#,CE9#,EE9#198705-199108

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-1A121iCE96,EE96,98198808-199108

main67002-1A220iAE9#,CE90,EE90198705-198808

main67002-1A221iAE9#,CE90,95,EE90198808-199106

67111PANEL, FRONT DOOR, OUTER RH

main67111-12440iCE96,EE96,98198808-199108

main67111-12460iAE9#,CE90,95,EE90198705-199106

67112PANEL, FRONT DOOR, OUTER LH

main67112-12430iCE96,EE96,98198808-199108

main67112-12450iAE9#,CE90,95,EE90198705-199106

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-12290iAE9#,CE9#,EE9#198705-199108

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-12310iAE9#,CE9#,EE9#198705-199108

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-12090iAE9#,CE90,EE90198705-198707

main67403-12100iAE91..XS;AE9#,CE9#,EE9#..CBR,DSL,EFI198707-199108

main67403-12160iAE91..SE..EFI198909-199106

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-12090iAE9#,CE90,EE90198705-198707

main67404-12100iAE9#,CE9#,EE9#198707-199108

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-12150iCE96,EE96,98198808-199108

main67491-12170iAE91,EE90..LX; AE95,CE90;AE91,92,EE90..DX,G,GT,L,MX,SE,XI198705-198905

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-12130iCE96,EE96,98198808

main67492-12170iAE91,EE90..LX; AE95,CE90;AE91,92,EE90..DX,G,GT,L,MX,SE,XI198705-198905

67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-12120iCE96,EE96,98198808-199108

main67495-12130iAE91,EE90..LX; AE91..3FC..MX; EE90..DX,MX;AE91..4F..MX;AE91..SE..EFI;AE91..DX,G,L,XI;AE92,95,CE90..AV1,AV2,DX,GT,LX,MX,RVS198705-198905

67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-12120iCE96,EE96,98198808-199108

main67496-12130iAE91,EE90..LX; AE91..3FC..MX; EE90..DX,MX;AE91..4F..MX;AE91..SE..EFI;AE91..DX,G,L,XI;AE92,95,CE90..AV1,AV2,DX,GT,LX,MX,RVS198705-198905

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-12030×2iAE91; AE95198905-199106

main67499-32010×2iAE91,EE90..LX; CE90;AE9#,EE90..DX,G,GT,L,MX,SE,XI198705-198710

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-12360iAE9#,CE9#,EE9#198905-199108

main67831-12390iAE91..SE..EFI198805-198905

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-12360iAE91..XI;AE91..CBR;AE92,95,CE9#,EE9#198705-198905

main67832-12220iAE91..SE..EFI; AE95,CE90..SE199005

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-12670iAE9#,CE90,EE90198705-198802

main67861-12671iAE9#,CE90,95,EE90198802-199106

main67861-12710iCE96,EE96,98198808-199108

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-12590iAE9#,CE90,EE90198705-198802

main67862-12591iAE9#,CE90,95,EE90198802-199106

main67862-12670iCE96,EE96,98198808-199108

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67868-12050×16iAE9#,CE9#,EE9#198705-199108

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67868-12050×16iAE9#,CE9#,EE9#198705-198905

main67868-12080×16iAE9#,CE90,EE90..4D,5D198905-198910

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-12020×2iAE95..WG198908-199009

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-12530iCE96,EE96,98..CTD,DX,STD198808-199108

main68101-12540iCE96,EE96,98..XL198808-199108

main68101-12560iAE91,CE90,EE90..DX198705-199106

main68101-12570iAE9#,CE90,EE90..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XI198705-198905

main68101-12580iAE95..AV2198809-198810

main68101-12760iAE91,92..5D..(G,GT,XS)198905-199106

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-12530iCE96,EE96,98..CTD,DX,STD198808-199108

main68102-12540iCE96,EE96,98..XL198808-199108

main68102-12560iAE91,CE90,EE90..DX198705-199106

main68102-12570iAE9#,CE90,EE90..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XI198705-198905

main68102-12580iAE95..AV2198809-198810

main68102-12760iAE91,92..5D..(G,GT,XS)198905-199106

68141CRUN, FRONT DOOR GLASS, RH

main68141-12311iCE96,EE96,98198808-199108

main68141-12350iAE9#,CE90,EE90198705-198803

main68141-12351iAE9#,CE90,95,EE90198803-199106

68151CRUN, FRONT DOOR GLASS, LH

main68151-12031iCE96,EE96,98198808-199108

main68151-12070iAE9#,CE90,EE90198705-198803

main68151-12071iAE9#,CE90,95,EE90198803-199106

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-12170iCE96,EE96,98198808-199108

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-12160×12iCE96,EE96,98198808-199108

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-12120iCE96,EE96,98198808-199108

68610CHECK ASSY, FRONT DOOR

main68610-12050×2iAE9#,CE9#,EE9#198705-199108

68617PIN, FRONT DOOR CHECK

main68617-12030×2iAE9#,CE9#,EE9#198809-199108

main68617-22020×2iAE9#,CE9#,EE9#198705-198809

9011906351

main90119-06351

9011906361

main90119-06361

9033325001

main90333-25001

9033335002

main90333-35002

9165540616

main91655-40616

9351015014

main93510-15014

36 parts on this diagram · 7 diagrams in section
