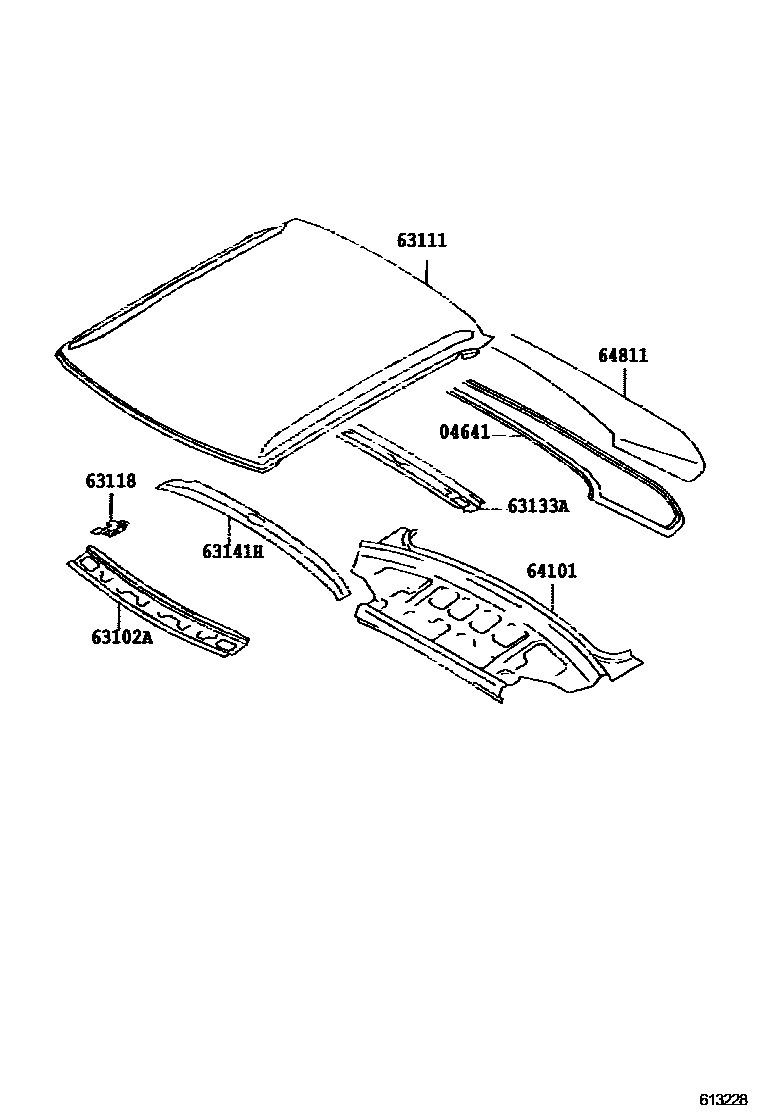

ROOF PANEL & BACK WINDOW GLASS

0001 14D 0002 1 0003 1 0004 1 0005 1 0006 1

04641DAM KIT, BACK WINDOW GLASS

main04562-12010iAE9#,CE9#,EE9#198705-199106

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-12050iAE9#,CE90,95,EE90..4D,5D198705-199106

main63102-12070iAE95..WG198802-199009

main63102-13010iCE96,EE96,98198808-199108

63111PANEL, ROOF

main63111-12340iAE9#,CE90,95,EE90..4D198705-199106

main63111-12350iAE91,92..5D198705-199106

main63111-12370iAE91,92..5D..(G,GT,XI)198705-199106

main63111-12906iAE95..WG198802-199009

main63111-12908iAE95..AV2,RVS198802-199009

main63111-12910iAE95..AV2,RVS198802-199009

main63111-12912iAE95..AV2,RVS198802-199009

main63111-13070iCE96,EE96,98198808-199108

63118SUPPORT, ROOF PANEL, RH

main63118-12010iAE91,92..5D198705-199106

main63118-12040iAE9#,CE90,95,EE90..4D198705-199106

63133AFRAME, BACK WINDOW, UPPER

main63133-12170iAE9#,CE90,95,EE90..4D198705-199106

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-12130iAE9#,CE90,95,EE90..4D,5D198705-199106

main63141-12150iAE95..WG198802-199009

64101PANEL SUB-ASSY, UPPER BACK

main64101-12370iAE9#,CE90,95,EE90..4D198705-199106

64811GLASS, BACK WINDOW

main64811-1A210iAE91,CE90,EE90..DX198705-199106

main64811-1A220iAE91,CE90,EE90..DX198705-199106

main64811-1A240iAE9#,CE90,95,EE90..4D..(GT,LX,MX,SE)198705-199106

main64811-1A260iAE9#,CE90..4D..(GT,SE)198705-199106

8 parts on this diagram · 6 diagrams in section
