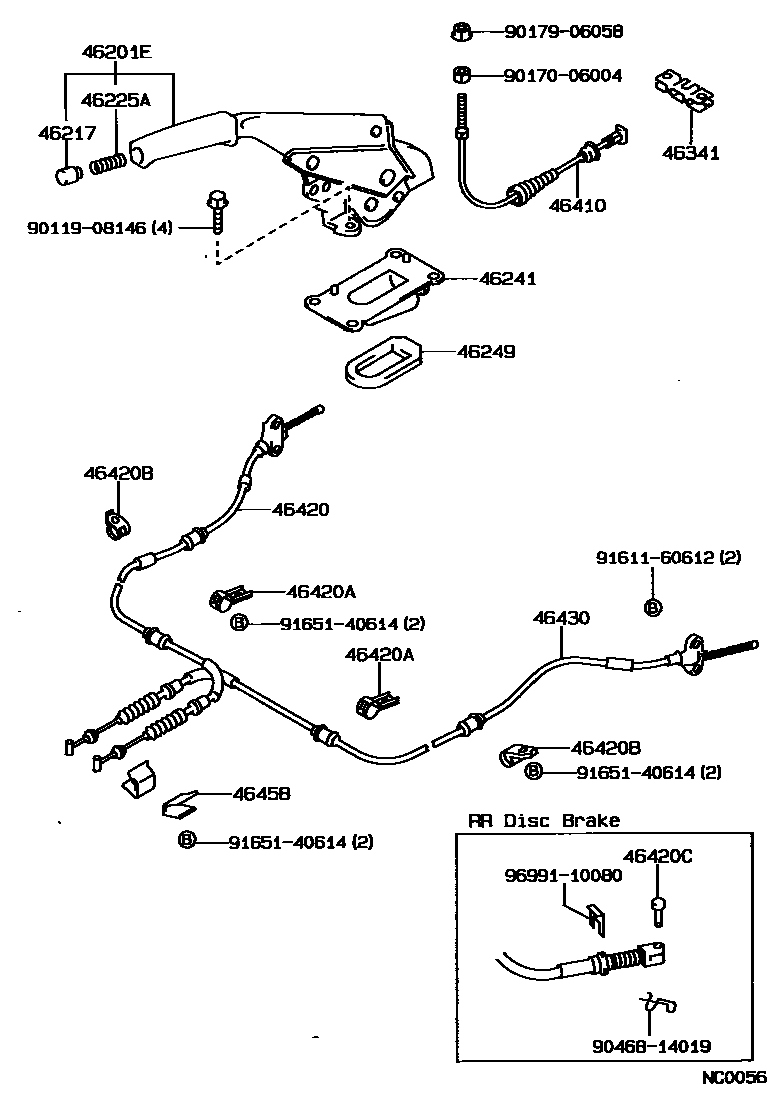

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12100-02iAE91,95,CE90,EE90..MX198705-198801

MAROON,TRIM3#

main46201-12100-03iAE91,95,CE90,EE90..DX,L,LX,MX198705-198801

SHADOW GRAY,TRIM1#

main46201-12100-05iAE91,95,CE90,EE90..L,LX,MX198705-198801

DARK BEIGE,TRIM4#

main46201-12101-03iAE95..AV1;AE95..(LX,MX)..CBR;AE91,CE9#,EE9#..DX,L,LX,MX,STD,XL198801-198908

SHADOW GRAY,TRIM1#

main46201-12101-B0iAE91..DX,L,LX,MX; AE95..LX,MX; CE90,95..DX,LX,MX; CE96,EE96; EE90,98199009-199108

SHADOW GRAY,TRIM1#

main46201-12101-D0iAE95..MX..CBR;AE91,CE90,EE90..MX198809-198908

MAROON,TRIM3#

main46201-12101-E0iAE95,CE96,EE96,98..AV1,DX,XL198905-198908

DARK BEIGE,TRIM4#

main46201-12101-J0iAE91,CE90,EE90..DX,L,LX,MX198905-198908

DARK BLUE,TRIM8#

main46201-12110-02iAE91,95,CE90..SE198705-198801

MAROON,TRIM3#

main46201-12110-03iAE9#,CE90..G,GT,SE,XI198705-198801

SHADOW GRAY,TRIM1#

main46201-12110-05iAE91,95,CE90..G,SE,XI198705-198801

DARK BEIGE,TRIM4#

main46201-12111iAE91,CE90..SE..(DSL,EFI)198909-199108

main46201-12111-03iAE91,95,CE90,95..AV2,G,RVS,SE,XS198909-199106

SHADOW GRAY,TRIM1#

main46201-12111-D0iAE91,95,CE90,95..SE198908-199106

MAROON,TRIM3#

main46201-12111-E0iAE95..RVS198905-198908

DARK BEIGE,TRIM4#

main46201-12111-J0iAE91,95,CE90,95..AV2,G,RVS,SE,XS198908-199106

DARK BLUE,TRIM8#

main46201-12140-02iAE91..SE198909-199106

main46201-12140-03iAE91..SE; AE92198909-199106

main46201-12140-04iAE91..SE198909-199106

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020iAE91,92,CE90..(GT,SE)..(DSL,EFI)198905-199108

main46217-12020-03iAE92..5D;CE90..DX,LX,MX;AE95..AV1,AV2,RVS,SE;AE91,CE96,EE9#..DX,L,LX,MX,SE,STD,XL198905-198908

SHADOW GRAY,TRIM1#

main46217-12020-D0iAE91,95..MX,SE; CE90,95,EE90..MX,SE198908-199108

MAROON,TRIM3#

main46217-12020-E0iAE95,CE96,EE96,98..AV1,DX,RVS,XL198905-198908

DARK BEIGE,TRIM4#

main46217-12020-J0iAE91,95; CE9#,EE9#198908-199108

DARK BLUE,TRIM8#

main46217-20020-15iAE91,95,CE90,EE90..G,L,LX,MX,SE,XI198705-198712

BEIGE,TRIM4#

main46217-20020-42iAE91,95,CE90,EE90..MX,SE198705-198712

MAROON,TRIM3#

main46217-20020-43iAE9#,CE90,EE90198705-198712

SHADOW GRAY,TRIM1#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iAE95;AE91,CE9#,EE9#..DX,L,LX,MX,STD,XL198811-198905

46241BOOT, PARKING BRAKE LEVER

main46241-12080iAE9#,CE9#,EE9#198705-198811

46249SHIELD, PARKING BRAKE HOLE

main46249-32010iAE91; AE92,CE9#,EE9#; AE95198905-199108

46341EQUALIZER, PARKING BRAKE

main46341-12010iAE91,92,CE90,EE90198705-198712

main46341-32010iAE95198710-198712

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12160iAE91..CBR; AE92,EE90,98; CE90..DX,LX,MX; CE96; EE96198811-198905

main46410-12190iAE95,CE95198710-199106

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12340iAE91,CE90,EE90198905-199106

main46420-12360iAE91..SE; AE92198905-199106

main46420-12370iAE95198710-198801

main46420-12371iAE95,CE95198801-199106

main46420-13050iCE96,EE96,98198808-199108

main46420-13070iEE96..4F198808-199108

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90461-12121×2iAE95198710-198801

main90949-01016×2iAE91,92,CE9#,EE9#198705-198811

main90949-01449×2iEE96198808-198908

main90949-01479iAE95,CE95198801-199106

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01015×2iAE91,CE9#,EE9#198811-198903

main90949-01746×2iCE96,EE9#199107-199108

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08040×2iAE91,92..GT,SE198905-199106

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12240iAE91,CE90,EE90..CBR,DSL; AE91..EFI198705-198905

main46430-12260iAE91..SE; AE92198905-199106

main46430-12271iAE95,CE95198801-199106

main46430-12280iAE95198710-198801

main46430-13050iCE96,EE96,98198808-199108

main46430-13070iEE96..4F198808-199108

46458RETAINER, CABLE

main46458-20020×2iAE9#,CE9#,EE9#198705-198906

main46458-50010×2iAE91; AE92,CE90,95,EE90,98; AE95; CE96,EE96198908-199108

9011908146

main90119-08146

9017006004

main90170-06004

9017906058

main90179-06058

9046814019

main90468-14019

9161160612

main91611-60612

9165140614

main91651-40614

9699110080

main96991-10080

20 parts on this diagram · 1 diagram in section
