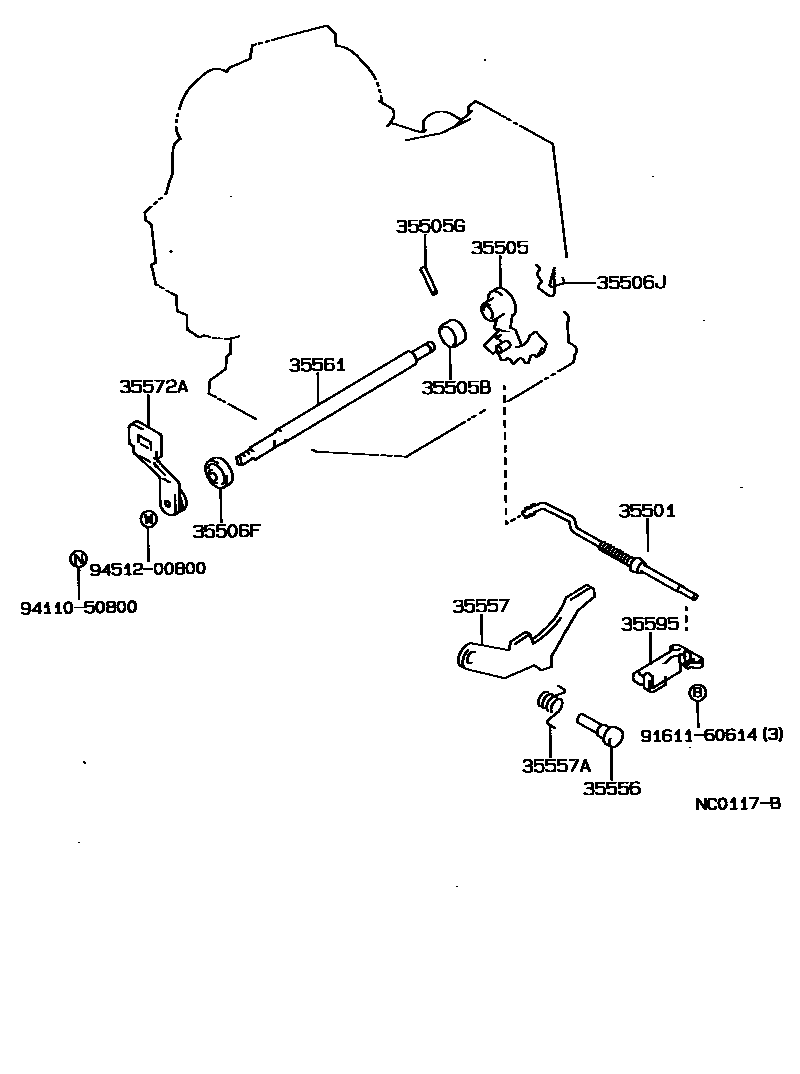

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A130L,A132L 0002 1A240L,A240E,A241L,A241H 0003 1A131L,A132L 0004 1A240L,A241H 0005 1A132L,A241H 0006 1A241L 0007 1A240E

35501ROD SUB-ASSY, PARKING LOCK

main35501-12010iAE9#,CE90,96..4FC198705-199108

main35501-32010iAE91,EE90..3FC198705-198808

main35501-32030iAE91,EE9#..3FC198808-199108

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-12020iAE9#,CE90..4FC198705-198801

sub35505-12030

main35505-12030iAE9#,CE9#..4FC198801-198811

sub35505-20040

sub35409-20010

main35505-20010iAE91,EE90..3FC198712-198808

sub35505-32040

main35505-20040iAE9#,CE90,96..4FC198811-199108

main35505-32011iAE91,EE90..3FC198705-198712

sub35505-20010

main35505-32030iAE91,EE9#..3FC198808-199108

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iAE9#,CE90,96,EE9#..ATM198705-199108

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iAE9#,CE90,96,EE9#..ATM198705-199108

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iAE9#,CE90,96,EE9#..ATM198705-199108

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iAE91,EE9#..3FC198705-199108

main90524-11001iAE9#,CE90,96..4FC198705-199108

35556SHAFT, PARKING LOCK PAWL

main35556-12020iAE91,92,CE90,96..4FC198705-199108

main35556-12030iAE95..4FC198710-199106

main35556-32010iAE91,EE9#..3FC198705-199108

35557PAWL, PARKING LOCK

main35557-12020iAE9#,CE90,96..4FC198705-199108

main35557-32020iAE91,EE9#..3FC198705-199108

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21003iAE9#,CE90,96..4FC198705-199108

main90508-26047iAE91,EE9#..3FC198705-199108

35561SHAFT, MANUAL VALVE LEVER

main35561-12020iAE9#,CE90,96..4FC198705-199108

main35561-32010iAE91,EE9#..3FC198705-199108

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-12070iEE9#..3FC198705-199108

main35572-12080iAE9#,CE90,96..4FC198705-199108

main35572-12090iAE91..3FC198705-199106

35595BRACKET, PARKING LOCK PAWL

main35595-32010iAE91,EE9#..3FC198705-199108

9161160614

main91611-60614

9411050800

main94110-50800

9451200800

main94512-00800

15 parts on this diagram · 7 diagrams in section
