HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

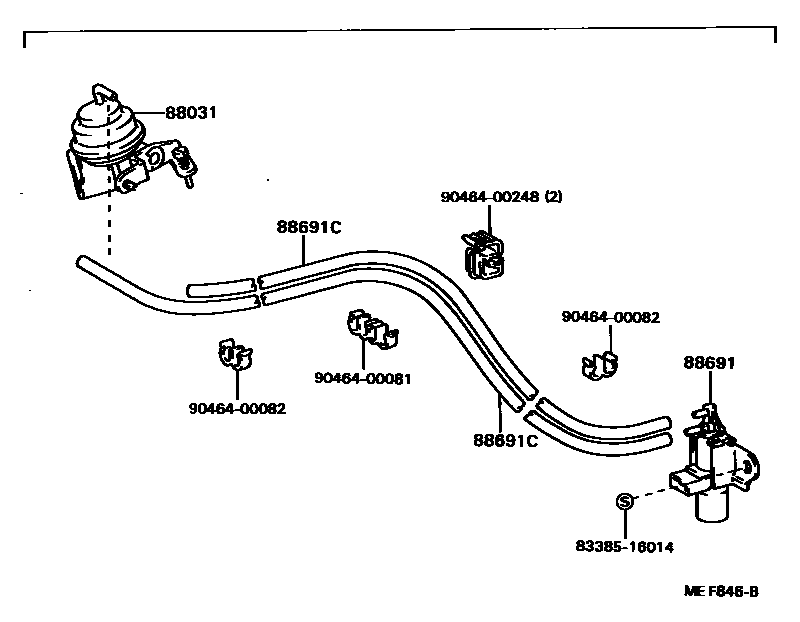

88031ACTUATOR SET, IDLE-UP

main88031-10020iEE80198505-198604

main88031-10021iEE80198604-198704

main88031-12130iAE80,81198305-198310

main88031-12131iAE80,81198310-198505

main88031-30070iCE80198305-198704

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-12280iCE80198305-198505

main88690-12281iCE80198505-198704

main88690-12290iAE80,81198305-198505

main88690-12390iAE82..SE,ZX198505-198704

main88690-12410iAE81198505-198704

main88691-12080iAE82..GT198410-198704

main88691-30430iAE82..SR,SX,ZX198305-198505

main88691-90K02iEE80198505-198704

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main88689-12060iAE82..GT198410-198704

NO.1

main88689-12070iAE82..GT198410-198704

NO.2

main90445-08168iAE82..SR,SX,ZX198305-198505

MARK=#0,L=1100

main90445-08194iAE82..SE,ZX198505-198704

MARK=#0,*H,L=1100

main90445-08205iAE82..SR,SX,ZX198305-198505

main90445-08207iAE82..SE,ZX198505-198704

main95411-10060iCE80198305-198704

main95411-10095iEE80198505-198704

main95411-11260iAE81198505-198704

MARK=#12,*H,L=510

main95411-11430iAE81198505-198704

MARK=#14,*H,L=100; MARK=#14,*H,L=60

main95411-11460iAE81198505-198704

MARK=#14,*H,L=330

main95411-19930iAE81198505-198704

main95411-19960×2iAE81198505-198704

main95411-19995iCE80198305-198704

8338516014

main83385-16014

9046400081

main90464-00081

9046400082

main90464-00082

9046400248

main90464-00248

7 parts on this diagram · 6 diagrams in section
