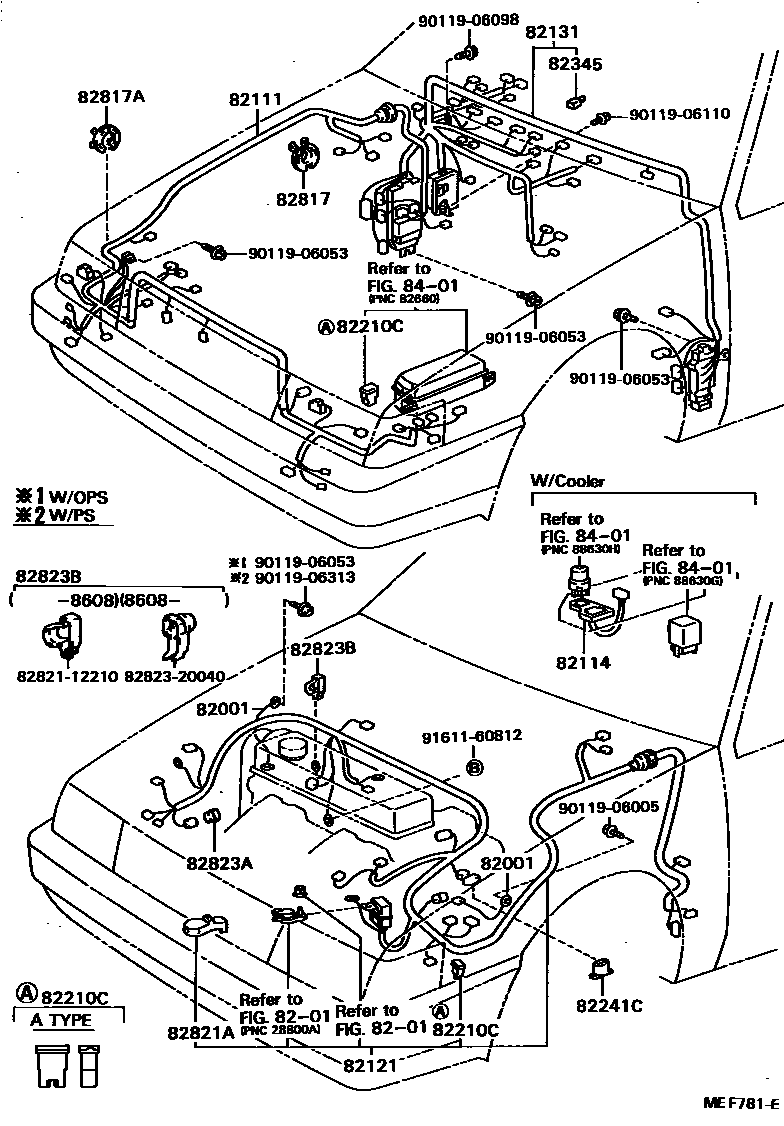

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

82001CABLE, BOND, NO.1

main90980-07206iEE80198505-198704

L=150,FENDER,LH

main90980-07228iAE8#198305-198405

L=170,ENGINE-FENDER,RH

main90980-07235iAE82..GT198410-198704

L=100,ENGINE-FENDER,RH

main90980-07236iAE8#..DX,SE,SPD,SR,SX,XL,ZX198405-198704

L=170,ENGINE-FENDER,RH

main90980-07248iEE80198505-198704

L=260,FENDER,RH

8201BATTERY & BATTERY CABLE

→ Go to FIG 82-01

82111WIRE, ENGINE ROOM MAIN

main82111-12210iAE8#..4D198305-198410

main82111-12211iAE8#..DX,SE,SPD,SR,XL198410-198505

main82111-12220iAE81,82..5D198305-198410

main82111-12221iAE81,82..5D198410-198505

main82111-12230iCE80198305-198410

main82111-12231iCE80198410-198505

main82111-12550iAE82..GT198410-198505

main82111-12660iAE81..4D198505-198704

main82111-12670iAE81..5D; AE82..SE,ZX198505-198704

main82111-12680iCE80198505-198510

main82111-12681iCE80198510-198704

main82111-12750iAE82..GT198505-198704

main82111-12800iEE80198505-198704

82114WIRE, ENGINE ROOM, NO.4

main82114-32010iAE8#,CE80,EE80198305-198704

W/COOLER

82121WIRE, ENGINE

main82121-12020iAE80;AE81..SE,SX,XL,ZX198305-198401

main82121-12021iAE80,81198401-198505

main82121-12030iCE80198305-198401

main82121-12031iCE80198401-198505

main82121-12040iCE80..3FC198305-198401

COLD SPEC

main82121-12041iCE80..ATM198401-198505

COLD SPEC

main82121-12050iAE82..5F..(SR,SX,ZX)198305-198505

main82121-12060iAE82..4FC..(SR,SX,ZX)198305-198505

main82121-12250iAE81..DX198305-198401

main82121-12390iAE82..5F..GT198410-198505

main82121-12410iAE82..4FC..GT198410-198505

main82121-12470iAE81..MTM198505-198704

main82121-12480iCE80198505-198510

main82121-12481iCE80..5F198510-198607

main82121-12490iCE80..4FC198505-198510

COLD SPEC

main82121-12491iCE80..4FC198510-198704

COLD SPEC

main82121-12500iAE82..5F..(SE,ZX)198505-198704

main82121-12510iAE82..4FC..(SE,ZX)198505-198704

main82121-12700iAE82..5F..GT198505-198608

main82121-12701iAE82..5F..GT198608-198609

main82121-12702iAE82..5F..GT198609-198704

main82121-12710iAE82..4FC..GT198505-198608

main82121-12711iAE82..4FC..GT198608-198609

main82121-12712iAE82..4FC..GT198609-198704

main82121-12740iEE80198505-198608

main82121-12741iEE80198608-198609

main82121-12742iEE80198609-198704

main82121-12750iEE80..SPD198505-198608

*52

main82121-12751iEE80..SPD198608-198609

*52

main82121-12752iEE80..SPD198609-198704

*52

main82121-12760iAE81..ATM198505-198704

main82121-1A080iCE80..4FC198510-198704

main82121-1A110iCE80..5F198607-198704

82131WIRE, COWL

main82131-12380iAE80;AE81..XL198305-198401

main82131-12381iAE80,81..(3FC,4F)..(DX,SPD,XL)198401-198410

main82131-12382iAE80,81..(3FC,4F)..(DX,SPD,XL)198410-198505

main82131-12390iAE81..SE,SX,ZX198305-198401

main82131-12392iAE80,81..(3FC,4F)..XL; AE81..4FC..XL; AE81..SE,SX,ZX198401-198410

W/DOOR ELECTRIC CONTROL MIRROR

main82131-12393iAE80,81..(3FC,4F)..XL; AE81..4FC..XL; AE81..SE,SX,ZX198410-198505

W/DOOR ELECTRIC CONTROL MIRROR

main82131-12400iCE80198305-198401

main82131-12401iCE80198401-198410

main82131-12402iCE80198410-198505

main82131-12410iAE82198305-198401

main82131-12411iAE82198401-198410

main82131-12412iAE82..SR,SX,ZX198410-198505

main82131-12420iAE82..SR,ZX198305-198401

W/DIGITAL SPEEDOMETER

main82131-12421iAE82..SR,ZX198401-198410

W/DIGITAL SPEEDOMETER

main82131-12422iAE82..SR,ZX198410-198505

W/DIGITAL SPEEDOMETER

main82131-12740iAE81..DX198401-198410

W/KNOCK CONTROL

main82131-12741iAE81..DX198410-198505

W/KNOCK CONTROL

main82131-12750iAE82..GT198410-198505

main82131-12760iAE82..GT198410-198505

W/DIGITAL SPEEDOMETER

main82131-12850iAE81..4D..(DX,XL)198505-198704

main82131-12860iAE81..4D..XL; AE81..5D..XL; AE81..SE,ZX198505-198704

W/DOOR ELECTRIC CONTROL MIRROR

main82131-12870iCE80198505-198510

main82131-12871iCE80198510-198704

main82131-12880iAE82..SE,ZX198505-198704

main82131-12890iAE82..SE,ZX198505-198704

W/DIGITAL SPEEDOMETER

main82131-1A130iAE82..GT198505-198704

main82131-1A140iAE82..GT198505-198704

W/DIGITAL SPEEDOMETER

main82131-1A220iEE80198505-198704

main82131-1A230iEE80..SPD198505-198704

*52

main82131-1E310iAE81..SE198701-198704

SE SALOON LIMITED

82210CFUSIBLE LINK

main90982-08188×3iAE8#,CE80,EE80198305-198704

main90982-08190iAE80,81,EE80198305-198704

main90982-08202iCE80198305-198510

main90982-08203×2iAE82,CE80198305-198704

main90982-08223iAE82198305-198704

82241CWIRE, RELAY

main82824-12110iAE80,81,CE80..MTM198305-198505

82345DIODE

main82345-12010iAE81;AE82..GT198505-198704

2-POLE CONNECTOR,BLACK

main82345-12020iCE80;AE8#..GT,SE,XL,ZX198505-198704

2-POLE CONNECTOR,BROWN

main82345-22010×2iAE82..GT;AE81,EE80198505-198704

4-POLE CONNECTOR

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-14360iAE8#,CE80,EE80198305-198704

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-32010iAE8#,CE80,EE80198305-198704

82821ACOVER, CONNECTOR

main82821-12180iAE82..SR,SX,ZX; CE80198305-198704

main82821-12190iAE80,81,EE80198305-198704

82823CAP, TERMINAL, NO.1

main82823-12050iAE82..GT198504-198704

1-POLE CONNECTOR(PLASTIC)

main82823-20010iAE82198305-198404

1-POLE CONNECTOR(RUBBER)

82823ACAP, TERMINAL, NO.2

main82823-14040iAE82198305-198704

2-POLE CONNECTOR

main82823-30010iAE8#,EE80198305-198704

4-POLE CONNECTOR

82823BCAP, TERMINAL, NO.3

main82821-12210iEE80198505-198608

main82823-20040iEE80198608-198609

main82823-20050iEE80198609-198704

main82823-22060iAE82..SE,ZX198607-198704

1-POLE CONNECTOR(RUBBER)

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8282112210RETAINER, HEADLAMP HARNESS

main82821-12210

8282320040CAP, TERMINAL, NO.1

main82823-20040

9011906005

main90119-06005

9011906053

main90119-06053

9011906098

main90119-06098

9011906110

main90119-06110

9011906313

main90119-06313

9161160812

main91611-60812

24 parts on this diagram · 10 diagrams in section
