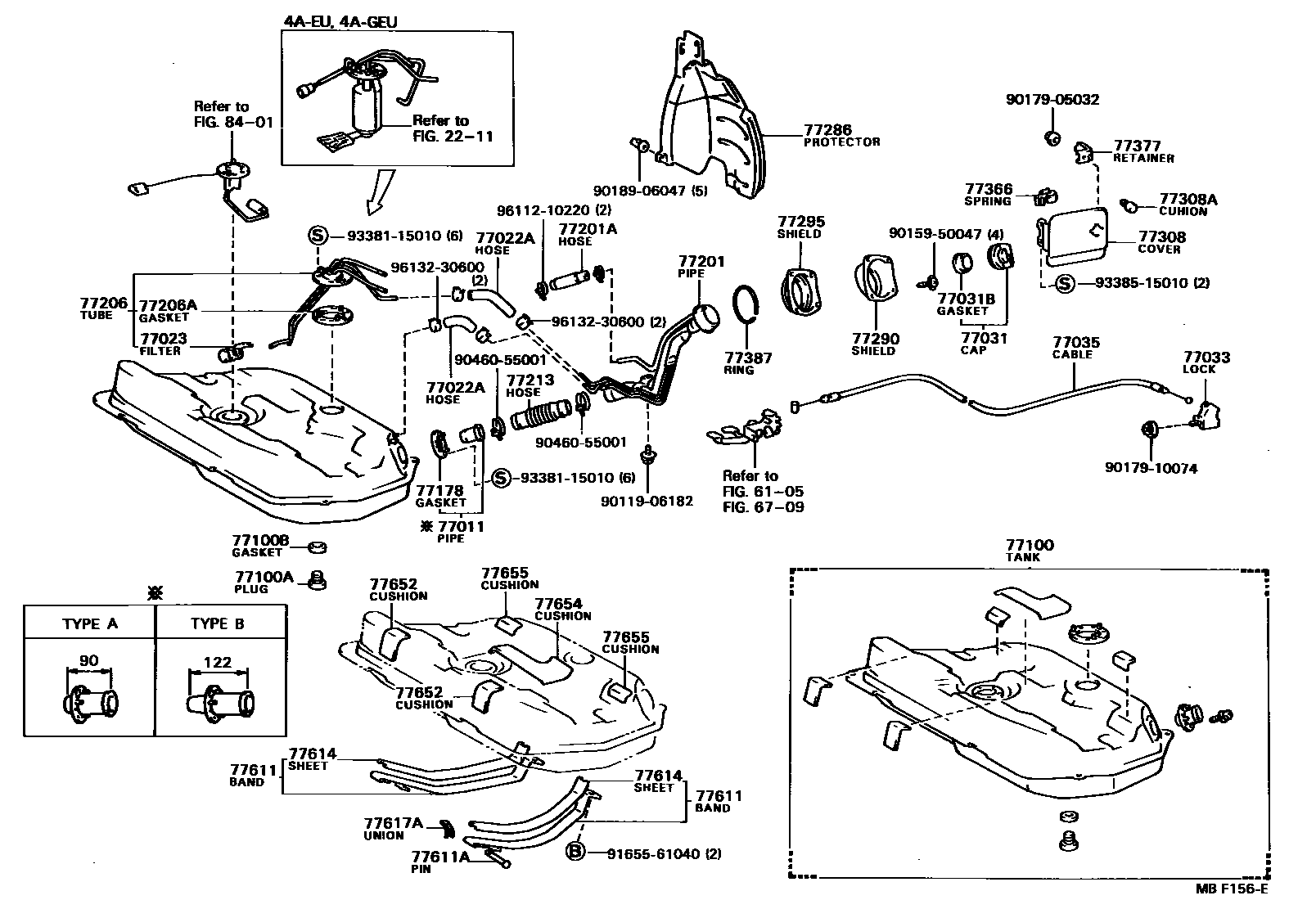

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

6105LUGGAGE COMPARTMENT DOOR & LOCK

→ Go to FIG 61-05

6709BACK DOOR LOCK & HANDLE

→ Go to FIG 67-09

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-12020iAE81..DX198401-198505

W/KNOCK CONTROL

main77011-12020iAE81..DX198305-198401

main77011-12020iEE80..SPD198505-198704

*52

main77011-16030iAE80,82,CE80198305-198704

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main77259-16040iAE8#,CE80,EE80198605-198704

L=135

main95332-06020iAE8#,CE80198305-198311

main95332-06020iAE8#,CE80,EE80198311-198605

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iAE80,81,EE80198305-198704

main77023-22040iCE80198305-198704

77031CAP ASSY, FUEL TANK

main77310-12100iAE8#,EE80198305-198704

main77310-35061iCE80198305-198704

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iAE8#,CE80,EE80198305-198704

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-12040iAE8#,CE80,EE80..DX,GT,SE,SR,SX,XL,ZX198503-198704

main77037-32010iAE80,82,CE80..DX,SE,SR,SX,XL,ZX198305-198503

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-12050iAE81..SE,SX,XL,ZX198305-198401

main77035-12050iAE8#,CE80..DX,SE,SR,SX,XL,ZX198401-198410

L=3380

main77035-12130iAE8#,CE80,EE80..DX,GT,SE,SR,SX,XL,ZX198406-198704

L=3280

77100TANK ASSY, FUEL

main77001-19315iAE82,CE80198305-198704

main77001-19325iEE80..SPD198505-198704

*52

main77001-19325iAE81..DX198305-198401

main77001-19325iAE81..DX198401-198505

W/KNOCK CONTROL

main77001-19405iAE81..SE,SX,XL,ZX198305-198704

77100APLUG(FOR FUEL TANK)

main90341-20004iAE8#,CE80,EE80198305-198704

77100BGASKET(FOR FUEL TANK)

main90430-20007iAE8#,CE80,EE80198305-198704

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-13020iAE8#,CE80,EE80198305-198704

77201PIPE SUB-ASSY, FUEL TANK INLET

main77210-12010iAE8#,CE80,EE80198305-198704

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77259-16010iAE8#,CE80,EE80198305-198704

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-12201iCE80198305-198704

main77017-16030iAE80,81,EE80198305-198704

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77178-10010iAE81,82,CE80,EE80198305-198704

77213HOSE, FUEL TANK SUB INLET

main77213-16031iAE8#,CE80,EE80198305-198704

77286PROTECTOR, FUEL TANK INLET PIPE

main77277-12050iAE8#,CE80198305-198505

main77277-12070iAE8#,CE80,EE80198505-198704

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-12020iAE8#,CE80,EE80198305-198704

77295SHIELD, FUEL FILLER PIPE

main77293-16010iAE8#,CE80,EE80198305-198704

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-12080iAE80,81,CE80,EE80..DX,SPD198305-198704

W/O OPENER

main77350-12090iAE80,82,CE80..DX,SE,SR,SX,XL,ZX198305-198704

W/OPENER

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-08010iAE8#,CE80,EE80198305-198704

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iAE8#,CE80,EE80198305-198704

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12030iAE8#,CE80,EE80..DX,SE,SR,SX,XL,ZX198408-198704

main77377-24010iAE80,82,CE80..DX,SE,SR,SX,XL,ZX198305-198408

77387RING, FUEL INLET BOX

main77391-14020iAE8#,CE80,EE80198305-198704

77611BAND, FUEL TANK

main77601-12060iAE8#,EE80198305-198704

RH

main77601-16020iCE80198305-198704

RH

main77602-16020iAE8#,CE80,EE80198305-198704

LH

77611APIN (FOR FUEL TANK BAND)

main90240-08020iAE8#,CE80,EE80198305-198704

77614SEAT, FUEL TANK BAND

main77681-16020iAE8#,CE80,EE80198305-198704

77617AUNION, AUXILIARY FUEL BAND

main77617-12010iAE8#,CE80,EE80198305-198704

77652CUSHION, FUEL TANK, NO.1

main77652-16050iAE8#,CE80,EE80198305-198704

77654CUSHION, FUEL TANK, NO.2

main77653-16020iAE8#,CE80,EE80198305-198704

77655CUSHION, FUEL TANK, NO.3

main77654-16010iAE8#,CE80,EE80198305-198704

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906182

main90119-06182

9015950047

main90159-50047

9017905032

main90179-05032

9017910074

main90179-10074

9018906047

main90189-06047

9046055001

main90460-55001

9165561040

main91655-61040

9338115010

main93381-15010

9338515010

main93385-15010

9611210220

main96112-10220

9613230600

main96132-30600

46 parts on this diagram · 4 diagrams in section
