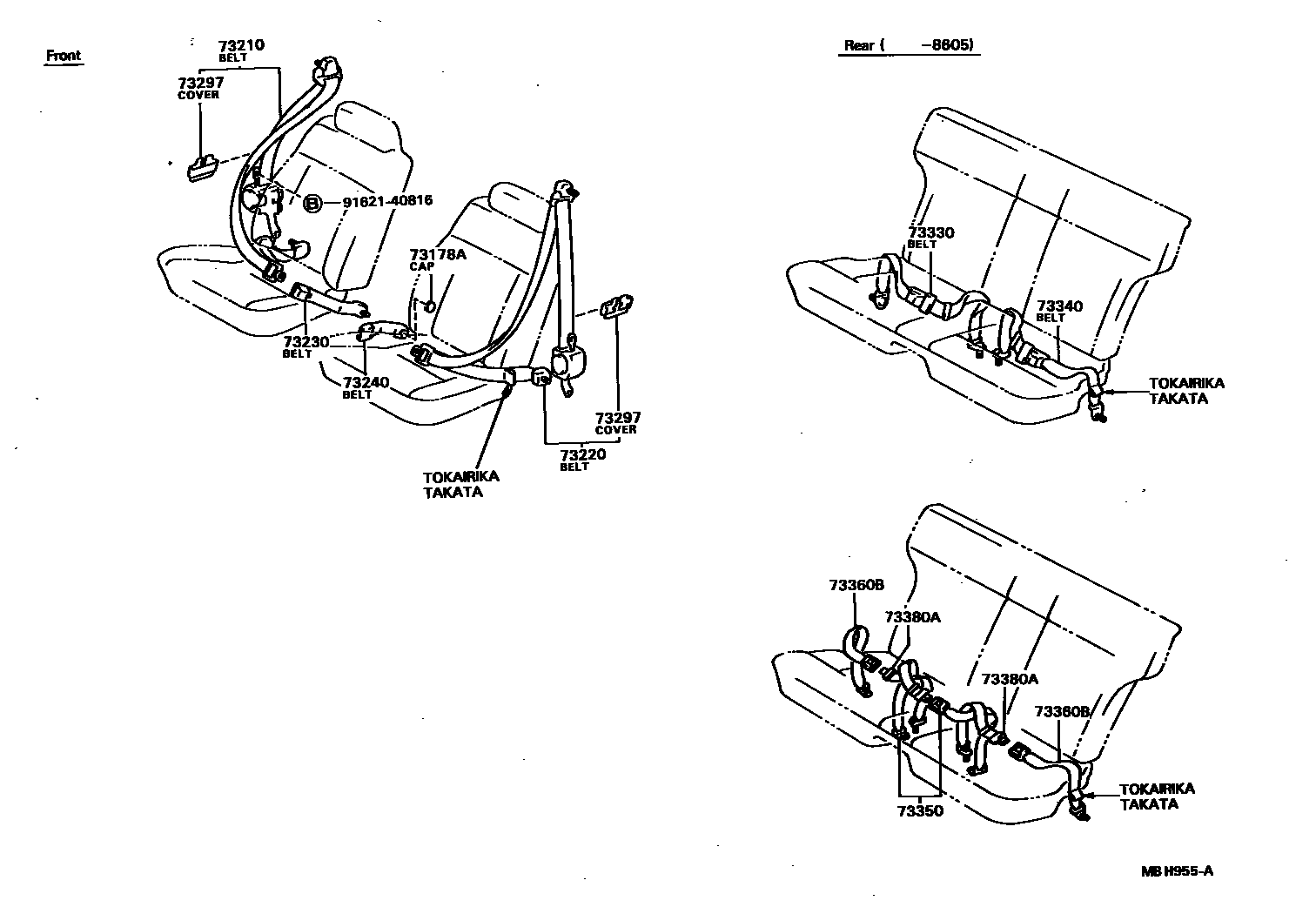

SEAT BELT & CHILD RESTRAINT SEAT

73178ACAP, SEAT BELT ANCHOR COVER

main73178-16010-12iAE8#,CE80198305-198408

MAROON,RED/MAROON,TRIM3#

sub73178-16010

main73178-16010-13iAE8#,CE80,EE80198305-198704

GRAY,GRAY,TRIM1#

sub73178-16010

main73178-16010-14iAE8#,CE80,EE80..DX,SPD,XL,ZX198305-198704

BLUE,BLUE,TRIM8#

sub73178-16010

main73178-16010-16iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198408-198704

BROWN,BROWN,TRIM4#

sub73178-16010

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-12510-02iAE8#,CE80198305-198408

TAKATA,MAROON,RED/MAROON,TRIM3#

sub73210-12510

main73210-12510-03iAE8#,CE80198305-198505

TAKATA,GRAY,GRAY,TRIM1#

sub73210-12510

main73210-12510-04iAE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX198305-198505

TAKATA,BLUE,BLUE,TRIM8#

sub73210-12510

main73210-12510-06iAE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX198408-198505

TAKATA,BROWN,BROWN,TRIM4#

sub73210-12510

main73210-12511-03iAE8#,CE80,EE80198505-198510

TAKATA,GRAY,GRAY,TRIM1#

sub73210-12512

main73210-12511-04iAE8#,CE80,EE80..DX,SPD,XL,ZX198505-198510

TAKATA,BLUE,BLUE,TRIM8#

sub73210-12512

main73210-12511-06iAE8#,CE80,EE80..DX,SE,SPD,XL,ZX198505-198510

TAKATA,BROWN,BROWN,TRIM4#

sub73210-12512

main73210-12512-03iAE8#,CE80,EE80198510-198704

TAKATA,GRAY,GRAY,TRIM1#

sub73210-12512

main73210-12512-04iAE8#,CE80,EE80..DX,SPD,XL,ZX198510-198704

TAKATA,BLUE,BLUE,TRIM8#

sub73210-12512

main73210-12512-06iAE8#,CE80,EE80..DX,SE,SPD,XL,ZX198510-198704

TAKATA,BROWN,BROWN,TRIM4#

sub73210-12512

main73210-12530-02iAE8#,CE80198305-198408

TOKAIRIKA,MAROON,RED/MAROON,TRIM3#

sub73210-12530

main73210-12530-03iAE8#,CE80198305-198505

TOKAIRIKA,GRAY,GRAY,TRIM1#

sub73210-12530

main73210-12530-04iAE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX198305-198505

TOKAIRIKA,BLUE,BLUE,TRIM8#

sub73210-12530

main73210-12530-06iAE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX198408-198505

TOKAIRIKA,BROWN,BROWN,TRIM4#

sub73210-12530

main73210-12531-03iAE8#,CE80,EE80198505-198510

TOKAIRIKA,GRAY,GRAY,TRIM1#

sub73210-12532

main73210-12531-04iAE8#,CE80,EE80..DX,SPD,XL,ZX198505-198510

TOKAIRIKA,BLUE,BLUE,TRIM8#

sub73210-12532

main73210-12531-06iAE8#,CE80,EE80..DX,SE,SPD,XL,ZX198505-198510

TOKAIRIKA,BROWN,BROWN,TRIM4#

sub73210-12532

main73210-12532-03iAE8#,CE80,EE80198510-198704

TOKAIRIKA,GRAY,GRAY,TRIM1#

sub73210-12532

main73210-12532-04iAE8#,CE80,EE80..DX,SPD,XL,ZX198510-198704

TOKAIRIKA,BLUE,BLUE,TRIM8#

sub73210-12532

main73210-12532-06iAE8#,CE80,EE80..DX,SE,SPD,XL,ZX198510-198704

TOKAIRIKA,BROWN,BROWN,TRIM4#

sub73210-12532

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-12420-02iAE8#,CE80198305-198408

TAKATA,MAROON,RED/MAROON,TRIM3#

sub73220-12420

main73220-12420-03iAE8#,CE80198305-198505

TAKATA,GRAY,GRAY,TRIM1#

sub73220-12420

main73220-12420-04iAE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX198305-198505

TAKATA,BLUE,BLUE,TRIM8#

sub73220-12420

main73220-12420-06iAE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX198408-198505

TAKATA,BROWN,BROWN,TRIM4#

sub73220-12420

main73220-12421-03iAE8#,CE80,EE80198505-198510

TAKATA,GRAY,GRAY,TRIM1#

sub73220-12422

main73220-12421-04iAE8#,CE80,EE80..DX,SPD,XL,ZX198505-198510

TAKATA,BLUE,BLUE,TRIM8#

sub73220-12422

main73220-12421-06iAE8#,CE80,EE80..DX,SE,SPD,XL,ZX198505-198510

TAKATA,BROWN,BROWN,TRIM4#

sub73220-12422

main73220-12422-03iAE8#,CE80,EE80198510-198704

TAKATA,GRAY,GRAY,TRIM1#

sub73220-12422

main73220-12422-04iAE8#,CE80,EE80..DX,SPD,XL,ZX198510-198704

TAKATA,BLUE,BLUE,TRIM8#

sub73220-12422

main73220-12422-06iAE8#,CE80,EE80..DX,SE,SPD,XL,ZX198510-198704

TAKATA,BROWN,BROWN,TRIM4#

sub73220-12422

main73220-12440-02iAE8#,CE80198305-198408

TOKAIRIKA,MAROON,RED/MAROON,TRIM3#

sub73220-12440

main73220-12440-03iAE8#,CE80198305-198505

TOKAIRIKA,GRAY,GRAY,TRIM1#

sub73220-12440

main73220-12440-04iAE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX198305-198505

TOKAIRIKA,BLUE,BLUE,TRIM8#

sub73220-12440

main73220-12440-06iAE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX198408-198505

TOKAIRIKA,BROWN,BROWN,TRIM4#

sub73220-12440

main73220-12441-03iAE8#,CE80,EE80198505-198510

TOKAIRIKA,GRAY,GRAY,TRIM1#

sub73220-12442

main73220-12441-04iAE8#,CE80,EE80..DX,SPD,XL,ZX198505-198510

TOKAIRIKA,BLUE,BLUE,TRIM8#

sub73220-12442

main73220-12441-06iAE8#,CE80,EE80..DX,SE,SPD,XL,ZX198505-198510

TOKAIRIKA,BROWN,BROWN,TRIM4#

sub73220-12442

main73220-12442-03iAE8#,CE80,EE80198510-198704

TOKAIRIKA,GRAY,GRAY,TRIM1#

sub73220-12442

main73220-12442-04iAE8#,CE80,EE80..DX,SPD,XL,ZX198510-198704

TOKAIRIKA,BLUE,BLUE,TRIM8#

sub73220-12442

main73220-12442-06iAE8#,CE80,EE80..DX,SE,SPD,XL,ZX198510-198704

TOKAIRIKA,BROWN,BROWN,TRIM4#

sub73220-12442

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-12210-02iAE8#,CE80198305-198408

TAKATA,MAROON,RED/MAROON,TRIM3#

sub73230-12210

sub73230-12211

main73230-12210-03iAE8#,CE80198305-198505

TAKATA,GRAY,GRAY,TRIM1#

sub73230-12210

sub73230-12211

main73230-12210-04iAE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX198305-198505

TAKATA,BLUE,BLUE,TRIM8#

sub73230-12210

sub73230-12211

main73230-12210-06iAE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX198408-198505

TAKATA,BROWN,BROWN,TRIM4#

sub73230-12210

sub73230-12211

main73230-12211-03iAE8#,CE80,EE80198505-198704

TAKATA,GRAY,GRAY,TRIM1#

main73230-12211-04iAE8#,CE80,EE80..DX,SPD,XL,ZX198505-198704

TAKATA,BLUE,BLUE,TRIM8#

main73230-12211-06iAE8#,CE80,EE80..DX,SE,SPD,XL,ZX198505-198704

TAKATA,BROWN,BROWN,TRIM4#

main73230-12240-02iAE8#,CE80198305-198408

TOKAIRIKA,MAROON,RED/MAROON,TRIM3#

sub73230-12240

sub73230-12301

main73230-12240-03iAE8#,CE80,EE80198305-198704

TOKAIRIKA,GRAY,GRAY,TRIM1#

sub73230-12240

sub73230-12301

main73230-12240-04iAE8#,CE80,EE80..DX,SPD,XL,ZX198305-198704

TOKAIRIKA,BLUE,BLUE,TRIM8#

sub73230-12240

sub73230-12301

main73230-12240-06iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198408-198704

TOKAIRIKA,BROWN,BROWN,TRIM4#

sub73230-12240

sub73230-12301

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-12210-02iAE8#,CE80198305-198408

TAKATA,MAROON,RED/MAROON,TRIM3#

sub73230-12210

sub73230-12211

main73230-12210-03iAE8#,CE80198305-198505

TAKATA,GRAY,GRAY,TRIM1#

sub73230-12210

sub73230-12211

main73230-12210-04iAE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX198305-198505

TAKATA,BLUE,BLUE,TRIM8#

sub73230-12210

sub73230-12211

main73230-12210-06iAE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX198408-198505

TAKATA,BROWN,BROWN,TRIM4#

sub73230-12210

sub73230-12211

main73230-12211-03iAE8#,CE80,EE80198505-198704

TAKATA,GRAY,GRAY,TRIM1#

main73230-12211-04iAE8#,CE80,EE80..DX,SPD,XL,ZX198505-198704

TAKATA,BLUE,BLUE,TRIM8#

main73230-12211-06iAE8#,CE80,EE80..DX,SE,SPD,XL,ZX198505-198704

TAKATA,BROWN,BROWN,TRIM4#

main73230-12240-02iAE8#,CE80198305-198408

TOKAIRIKA,MAROON,RED/MAROON,TRIM3#

sub73230-12240

sub73230-12301

main73230-12240-03iAE8#,CE80,EE80198305-198704

TOKAIRIKA,GRAY,GRAY,TRIM1#

sub73230-12240

sub73230-12301

main73230-12240-04iAE8#,CE80,EE80..DX,SPD,XL,ZX198305-198704

TOKAIRIKA,BLUE,BLUE,TRIM8#

sub73230-12240

sub73230-12301

main73230-12240-06iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198408-198704

TOKAIRIKA,BROWN,BROWN,TRIM4#

sub73230-12240

sub73230-12301

73297COVER, QUARTER TRIM OR CENTER PILLAR BELT HOLE

main73297-12050-02iAE8#,CE80198305-198408

RH,MAROON,RED/MAROON,TRIM3#

sub73297-12050

main73297-12050-03iAE8#,CE80,EE80198305-198704

RH,GRAY,GRAY,TRIM1#

sub73297-12050

main73297-12050-04iAE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX198305-198704

RH,BLUE,BLUE,TRIM8#

sub73297-12050

main73297-12050-06iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198408-198704

RH,BROWN,BROWN,TRIM4#

sub73297-12050

main73298-12050-02iAE8#,CE80198305-198408

LH,MAROON,RED/MAROON,TRIM3#

sub73298-12050

main73298-12050-03iAE8#,CE80,EE80198305-198704

LH,GRAY,GRAY,TRIM1#

sub73298-12050

main73298-12050-04iAE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX198305-198704

LH,BLUE,BLUE,TRIM8#

sub73298-12050

main73298-12050-06iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198408-198704

LH,BROWN,BROWN,TRIM4#

sub73298-12050

73330BELT ASSY, REAR SEAT LAP TYPE, RH

main73330-12180-03iAE8#,CE80,EE80198305-198605

TAKATA,GRAY,GRAY,TRIM1#

main73330-12180-04iAE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX198305-198605

TAKATA,BLUE,BLUE,TRIM8#

main73330-12180-06iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198408-198605

TAKATA,BROWN,BROWN,TRIM4#

main73330-12190-02iAE8#,CE80198305-198408

TOKAIRIKA,MAROON,RED/MAROON,TRIM3#

sub73330-12190

main73330-12190-03iAE8#,CE80,EE80198305-198605

TOKAIRIKA,GRAY,GRAY,TRIM1#

sub73330-12190

main73330-12190-04iAE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX198305-198605

TOKAIRIKA,BLUE,BLUE,TRIM8#

sub73330-12190

main73330-12190-06iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198408-198605

TOKAIRIKA,BROWN,BROWN,TRIM4#

sub73330-12190

73340BELT ASSY, REAR SEAT LAP TYPE, LH

main73330-12180-03iAE8#,CE80,EE80198305-198605

TAKATA,GRAY,GRAY,TRIM1#

main73330-12180-04iAE8#,CE80,EE80..DX,SPD,XL,ZX198305-198605

TAKATA,BLUE,BLUE,TRIM8#

main73330-12180-06iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198408-198605

TAKATA,BROWN,BROWN,TRIM4#

main73330-12190-02iAE8#,CE80198305-198408

TOKAIRIKA,MAROON,RED/MAROON,TRIM3#

sub73330-12190

main73330-12190-03iAE8#,CE80,EE80198305-198605

TOKAIRIKA,GRAY,GRAY,TRIM1#

sub73330-12190

main73330-12190-04iAE8#,CE80,EE80..DX,SPD,XL,ZX198305-198605

TOKAIRIKA,BLUE,BLUE,TRIM8#

sub73330-12190

main73330-12190-06iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198408-198605

TOKAIRIKA,BROWN,BROWN,TRIM4#

sub73330-12190

73350BELT ASSY, REAR SEAT LAP TYPE, CENTER

main73350-12090-03iAE8#,CE80,EE80198605-198704

TAKATA,GRAY,GRAY,TRIM1#

main73350-12090-04iAE8#,CE80,EE80..DX,SPD,XL,ZX198605-198704

TAKATA,BLUE,BLUE,TRIM8#

main73350-12090-06iAE8#,CE80,EE80..DX,SE,SPD,XL,ZX198605-198704

TAKATA,BROWN,BROWN,TRIM4#

main73350-12100-03iAE8#,CE80,EE80198605-198704

TOKAIRIKA,GRAY,GRAY,TRIM1#

main73350-12100-04iAE8#,CE80,EE80..DX,SPD,XL,ZX198605-198704

TOKAIRIKA,BLUE,BLUE,TRIM8#

main73350-12100-06iAE8#,CE80,EE80..DX,SE,SPD,XL,ZX198605-198704

TOKAIRIKA,BROWN,BROWN,TRIM4#

73360BBELT ASSY, REAR SEAT, OUTER

main73360-12260-03iAE8#,CE80,EE80198605-198704

TAKATA,GRAY,GRAY,TRIM1#

main73360-12260-04iAE8#,CE80,EE80..DX,SPD,XL,ZX198605-198704

TAKATA,BLUE,BLUE,TRIM8#

main73360-12260-06iAE8#,CE80,EE80..DX,SE,SPD,XL,ZX198605-198704

TAKATA,BROWN,BROWN,TRIM4#

main73360-12270-03iAE8#,CE80,EE80198605-198704

TOKAIRIKA,GRAY,GRAY,TRIM1#

main73360-12270-04iAE8#,CE80,EE80..DX,SPD,XL,ZX198605-198704

TOKAIRIKA,BLUE,BLUE,TRIM8#

main73360-12270-06iAE8#,CE80,EE80..DX,SE,SPD,XL,ZX198605-198704

TOKAIRIKA,BROWN,BROWN,TRIM4#

73380ABELT ASSY, REAR SEAT, INNER

main73380-12140-03iAE8#,CE80,EE80198605-198704

TAKATA,GRAY,GRAY,TRIM1#

main73380-12140-04iAE8#,CE80,EE80..DX,SPD,XL,ZX198605-198704

TAKATA,BLUE,BLUE,TRIM8#

main73380-12140-06iAE8#,CE80,EE80..DX,SE,SPD,XL,ZX198605-198704

TAKATA,BROWN,BROWN,TRIM4#

main73380-12150-03iAE8#,CE80,EE80198605-198704

TOKAIRIKA,GRAY,GRAY,TRIM1#

main73380-12150-04iAE8#,CE80,EE80..DX,SPD,XL,ZX198605-198704

TOKAIRIKA,BLUE,BLUE,TRIM8#

main73380-12150-06iAE8#,CE80,EE80..DX,SE,SPD,XL,ZX198605-198704

TOKAIRIKA,BROWN,BROWN,TRIM4#

9162140816

main91621-40816

12 parts on this diagram · 1 diagram in section
