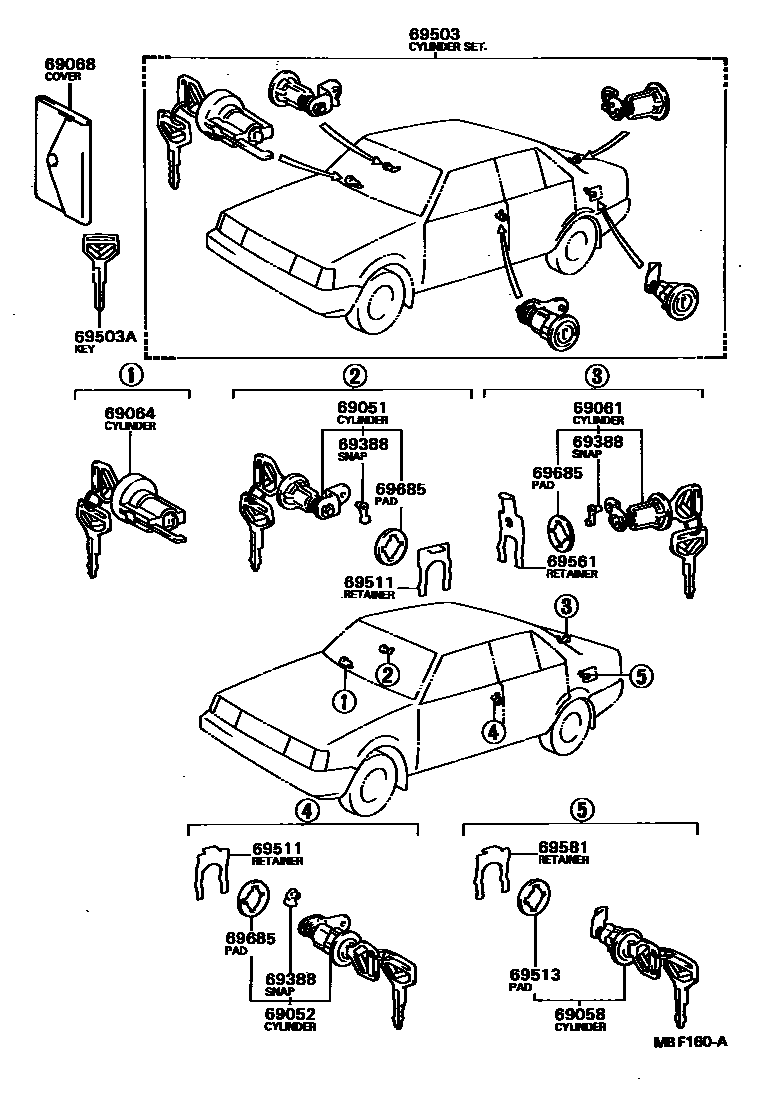

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-12160iAE8#,CE80,EE80198305-198704

sub69051-10081

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-12160iAE8#,CE80,EE80198305-198704

sub69052-10081

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-12100iAE80,81,CE80,EE80..DX,SPD198305-198704

sub69058-20041

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-12220iAE8#,CE80,EE80..4D198305-198704

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12120iAE8#,CE80,EE80198612-198704

sub69057-12130

main69057-16040iAE8#,CE80,EE80198305-198612

sub69057-16061

69068COVER SUB-ASSY, KEY

main69555-20010iAE8#,CE80,EE80198305-198704

69388SNAP, ROD(FOR DOOR LOCK)

main69759-20080iAE8#,CE80,EE80198305-198704

RH DOOR,LUGGAGE

main69759-20090iAE8#,CE80,EE80198305-198704

LH DOOR

69503CYLINDER SET, LOCK

main69005-12310iAE80,81,CE80,EE80..DX,SPD198305-198612

W/O ORENER

sub69005-12330

main69005-12311iAE81,CE80,EE80..DX,SPD198612-198704

W/O ORENER

sub69005-12331

main69005-12350iAE81,82,CE80,EE80..5D198305-198612

sub69005-12580

main69005-12351iAE8#,EE80..5D198612-198704

sub69005-12581

main69005-12550iAE80,CE80..DX,SE,XL198305-198612

W/OPENER

sub69005-12560

main69005-12551iAE8#,CE80,EE80..4D..(DX,GT,SE,XL)198612-198704

W/OPENER

sub69005-12711

69503AKEY, BLANK

main90999-00085iAE8#,CE80,EE80198305-198704

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iAE8#,CE80,EE80198305-198704

69513PAD, FUEL FILLER LID LOCK CYLINDER

main69513-32010iAE80,81,CE80,EE80..DX,SPD198305-198704

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69561-12120iAE81,82,CE80,EE80..5D198305-198704

main69561-12150iAE8#,CE80,EE80..4D198305-198704

69581RETAINER, FUEL FILLER LID CYLINDER

main69511-32010iAE80,81,CE80,EE80..DX,SPD198305-198704

69685PAD, LOCK CYLINDER

main69513-32010iAE8#,CE80,EE80198305-198704

DOOR

main69563-32010iAE8#,CE80,EE80198305-198704

LUGGAGE,BACK DOOR

14 parts on this diagram · 2 diagrams in section
