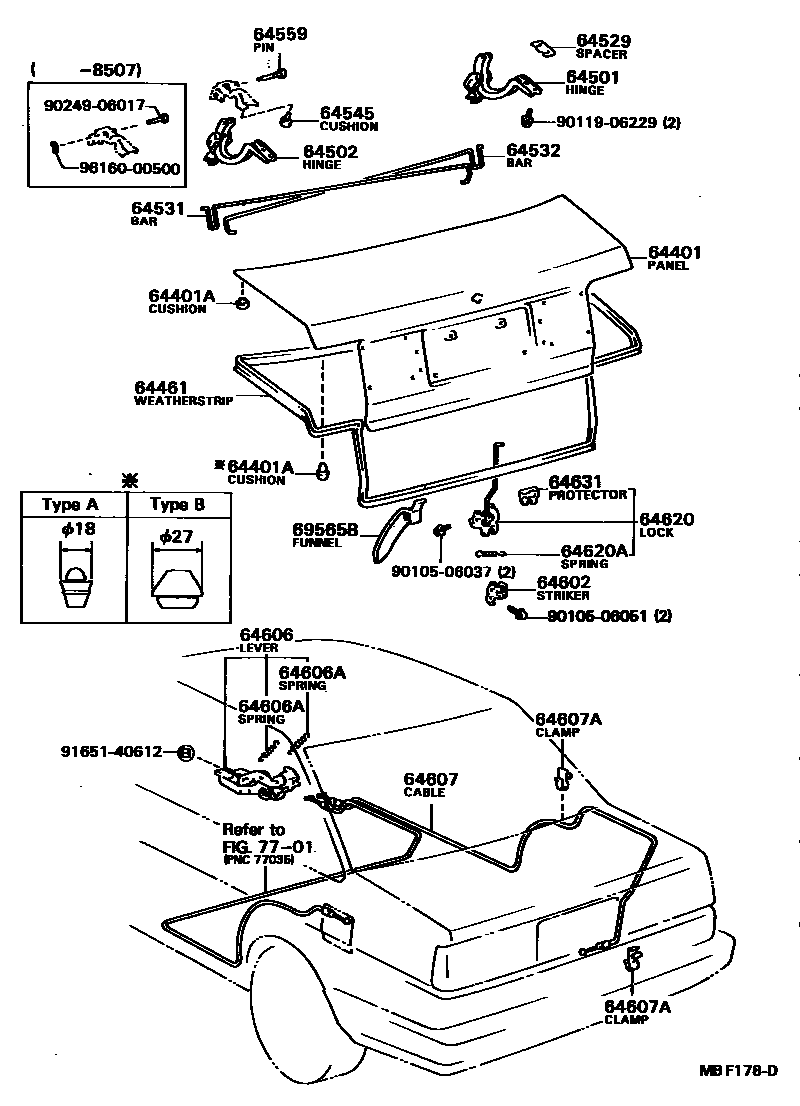

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-12680iAE81,82,CE80..SE,SR198305-198401

main64401-12681iAE81..SE198701-198704

main64401-12710iAE80,81,CE80..DX,SPD,XL198305-198505

main64401-12840iAE80,81,CE80..XL; AE81,82,CE80..GT,SE,SR198401-198505

SUPER

main64401-1A030iAE82..GT198505-198704

W/SPOILER

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-07003×2iAE8#,CE80,EE80..4D198305-198704

FR

main90541-09041×2iAE8#,CE80..4D198305-198505

RR,OD=18,TYPE A

main90541-19001×2iAE8#,CE80,EE80..4D198305-198704

RR,OD=27,TYPE B

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-12270iAE8#,CE80,EE80..4D198305-198704

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-12180iAE8#,CE80,EE80..4D198305-198704

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64510-12180iAE8#,CE80,EE80..4D198305-198704

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-20010×4iAE8#,CE80,EE80..4D198305-198704

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-12140iAE81,82,CE80..GT,SE,SR198305-198505

main64531-12170iAE80,CE80..DX,SPD,XL198305-198505

main64531-12190iAE82..GT198505-198704

W/SPOILER

main64531-12230iAE8#,CE80,EE80..4D198505-198704

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-12130iAE81,82,CE80..GT,SE,SR198305-198505

main64532-12160iAE80,CE80..DX,SPD,XL198305-198505

main64532-12180iAE82..GT198505-198704

W/SPOILER

main64532-12220iAE8#,CE80,EE80..4D198505-198704

64545CUSHION, LUGGAGE DOOR HINGE

main90541-07007×2iAE8#,CE80,EE80..4D198305-198704

64559PIN, LUGGAGE DOOR HINGE

main64559-12010×2iAE8#,CE80,EE80..4D198608

main64559-22010×2iAE8#,CE80,EE80..4D198507-198608

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64621-12060iAE8#,CE80,EE80..4D198305-198704

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-12060iAE80,CE80..DX,SE,XL; AE81,82..SE,SR,XL198305-198401

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09034×2iAE80,CE80..DX,SE,XL; AE81,82..SE,SR,XL198305-198401

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-12130iAE80,CE80..DX,SE,XL; AE81,82..SE,SR,XL198305-198401

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-12010×2iAE80,CE80..DX,SE,XL; AE81,82..SE,SR,XL198305-198401

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-12080iAE8#,CE80,EE80..4D198305-198704

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-08001iAE8#,CE80,EE80..4D198305-198704

64631PROTECTOR, LUGGAGE DOOR LOCK

main64631-12010iAE8#,CE80,EE80..4D198308-198704

69565BFUNNEL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69565-12010iAE8#,CE80,EE80..4D198305-198704

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9010506037

main90105-06037

9010506051

main90105-06051

9011906229

main90119-06229

9024906017

main90249-06017

9165140612

main91651-40612

9616000500

main96160-00500

26 parts on this diagram · 1 diagram in section
