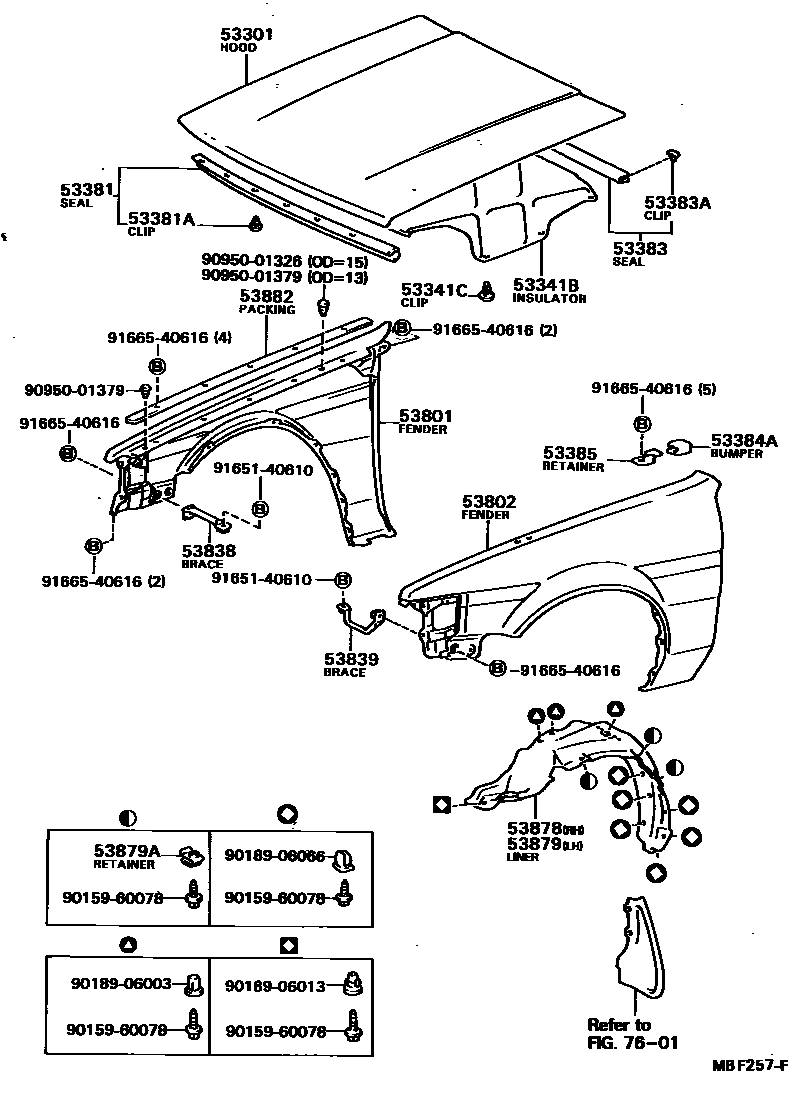

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-12430iAE8#,CE80198305-198505

main53301-12431iAE8#,CE80,EE80198505-198704

53341BINSULATOR, HOOD

main53341-12030iCE80198305-198704

53341CCLIP(FOR HOOD INSULATOR)

main90467-09041×11iCE80198305-198408

main90467-09050×11iCE80198408-198704

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-12130iAE8#,CE80,EE80198305-198704

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×7iAE8#,CE80,EE80198305-198704

53383SEAL, HOOD TO COWL TOP

main53383-12060iAE8#,CE80,EE80198305-198704

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08030×8iAE8#,CE80,EE80198305-198704

53384ABUMPER, FENDER TO HOOD

main53384-14030×4iAE8#,CE80,EE80198305-198704

53385RETAINER, HOOD, BUMPER

main53385-14010×2iAE8#,CE80,EE80198305-198704

RH

main53386-14010×2iAE8#,CE80,EE80198305-198704

LH

53801FENDER SUB-ASSY, FRONT RH

main53801-1A810iAE8#,CE80,EE80198305-198704

W/FENDER MIRROR

main53801-1A880iAE8#,CE80,EE80198305-198704

W/DOOR MIRROR

53802FENDER SUB-ASSY, FRONT LH

main53802-1A820iAE8#,CE80,EE80198305-198704

W/FENDER MIRROR

main53802-1A880iAE8#,CE80,EE80198305-198704

W/DOOR MIRROR

53838BRACE, FRONT FENDER, RH

main53835-12040iAE8#,CE80,EE80198305-198704

53839BRACE, FRONT FENDER, LH

main53836-12020iAE8#,CE80,EE80198305-198508

main53836-12021iAE8#,CE80,EE80198508-198704

53878LINER, FRONT FENDER, RH

main53875-12090iAE8#,CE80198305-198505

main53875-12130iAE8#,CE80,EE80198505-198704

53879LINER, FRONT FENDER, LH

main53876-12090iAE8#,CE80198305-198505

main53876-12120iAE8#,CE80,EE80198505-198704

53879ARETAINER, FRONT FENDER LINER

main53879-14010×6iAE8#,CE80,EE80198305-198704

53882PACKING, FRONT FENDER MAIN

main53882-12070×2iAE8#,CE80,EE80198305-198704

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9015960078

main90159-60078

9018906003

main90189-06003

9018906013

main90189-06013

9018906066

main90189-06066

9095001326

main90950-01326

9095001379

main90950-01379

9165140610

main91651-40610

9166540616

main91665-40616

26 parts on this diagram · 1 diagram in section
