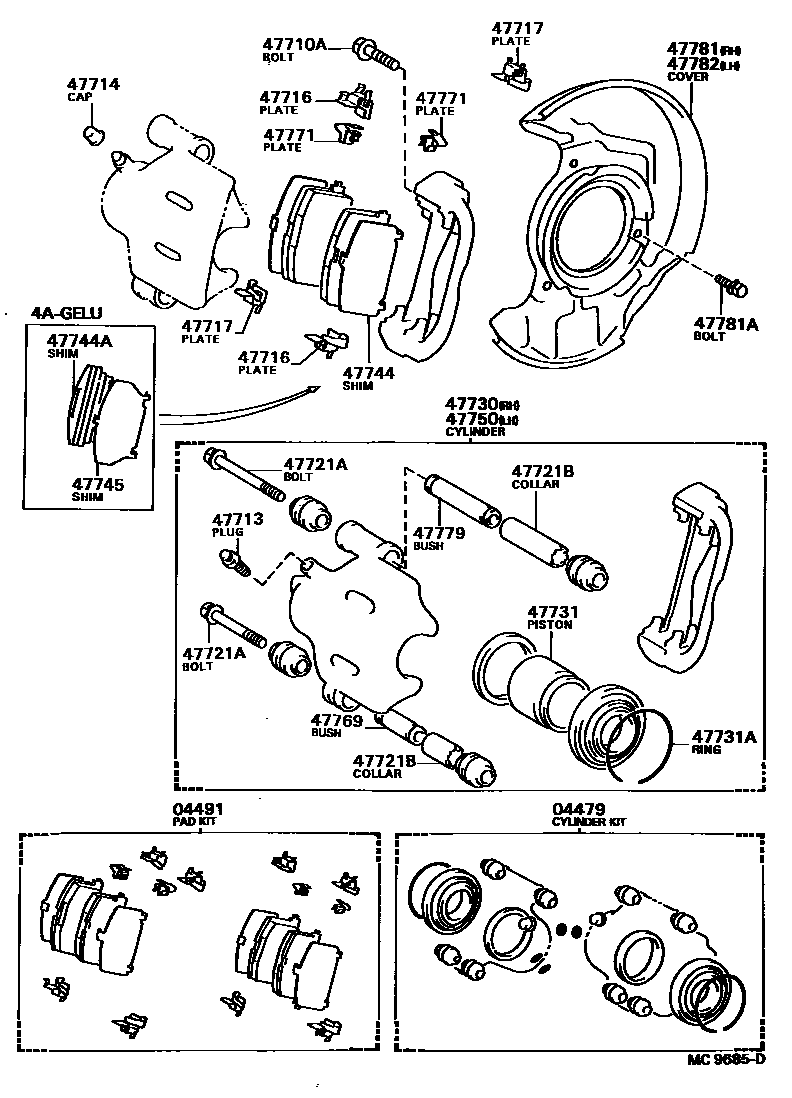

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-16020iAE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX198305-198501

main04479-16021iAE81,82,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198501-198704

main04479-32010iAE82..GT198410-198501

main04479-32011iAE82..GT198501-198704

04491PAD KIT, DISC BRAKE, FRONT

main04491-12170iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198305-198704

main04491-12270iAE82..GT198703-198704

main04491-17030iAE82..GT198410-198703

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040×4iAE8#,CE80,EE80198305-198704

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iAE8#,CE80,EE80198305-198704

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iAE8#,CE80,EE80198305-198704

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-32010×4iAE8#,CE80,EE80198305-198704

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-32010×4iAE8#,CE80,EE80198305-198704

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003×2iAE8#,CE80,EE80198305-198704

main90119-09004×2iAE8#,CE80,EE80198305-198704

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-15004×2iAE8#,CE80,EE80198305-198704

L=12

main90387-15005×2iAE8#,CE80,EE80198305-198704

L=22

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12170iAE82..GT198410-198608

main47730-12171iAE82..GT198608-198704

main47730-12200iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198305-198704

47731PISTON, FRONT DISC BRAKE

main47731-16020×2iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198305-198704

main47731-20070×2iAE82..GT198410-198704

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001×2iAE8#,CE80,EE80198305-198704

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-32010×4iAE8#,CE80,EE80198305-198704

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-32010×2iAE82..GT198410-198704

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-32010×2iAE82..GT198410-198704

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12170iAE82..GT198410-198608

main47750-12171iAE82..GT198608-198704

main47750-12200iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198305-198704

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-16010×2iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198305-198704

main47769-32010×2iAE82..GT198410-198704

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-32010×4iAE8#,CE80,EE80198305-198704

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010×2iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198305-198704

main47779-32010×2iAE82..GT198410-198704

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-20140iAE8#,CE80,EE80198305-198704

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227×6iAE8#,CE80,EE80198305-198704

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-20140iAE8#,CE80,EE80198305-198704

22 parts on this diagram · 2 diagrams in section
