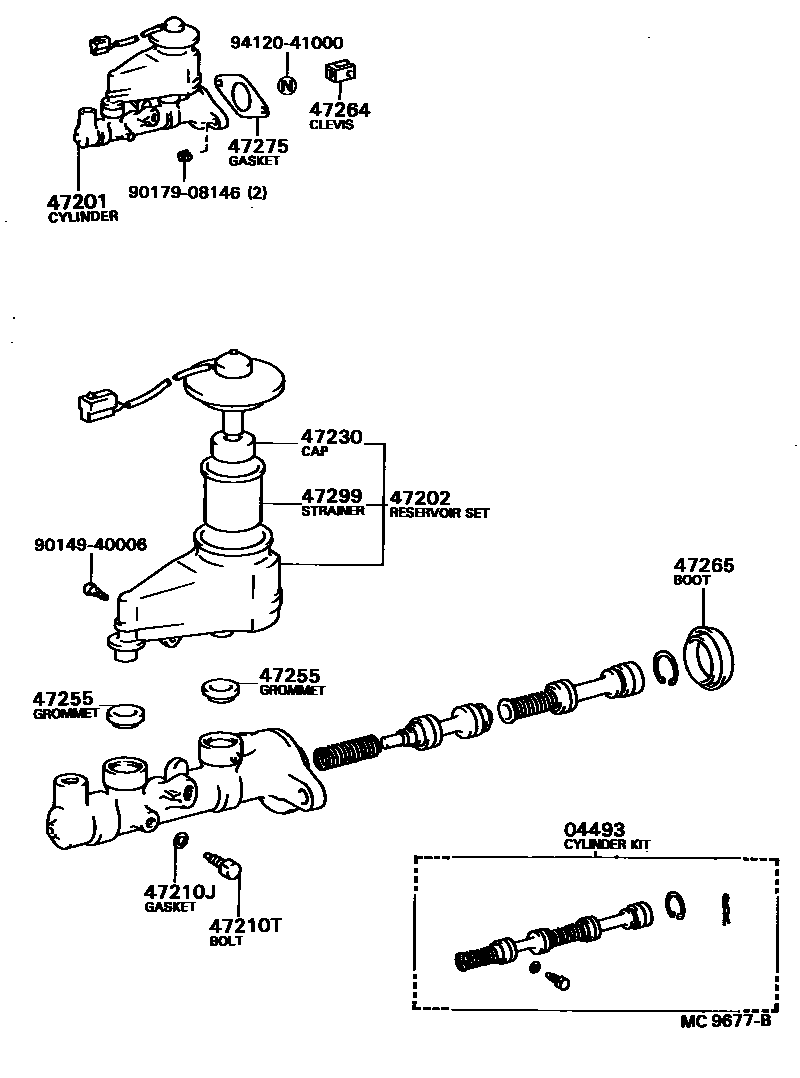

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-12130iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198305-198704

main04493-12140iAE82..GT198410-198704

sub04493-32010

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-12380iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198305-198704

main47201-12410iAE82..GT198410-198704

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-12340iAE8#,CE80,EE80198305-198704

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iAE8#,CE80,EE80198305-198704

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iAE8#,CE80,EE80198305-198704

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-12080iAE8#,CE80,EE80198305-198704

sub84460-20110

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-10010iAE8#,CE80,EE80198305-198704

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-10080iAE8#,CE80,EE80198305-198704

47265BOOT, MASTER CYLINDER

main47265-20050iAE8#,CE80,EE80198305-198704

47275GASKET, BRAKE MASTER CYLINDER

main47275-14010iAE8#,CE80,EE80198305-198704

sub47275-26010

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-32010iAE8#,CE80,EE80198305-198704

9014940006

main90149-40006

9017908146

main90179-08146

9412041000

main94120-41000

14 parts on this diagram · 1 diagram in section
