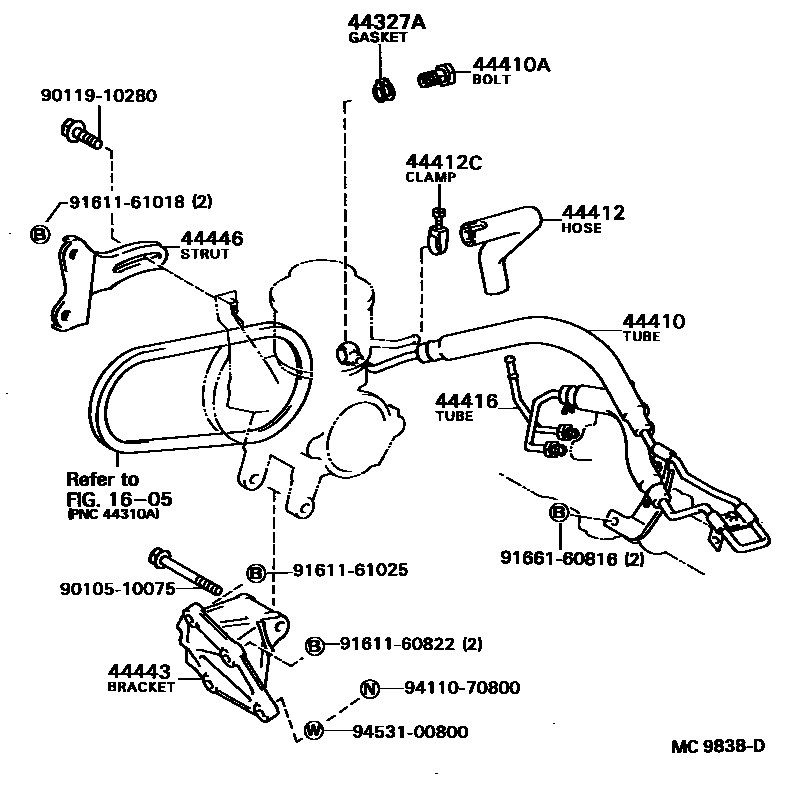

POWER STEERING TUBE

0001 1 0003 1 0004 1 0005 1

1605V-BELT

→ Go to FIG 16-05

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAE8#,CE80..SE,SR,SX,XL,ZX198305-198505

44410TUBE ASSY, PRESSURE FEED

main44410-12040iAE80,81..SE,XL198305-198307

TOYOTA

main44410-12041iAE82..SE198509-198704

TOYOTA

main44410-12090iCE80..SE,SX,XL198305-198505

main44410-12120iAE80,81..SE,XL198501-198503

KOYO

main44410-12150iAE82..GT198410-198704

main44410-12210iEE80..DX,XL198505-198508

main44410-12211iEE80..DX,XL198508-198704

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iAE8#,CE80..DX,SE,XL,ZX198505-198704

44412HOSE, RETURN

main44412-12110iAE80,81..SE,XL198501-198503

KOYO

main44412-12120iAE8#..SE,SR,XL198305-198505

TOYOTA

44412CCLAMP(FOR RETURN HOSE)

main90460-01001×2iAE8#..SE,SR,SX,XL,ZX198305-198505

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-12130iAE80,81..SE,XL198501-198503

KOYO

main44416-12140iAE8#..SE,SR,XL198305-198505

TOYOTA

44443BRACKET, PUMP

main44443-10010iEE80..DX,XL198505-198704

main44443-12050iAE8#..SE,SR,SX,XL,ZX198305-198505

main44443-12060iAE82..GT198410-198704

44446STRUT, ADJUSTING

main44446-10010iEE80..DX,XL198505-198704

main44446-12030iAE8#..SE,SR,SX,XL,ZX198305-198505

9010510075

main90105-10075

9011910280

main90119-10280

9161160822

main91611-60822

9161161018

main91611-61018

9161161025

main91611-61025

9166160816

main91661-60816

9411070800

main94110-70800

9453100800

main94531-00800

17 parts on this diagram · 4 diagrams in section
