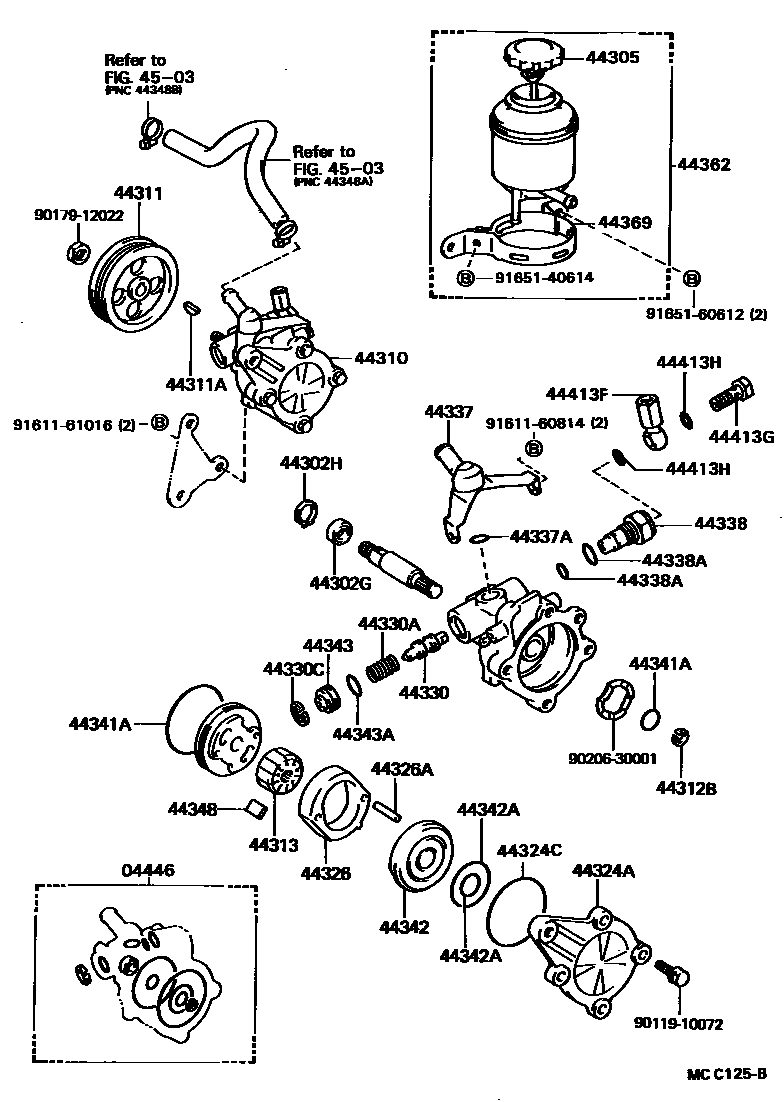

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0004 1 0005 1

04446GASKET KIT, POWER STEERING PUMP

main04446-12020iAE8#,CE80198505-198704

main04446-12030iEE80..DX,XL198505-198704

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-18007iAE8#,CE80..GT,SE,SR,SX,XL,ZX198305-198505

main90311-18008iEE80..DX,XL198505-198704

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-32001iEE80..DX,XL198505-198704

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-30020iAE8#..SE,SR,SX,XL,ZX198305-198505

main44305-32010iCE80,EE80..DX,SE,XL198505-198704

44310PUMP ASSY, VANE

main44320-12050iCE80..SE,SX,XL198305-198505

main44320-12051iCE80198507-198704

main44320-12110iAE8#..SE,SR,SX,XL,ZX198305-198505

main44320-12111iAE8#..DX,SE,XL,ZX198507-198704

main44320-12120iAE82..GT198410-198507

main44320-12121iAE82..GT198507-198704

main44320-12130iEE80..DX,XL198505-198704

44311PULLEY, VANE PUMP

main44311-10010iEE80..DX,XL198505-198604

main44311-10011iEE80..DX,XL198604-198704

main44311-12030iCE80..SE,SX,XL198305-198505

main44311-12040iAE8#..SE,SR,SX,XL,ZX198305-198505

main44311-12070iAE82..GT198410-198704

44311AKEY, VANE PUMP PULLEY

main90280-05008iAE8#,CE80..GT,SE,SR,SX,XL,ZX198305-198505

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iAE8#,CE80..GT,SE,SR,SX,XL,ZX198305-198505

44313ROTOR, VANE PUMP

main44313-12010iAE8#,CE80,EE80..DX,GT,SE,XL,ZX198505-198704

main44313-12020iAE8#,CE80,EE80..DX,GT,SE,XL,ZX198505-198704

main44313-12030iAE8#,CE80,EE80..DX,GT,SE,XL,ZX198505-198704

main44313-12040iAE8#,CE80..GT,SE,SR,SX,XL,ZX198305-198505

main44313-12050iAE8#,CE80..GT,SE,SR,SX,XL,ZX198305-198505

44324AHOUSING, PUMP, REAR

main44324-10010iEE80..DX,XL198505-198704

main44324-12030iAE8#,CE80..GT,SE,SR,SX,XL,ZX198305-198505

main44324-12031iAE8#,CE80198507-198704

44324CRING, O(FOR PUMP HOUSING REAR)

main90301-52001iAE8#,CE80198505-198704

main90301-63002iEE80..DX,XL198505-198704

44326RING, CAM(FOR VANE PUMP)

main44325-12060iEE80..DX,XL198505-198704

main44325-12070iEE80..DX,XL198505-198704

main44325-12080iEE80..DX,XL198505-198704

main44325-12090iEE80..DX,XL198505-198704

main44325-12100iEE80..DX,XL198505-198704

main44325-12110iAE8#,CE80..GT,SE,SR,SX,XL,ZX198305-198505

main44325-12120iAE8#,CE80..GT,SE,SR,SX,XL,ZX198305-198505

main44325-12130iAE8#,CE80..GT,SE,SR,SX,XL,ZX198305-198505

main44325-12140iAE8#,CE80198505-198704

main44325-12150iAE8#,CE80..GT,SE,SR,SX,XL,ZX198305-198505

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iAE8#,CE80..GT,SE,SR,SX,XL,ZX198305-198505

main90250-04049iAE8#,CE80..GT,SE,SR,SX,XL,ZX198305-198505

main90250-05008iEE80..DX,XL198505-198704

main90250-05017iEE80..DX,XL198505-198704

44330VALVE ASSY, FLOW CONTROL

main44330-12070iAE8#,EE80..DX,SE,XL,ZX198505-198704

main44330-12080iAE8#..SE,SR,SX,XL,ZX198305-198505

main44330-12090iAE8#..SE,SR,SX,XL,ZX198305-198505

main44330-12100iAE8#,EE80..DX,SE,XL,ZX198505-198704

main44330-12110iAE8#..SE,SR,SX,XL,ZX198305-198505

main44330-12120iAE8#..SE,SR,SX,XL,ZX198305-198505

main44330-12130iCE80..SE,SX,XL198305-198505

main44330-12140iCE80198505-198704

main44330-12150iCE80198505-198704

main44330-12160iCE80198505-198704

main44330-12170iCE80..SE,SX,XL198305-198505

main44330-12180iCE80198505-198704

main44330-14010iAE82..GT198410-198704

main44330-14020iAE82..GT198410-198704

main44330-14030iAE82..GT198410-198704

main44330-14040iAE82..GT198410-198704

main44330-14050iAE82..GT198410-198704

main44330-14060iAE82..GT198410-198704

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iAE8#,CE80,EE80..DX,GT,SE,XL,ZX198507-198704

main90501-12447iAE8#,CE80..GT,SE,SR,SX,XL,ZX198305-198505

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iAE8#,CE80..GT,SE,SR,SX,XL,ZX198305-198505

main96151-02200iEE80..DX,XL198505-198704

44337UNION, POWER STEERING SUCTION PORT

main44337-12010iCE80..SE,SX,XL198305-198505

main44337-12020iAE82..GT198410-198704

main44337-12040iEE80..DX,XL198505-198704

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-12003iCE80..SE,SX,XL198305-198505

main96711-19013iEE80..DX,XL198505-198704

44338UNION, PRESSURE PORT

main44308-12020iCE80..SE,SX,XL198305-198505

main44308-12022iCE80198507-198704

main44308-12030iAE8#..SE,SR,SX,XL,ZX198305-198505

main44308-12032iAE8#..DX,SE,XL,ZX198507-198704

main44308-12041iAE82..GT198410-198507

main44308-12042iAE82..GT198507-198704

main44308-32011iEE80..DX,XL198505-198507

main44308-32013iEE80..DX,XL198507-198704

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iAE8#,CE80..GT,SE,SR,SX,XL,ZX198305-198505

main90301-22001iEE80..DX,XL198505-198704

main96711-19014iEE80..DX,XL198505-198704

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90301-21001iEE80..DX,XL198505-198704

INNER

main90301-25001iAE8#,CE80..GT,SE,SR,SX,XL,ZX198305-198505

INNER

main90301-52001iAE8#,CE80..GT,SE,SR,SX,XL,ZX198305-198505

OUTER

main90301-56002iEE80..DX,XL198505-198704

OUTER

44342PLATE, VANE PUMP SIDE, REAR

main44342-12020iAE8#,CE80198505-198507

main44342-12021iAE8#,CE80198507-198704

main44342-22010iEE80..DX,XL198505-198704

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-13004iEE80..DX,XL198505-198704

INNER

main90301-30004iEE80..DX,XL198505-198704

OUTER

main90301-52001iAE8#,CE80..GT,SE,SR,SX,XL,ZX198305-198505

44343SEAT, FLOW CONTROL SPRING

main44343-12010iAE8#,CE80..GT,SE,SR,SX,XL,ZX198305-198505

main44343-12030iEE80..DX,XL198505-198704

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96711-19014iAE8#,CE80..GT,SE,SR,SX,XL,ZX198305-198505

main96711-19019iEE80..DX,XL198505-198704

44348PLATE, VANE PUMP

main44345-12010×10iAE8#,CE80..GT,SE,SR,SX,XL,ZX198305-198505

main44345-12020×10iAE8#,CE80,EE80..DX,GT,SE,XL,ZX198505-198704

main44345-12030×10iAE8#,CE80,EE80..DX,GT,SE,XL,ZX198505-198704

main44345-12040×10iAE8#,CE80..GT,SE,SR,SX,XL,ZX198305-198505

main44345-12050×10iAE8#,CE80,EE80..DX,GT,SE,XL,ZX198505-198704

44362RESERVOIR, OIL(FOR VANE PUMP)

main44306-12050iAE8#..DX,SE,XL,ZX198505-198704

main44360-12020iCE80,EE80..DX,SE,XL198505-198704

44369BRACKET, OIL RESERVOIR, NO.1

main44369-20030iCE80..SE,SX,XL198305-198505

44413FTUBE, PRESSURE FEED, NO.2

main44413-12050iEE80..DX,XL198505-198704

44413GBOLT, UNION(FOR PRESSURE FEED TUBE NO.2)

main90401-16005iEE80..DX,XL198505-198704

44413HGASKET(FOR PRESSURE FEED TUBE NO.2)

main90430-16242×2iEE80..DX,XL198505-198704

4503POWER STEERING TUBE

→ Go to FIG 45-03

9011910072

main90119-10072

9017912022

main90179-12022

9020630001

main90206-30001

9161160814

main91611-60814

9161161016

main91611-61016

9165140614

main91651-40614

9165160612

main91651-60612

39 parts on this diagram · 4 diagrams in section
